Plastic Bucket Injection Molding Machine

Haichen is a manufacturer of plastic bucket making machine.
Use this plastic bucket injection molding machine with different buckets injection moulds, it can produce different shapes of bucket like:
-5 gallon water buckets
-trash bin
-plastic paint bucket
-garbage bin
-water bin
-plastic buckets with handles
-plastic buckets with lids

Click Here
plastic bucket making machine
plastic bucket making machine

Haichen success case for plastic bucket making machine

A plastic bucket is a type of plastic container used for various purposes, including construction, housing, transportation, and storage of food and beverages.
Haichen has been producing plastic bucket making machines for more than 10 years. We would like to share our experience of the plastic water bucket manufacturing process from selecting suitable plastic bucket raw materials to how to make plastic buckets in a complete manufacturing process.

Plastic bucket
Bucket material: HDPE
Bucket weight: 598g
Bucket size:top diameter310mm
bottom diameter260mm,
height: 265mm
Machine model: HCK310
Eject:by hand or robot

Click Here

Plastic bucket

Bucket material: HDPE
Bucket weight: 598g
Bucket size:top diameter310mm
bottom diameter260mm,
height: 265mm
Machine model: HCK310
Eject:by hand or robot

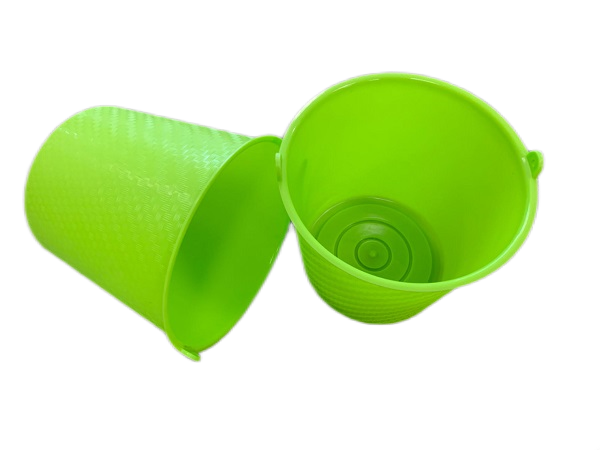

10 gallon bucket

surface rattan weave pattern
Bucket material：PP
Bucket size: top 280mm,
bottom200mm, height230mm
Bucket Weight:346g
Machine model: HCK280
Eject:by hand or robot

Water bucket

Bucket material：PP
Bucket size: top diameter270mm,
bottom diameter185mm,
height: 265 mm
Bucket Weight: 388g
Machine model: HCK280
Eject:by hand or robot

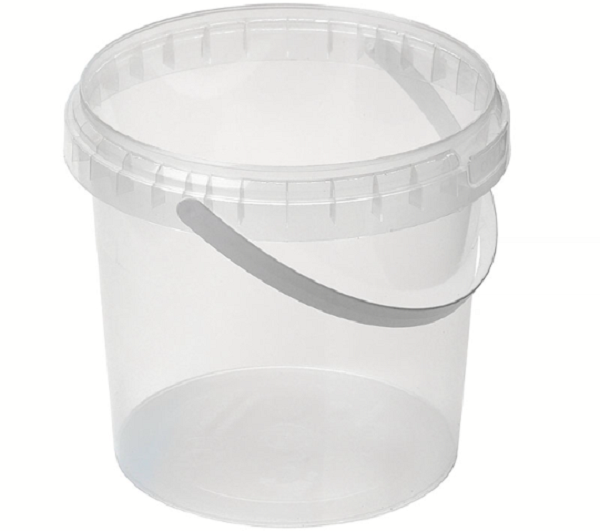

Small plastic buckets

Bucket material: PP
Bucket size: diameter120mm,
height 115mm
Thickness: 0.7mm
Bucket weight: 40g
Machine model: HCK280

4 steps in the plastic bucket production process

The plastic bucket raw materials HDPE or PP are fed into the bucket-making machine through a hopper, and melting plastic materials in the barrel. After heating the plastic material to the desired temperature, the hot plastic (liquid) leaves the heating chamber through a nozzle and reaches the bucket mold cavity (in the shape of the bucket you need). the molten plastic is then injected into a mould where it is clamped under injection pressure. The mold is kept closed for a specific cooling time to allow the plastic to solidify and form the shape of the bucket.  Once the plastic has cooled, the plastic hardened solidified, the mould is opened and the newly formed plastic bucket is ejected out of the mould.

Normally there are 4 steps to produce a plastic bucket:

  • Step 1: Plasticizing the raw material
  • Step 2: Clamping the bucket mold
  • Step 3: Injection the material into a water bucket mold
  • Step 4: Cooling and Demolding

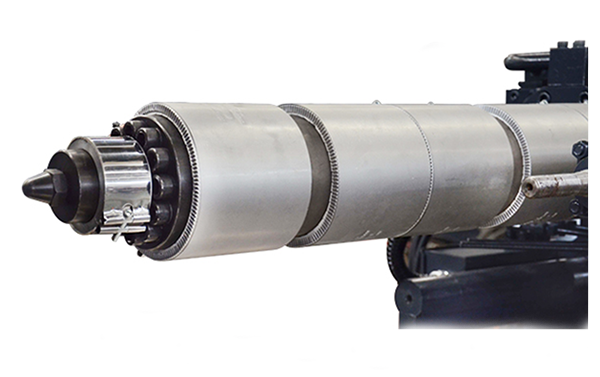

injection molding machine screw

Step 1: Plasticizing the raw material

The main plastic bucket material polypropylene (PP) or high-density polyethylene (HDPE) is fed into the high-temperature barrel of the plastic bucket injection molding machine and melted into a viscous melt under the action of the heating element.

The plastic bucket injection molding machine squeezes the plasticized molten plastic from the feeding port into the front end of the barrel through the thrust of the screw.

Step2: Clamping the bucket mold

The plastic bucket injection molding machine’s clamping unit is used to ensure that the plastic bucket mould remains tightly closed during the plastic bucket injection process to prevent the molten plastic from leaking or the mold from separating. It locks the plastic bucket mould by applying sufficient force to ensure the plastic bucket molding quality.

Step 3: Injection the material into bucket mold

The molten plastic bucket material is injected into the closed bucket mold cavity through the nozzle under high pressure. The injection speed and time are controlled according to the plastic bucket product design requirements to ensure that the bucket plastic is fully fused.

plastic bucket

Step 4: Cooling and Demolding

The plastic bucket mould remains closed, and the molten plastic cools and solidifies in the mold to form the required plastic buckets. The cooling time depends on the type of plastic bucket and the complexity of the buckets and is usually cooled by the water system. After cooling, the mould opens and the ejector mechanism ejects the finished plastic buckets from the mould.

For ejection, when producing some deep type of plastic water bucket, must be carefully to calculate the plastic bucket injection machine’s open stroke. The distance should be at least double as plastic bucket’s deep/height. Otherwise, it’s hard to fetch the bucket from the mold.

When plastic buckets with side holes or side depressions on the plastic part, it must have a core or slider that can move laterally. In these cases, the movable mold will move down a certain distance, and then the inclined surface of the bent pin fixed on the fixed mold plate will force the slider to pull the core laterally. Then it can ensure these plastic buckets smoothly demould from the mould.

Haichen machine user of plastic bucket

Customers select our Haichen plastic bucket making machine with serieS which can help save 20-80% energy and ring economic benefit

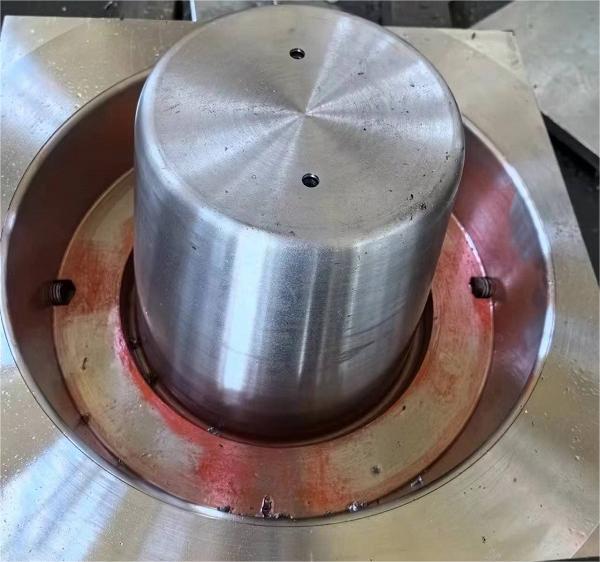

bucket mould

The customer bought one our Haichen plastic bucket making machine three years ago.Our competitive bucket machine price help him save cost and get more profit

This client select HDPE(high-density polyethylene)as raw material to produce his bucket.
As HDPE is a durable, non-reactive thermoplastic, it’s more suitable to produce big trash bin.

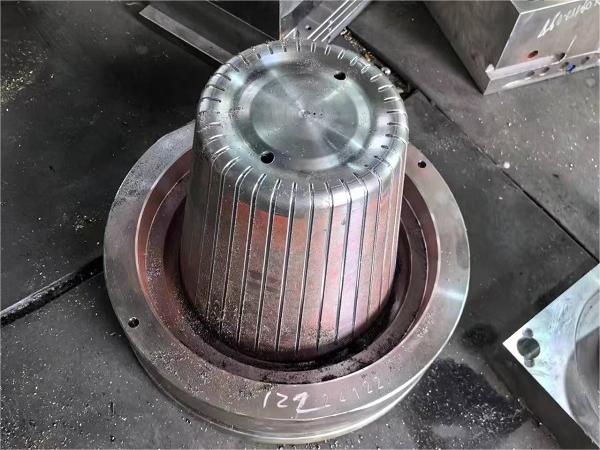

This is trash bin mould, to produce this deep type of rubbish bin trash can, must be carefully to calculate the open stroke. The distance should be at least double as height. Otherwise, it’s hard to fetch the bucket from the mould.

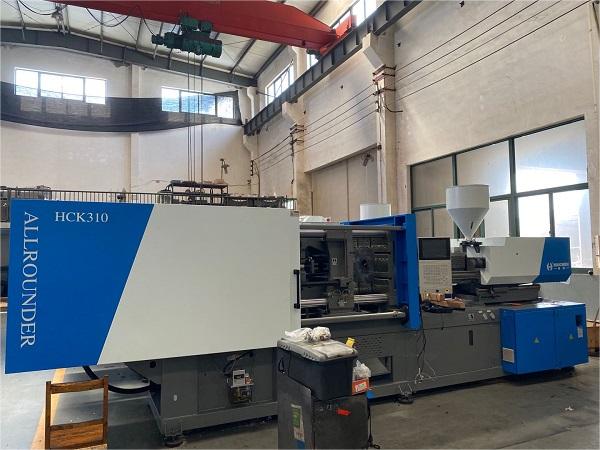

Haichen HCK310

Haichen HCK310 plastic bucket making machine is hot sale in central Asian countries.

5 gallon buckets
produced by our 310-ton plastic bucket making machine. Space between tie bars 670x620mm

3gallon bucket
230ton Haichen plastic bucket making machine with this mould

plastic bucket

5 gallon bucket,
with one cavity mould,
use cold runner manner

Click Here

One-stop solution for plastic bucket making

Mold selection and plastic bucket injection molding process. Machine choosing for plastic bucket and garbage bin. We can supply the solution for plastic bucket injection molding production.

20 years +

Haichne has 20 years of experience in plastic bucket production. Especially to the plastic bucket and garbage bin design, plastic bucket molds, plastic bucket and garbage bin injection molding machines…

21 language

Haichen plastic bucket injection machine with 21 different languages and one display screen. Easy operation for producing the plastic garbage bin

On line support

We will support technical service online, which one has more than 10 years of experience in plastic parts of plastic garbage bin and bucket making production. Any problem we can check online for the plastic bucket and garbage bin injection molding process.

Why choose Haichen plastic bucket injection molding machine?

Haichen is a plastic bucket and garbage bin injection molding machine manufacturer

HAICHEN is a cooperation with Italy technologies specialized in the production of high-grade plastic injection molding machines. Our company is located in Ningbo, a very convenient transportation location. We have several R&D personnel and cooperate with a group of high-tech enterprises.

It mainly produces high-precision injection molding machines with clamping force ranging from 110ton to 1850ton. The injection molding machine has a high-rigidity structure and is equipped with imported hydraulic & electrical elements. Used bi-metal screw with mixing head in order to have excellent plasticizing performance and be suitable for various engineering plastic injection molding and the user’s special order are available.

We have rich experience of producing plastic bucket making machine. With our plastic injection molding machine and mould, you can manufacture different kinds of buckets: 5-gallon buckets, water buckets, garbage bins, trash bins, plastic paint buckets, etc. When you have any demand, feel free to contact us. We will supply the most suitable plastic bucket making machine solution according to your specific demand.

Click Here

Excellent screw and barrel

Excellent screw with good plasticizing and mixing properties. Professional design, good wear resistance and fast plasticizing speed. Suit for sunglass

controller

Smart controller

The new generation computer control system touch screen responds faster, is more convenient, and has high scalability, ensuring that the machine operates more stably and with higher precision.

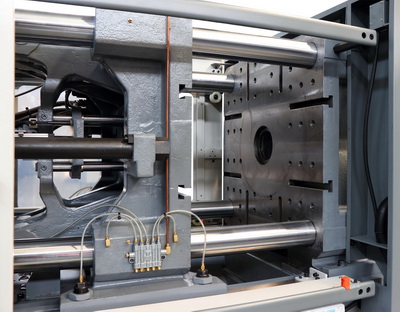

Excellent clamping unit

The template feet are enlarged and the large-area contact ensures smooth operation.

injection unit

Advanced injection system

Perfect injection speed, faster response and low friction during injection, ensuring energy saving. Linear guide features.

Clamping structure

Double rod injection structure,makes more stable and preciser injection

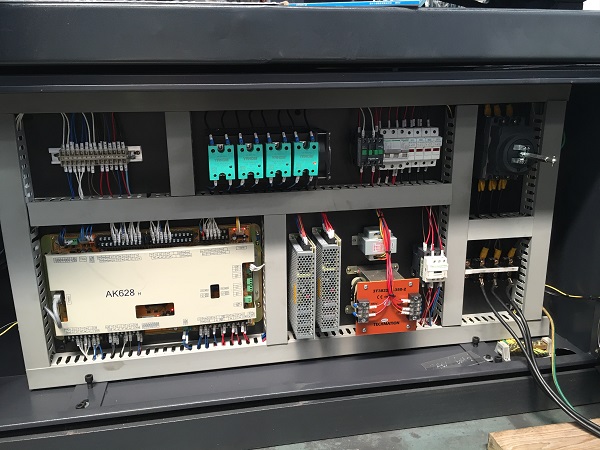

Electrical componets

Use international famous electrical component brand.Electrical fuses are safe and reliable

Haichne has 20 years of experience!

Haichen injection molding machine suit for plastic buckets and garbage bins.

The machine control is easy with 21 different languages on the control screen.

Haichen is a manufacturer of injection molding machines. We supply the machines from 30 ton to 3000 ton. The clamping force is from 3300KN to 30000KN.

Get Free Solution

    Haichen plastic bucket injection molding machine for export

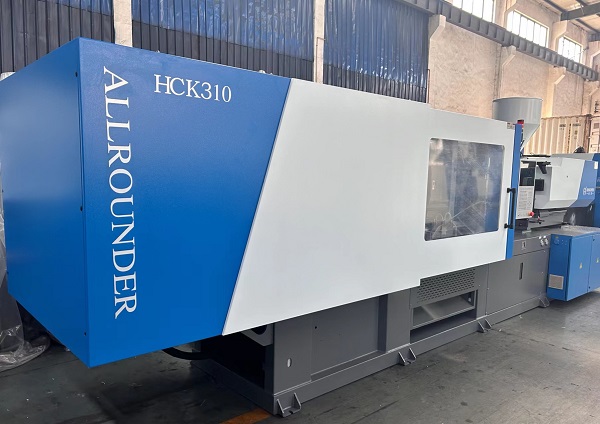

    Haichen HCK310 injection molding machine

    310 ton machine loading

    For economic production of bucket solution, our 310ton plastic bucket making machine is better choice

    HCK150 Haichen injection molding machine

    280 ton machine loading

    280 ton plastic bucket making machine, open stroke 400mm is suitable to produce small plastic buckets

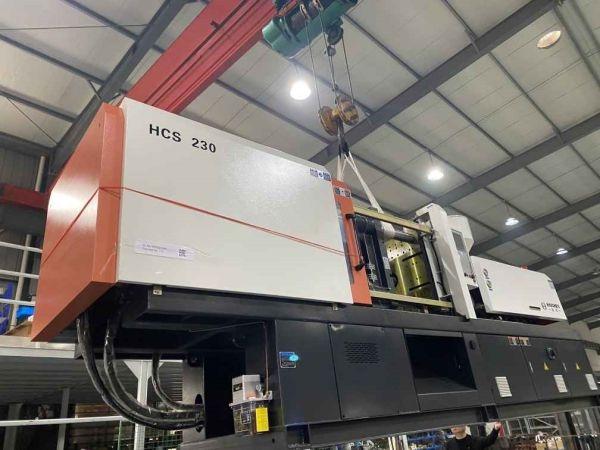

    230 ton machine loading

    230ton plastic water bucket injection molding machine of servo series-energy saving

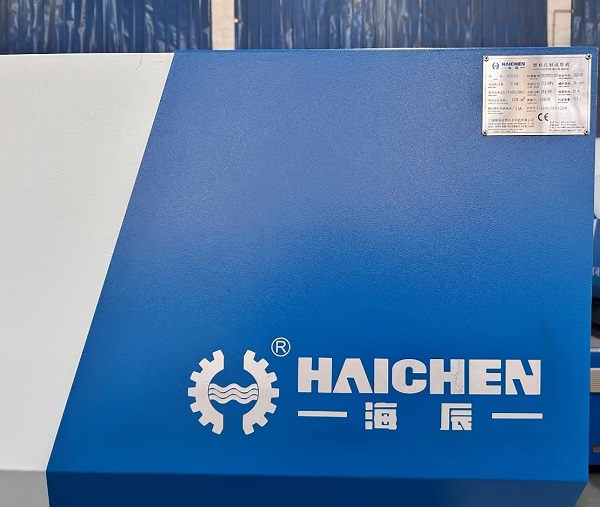

    Haichen HCK310 injeciton molding machine

    310 ton machine loading

    310ton plastic bucket making machine with CE certificate

    24injection molding machine

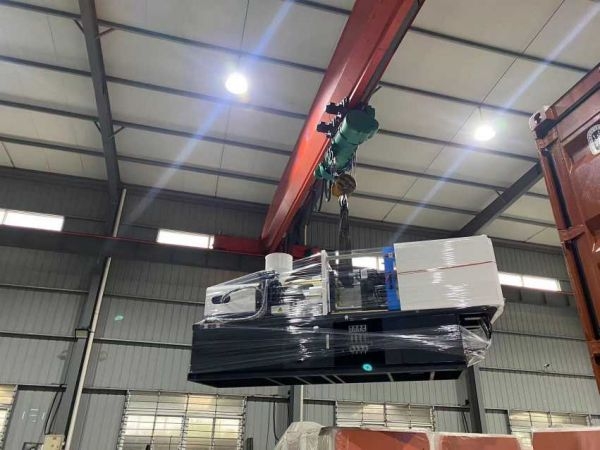

    280 ton machine loading

    Haichen 280ton plastic bucket injection machine. With 2800KN clamping force, 620x570mm space between tie bar, 560mm open stroke

    600 Ton Machine Export

    Haichen Machinery Overseas Business Haichen HCK600 bucket injection molding machine with bucket mold.

    1800KN Machine Shipment

    180 tons injection molding machine machine export Haichen HCK180 ton plastic bucket injection molding machine is shipped to South America.

    220 Ton molding machine

    HCK220ton paint bucket making machine loading process

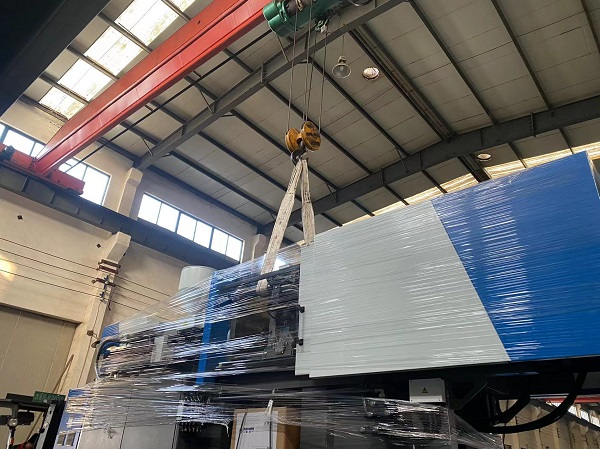

    HCK280 Machine Loading

    Haichen 280ton plastic bucket injection machine. With 2800KN clamping force, 620x570mm space between tie bar, 560mm open stroke

    HCK150 Haichen injection molding machine

    150ton plastic bucket making machine

    150ton plastic bucket making machine, open stroke 400mm is suitable to produce small plastic buckets

    client reviews

    What People Think About Us

    Some factories produce plastic bucket that choose Haichen injection molding machines.

    Click Here

    Any other questions you’d like to ask us?

    Haichen focuses on the global construction market and provides our clients with products suitable for the local market:

    • Any plastic bucket production you are interested?
    • Plastic bucket mold design and production.
    • Plastic bucket machines warranty in detail.
    • You can download a comprehensive brochure for plastic buckets.
    • The plastic bucket production line details, like the auxiliary: chiller, autoloader, crusher…
    • Fast delivery for plastic bucket injection molding machine.

    Talk with our sales

    Click Here

    SEND US AN EMAIL

    [email protected]

    Contact Us

    Haichen has lots of users now who are producing plastic buckets. They have used Haichen’s plastic bucket injection molding machine for more than 15 years. If you are interested in the water bucket machine, just contact us freely.
