E- Series Injection Molding Machine

Haichen E series injection molding machine is the standard machine with energy energy-saving system.
E series machine suit for PET preform injection molding, PVC pipe fitting injection molding, PC chair injection molding, PP raw material injection molding…
The machine tonnage from 110 ton to 1200 ton.
Haichen manufactures and wide range of services related to standard plastic molding machines.
At Haichen, we specialize in the manufacture, sale, and maintenance of the E series standard injection molding machine. This type of machine is widely recognized as the most commonly used injection molding machine in the industry. It operates using a hydraulic pump and a servo motor, ensuring efficient and precise performance. Our E series standard plastic injection molding machine is specifically designed to cater to the needs of various industries. It is particularly suitable for the production of electronic parts, connectors, power cords, headphone cords, headphone plugs, headphone sockets, and other similar products. With its versatility and reliability, our machine guarantees superior quality output for your manufacturing requirements. Furthermore, we take pride in our commitment to providing exceptional maintenance services for our machines. We understand the importance of keeping your production line running smoothly and efficiently. Therefore, our team of skilled technicians is readily available to diagnose and resolve any issues that may arise, ensuring minimal downtime and optimal performance of your machinery.

How to choose the machine clamping force ?

How to calculate clamping force for injection molding machine

Clamping force formula：F = P × S

P= The pressure inside the mold
S= Product Projected Are

It is hard for the user to calculate the clamping force of the injection molding machine. Haichen with enough experience to choose the right injection molding machine for different kinds of products.

What is servo injection molding machine

Servo energy-saving injection molding machine is an injection molding equipment driven by servo motors.
Its main feature is to replace traditional hydraulic systems with servo motors, achieving precise control of pressure and flow in various process sections of the injection molding machine (such as mold closing, injection molding, pressure holding, mold opening, etc.), thereby achieving energy conservation and improving production efficiency.
The working principle of a servo energy-saving injection molding machine is that the pressure and flow rate of the injection molding machine are processed by a computer and driver program to achieve dual closed-loop control of the pressure and flow rate of the hydraulic system.
Servo energy-saving injection molding machines have the following significant advantages:

Efficient and energy-saving；
Precise control；
Quick response；
Good stability；
Environment protection；

HCK600 Haichen injection molding machine

What is servo injection molding machine

CLAMPING UNIT

Clamping units are simulated by computer simulation, and the overall optimization of sports and dynamic characteristics

Adopt ramp-row five support-point double crank web structure mold board designed by the computer parameters

After the limited element analysis, innovated fixed platen with hollow spherical structure, box bracket splint and platen conjoined structure

Make sure the high rigidity and high reliability of the clamping component，the opening and closing mold is stable, the clamping mold is reliable

Space between tie bars is bigger, can fix bigger mould.

Featured

Ramp-row five support-point double crank web structure mold board designed by the computer parameters optimizing
Mechanism, electronic & hydraulic triple interlock safety protection function
Sensitive low-voltage mold protection device
Multiple hydraulic ejecting type
Multiple stages control for mold opening and clamping pressure speed, positioning control
Hydraulic motor-driving gear mold adjustment
Special technique treatment , reliable strength for tie-bar
Automatic centralized lubrication system-Mold open and clamping, ejecting by transducer
Automatic mould adjustment function-Robotic pincher mechanical installation positioning interface
Core pulling system is suitable for the complicate structure mould

INJECTION UNIT

Injection unit use double-cylinder, double-guided support.Different screws are for customer’s option and are able to meet molding requirement of a variety of plastic materals.The use of high-performance and low-speed torque directly drives hydraulic motors.

Featured

The high-torque hydraulic motors offer a stable plasticizing capacity, high-precision electronic device position detection enable accurate measurement
Multi-injection speed and pressure and multi-level holding pressure settings, switch from the injection time, location, pressure control to ensure the quality of molding.
Multi-level back-pressure of pre-plastic and pre-speed are computer-controlled, anti-drooling and automated auto purge
Expected to prevent cold-start function to ensure that the screw, barrel will not be harmed. Stability of the injection unit.
With PID temperature control, precise temperature control of barrel.
There are three or four screws and barrels with optimal design, respectively, nitride, hard plating, dual-metal, which is suitable for different processes of a variety of plastics.Two-guided bar supports, double-balanced rapid injection

HYDRAULIC SYSTEM

Hydraulic unit consist of world famous brands oil pump and control valves with more outstanding performance of pressure supporting,

Ensure effectively the machine accuracy, reliability, stability, and durability and low noise environmental features.

Hydraulic unit consist of world famous brands oil pump and control valves with more outstanding performance of pressure supporting,Ensure effectively the machine accuracy, reliability, stability, and durability and low noise environmental features.

Hydraulic oil cooling device

High-performance imported hydraulic unit with optimizing allocation
The fuel tank has a big opening hole so can be cleaned easily
Hydraulic valve hydraulic system of the machine, quick response balance
Double proportional valve control pressure and flow.

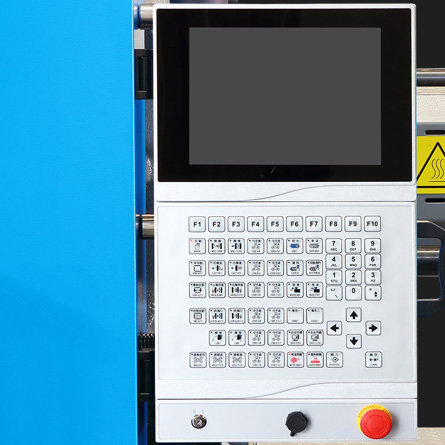

SPECIAL COMPUTER CONTROLLER FEATURES

Special control the computer for plastic injection machine use, control and display relatively independent with high reliability
Technical parameters pre-setting and storage function
Parameters information protection function
Charging barrel temperature deviation automatic adjustment function
Abnormal alarm function
Front and back door emergency stop button
Real-time monitoring can display the condition of each motion
Electrical motor safety protection device
Robotic pincher interface
Cutting photoelectric switch
System hardware I/O detection function
Charging barrel temperature is controlled accurately by computer setting and PID closed-loop manner
Screen protection function, prolong the life of screen using
Full-enclosed electrical-controlled box, electrical components are neatly arranged, never interfere with each other

Advantage of special electric and hydraulic controlled servo system

Compared with traditional hydraulic system

can save power 15-70%;
can improve efficiency 10-50%;
repetition and precision is noticeably improved2%

Compared with frequency more than8%

can save power more than8%,
can improve efficiency more than 20%;
precision is noticeably improved 2%

Compared with full electric control system

can save investment more than 50%,
Power saving, efficiency and precision are almost 90%of full electric control system.

CHARACTERISTICS OF SERVO MACHINE

Energy Saving

Efficient permanent magnet -reluctance motor
Perfect self-adaptation and motor control algorithm
Torque control based on injection process
Save 70% energy

Precision

High precision and speed signal feedback system
Pressure and flow double closed loop control system
Suitable software control for in injection process demand
Product repeatability and production precision are improved 2%

Efficiency

Low (rotary) inertia motor
Instantaneous overload capacity of three times more
Max 2500r/m (part of motors)
Processing time is reduced 15%

Durability

Design and test of cars’ level
Advanced control algorithm reduces impact
Extend 20% lift time

PLASTIC INJECTION MOLDING MACHINE CONFIGURATION

Name	Brand
Controller	EST
Pump	High-tech
Directional Valve	Yuken
Proportional Valve	Taiwan HNC
Hydraulic Motor	Dan dun
Electric Equipment	Schneider Electric
Position Transducer	Gefran
Lubrication	Automatic/Herg
Seal Ring	U.K. HALLITE
Screw &Barrel	China
Platen	T-slot
NINGBO HAICHEN MACHINERY CO., LTD

DEVICE CONFIGURATION

Injection Unit

Double cylinder injection system

High quality barrel and screw

Multi stages of speed, pressure and position for injection, hold on and charge

Position or time hold on charge over

Injection cushion monitoring

Screw position transducer control

Prevent the screw cold start

Low speed, high torque screw drive motor

Close loop barrel temperature control

Steel hopper

Clamping Unit

Five point double toggle clamping unit

Transducer for mold open and close

Mechanical safety device

Multi stage of mold open/close speed, pressure and position

Electric Unit

Big size color LCD screen

100 Sets of mold data memory

Barrel temperature monitoring and thermocouple break alarm

Molding condition monitoring with alarm

System hardware I/O testing function

Interface for printer and floppy driver

Electric motor safety protection

Emergency stop safeguard device

Multi ejector model

Automatic mold height adjustment

Lowy pressure mold protection

T-slot

Auto centering lubrication system

Water flow regulator for mold

Accessories Unit

Self seal magnetic suction filter

Oil temperature control and alarm

OPTIONAL DEVICE

Wide range of clamping and injection unit for special application

DFEE Close loop pump

Special material screw and barrel

Simultaneous of mold opening and ejection

Spring, extended and hydraulic shut off nozzle

Screw RPM show

Multi-loop hydraulic system

Accumulator

Core pull

Air blast

Heat insulation plate

Water manifolds

Automatic safety door

Feed zone temperature automatic control system

Pre-heating for hydraulic oil

Oil temp regulation with temp indication

Magnet for hopper

Photoelectric check for mold

Proportional back pressure

Monitor and control at far way in internet

Hydraulic safety interlock

SPC electric products selection device

HCE100	100 Tonnage – US Standard (US Tons)	360*360 MM Tie Bar Distance	106/121/144 G Shot weight(PS)	350-150 mm Max-Min Mold height
HCE120	120 Tonnage – US Standard (US Tons)	410*410 MM Tie Bar Distance	148/175/213 G Shot weight(PS)	380-150 mm Max-Min Mold height
HCE150	150 Tonnage – US Standard (US Tons)	460*460 MM Tie Bar Distance	176/213/246 G Shot weight(PS)	450-160 mm Max-Min Mold height
HCE180	180 Tonnage – US Standard (US Tons)	480*480 MM Tie Bar Distance	277/319/393 G Shot weight(PS)	520-180 mm Max-Min Mold height
HCE230	230 Tonnage – US Standard (US Tons)	530*530 MM Tie Bar Distance	310/383/466 G Shot weight(PS)	530-200 mm Max-Min Mold height
HCE270	270 Tonnage – US Standard (US Tons)	580*580 MM Tie Bar Distance	416/503/600 G Shot weight(PS)	550-200 mm Max-Min Mold height
HCE300	300 Tonnage – US Standard (US Tons)	630*630 MM Tie Bar Distance	615/732/859 G Shot weight(PS)	630-200 mm Max-Min Mold height
HCE330	330 Tonnage – US Standard (US Tons)	680*680 MM Tie Bar Distance	1076/1175/1349 G Shot weight(PS)	720-250 mm Max-Min Mold height
HCE390	390 Tonnage – US Standard (US Tons)	730*730 MM Tie Bar Distance	1258/1539/1665 G Shot weight(PS)	850-280 mm Max-Min Mold height
HCE530	530 Tonnage – US Standard (US Tons)	820*800 MM Tie Bar Distance	1560/1788/2018 G Shot weight(PS)	810-330 mm Max-Min Mold height
HCE600	600 Tonnage – US Standard (US Tons)	870*870 MM Tie Bar Distance	2315/2580/2858 G Shot weight(PS)	900-350 mm Max-Min Mold height
HCE780	780 Tonnage – US Standard (US Tons)	980*980 MM Tie Bar Distance	2807/3128/3821 G Shot weight(PS)	1000-400 mm Max-Min Mold height

RULES OF GUARANTEE PERIOD FOR HAICHEN

PLASTIC INJECTION MOLDING MACHINE

WELCOME TO USE “HAICHEN” PLASTIC INJECTION MOLDING MACHINE,HERE UNDER IS THE RULES OF GUARANTEE PERIOD

THE STARTING DATE FOR GUARANTEE PERIOD WILL BE CALCULATED FROM THE DATE THE MACHINE IS SHIPPED FROM HAICHEN.
CUSTOMER CAN ENJOY THE FOLLOWING GUARANTEE SERVICE DURING THE GUARANTEE PERIOD ONLY UNDER THE CONDITION THAT THEY OPERATE HAICHEN MACHINE CORRECTLY WITH RIGHT PLASTIC MATERIAL AND NORMAL OPERATION.
THE CATEGORY AND INSTRUCTION OF THE MAIN GUARANTEE ITEMS (REFER TO THE FOLLOWING 1ST FORM AND 2ND FORM).

1ST FORM
ITEMS	GUARANTEE PERIOD	ITEMS	GUARANTEE PERIOD	ITEMS	GUARANTEE PERIOD
CONTROLLER	12 MONTHS	DIRECTIONALVALVE PUMPS(VICKERS/USA)	12 MONTHS	PLATEN	24 MONTHS
CONTACTOR	6 MONTHS	DIRECTIONALVALVE PUMPS(SUNNY/USA)	18 MONTHS	TIE BAR	24 MONTHS
HEATING BAND	6 MONTHS	HYD MOTOR	18 MONTHS	OTHER MECHANICAL PARTS	12 MONTHS
OTHER ELECTRICAL ELEMENT	12 MONTHS	OTHER HYDRAULIC COMPONENT	12 MONTHS
NOTE: FOLLWING POINTS ARE NOT INCLUDED DURING WARRANTY TERMS
1. MACHINE IS DAMAGED BY INCORRECT OPERATION;
2.THE PLATEN AND TIE BAR ARE DAMAGED DUE TO THE UNPARALLEL MOLD MOUNTED ON THE MACHINE OR NET&BOLT OF TIE BAR IS REMOVED WITHOUT AUTHORIZATION;
3.THE CONTACTION AREA BETWEEN MOLD AND PLATEN IS LESS THAN SPECIFIED INSTRUCTION IN USER MANUAL OR IRREGULAR PRACTICES OF BOLT CAUSE THE PLATEN TO BE DAMAGED;
4.THE HYDRAULIC PARTS GOT DAMAGED AFTER USING POOR QUALITY HYDRAULIC OIL;
5.LACK OF LUBRICATION OR DAILY MAINTENANCE, DURING THE MACHINE RUNNING;

2ND FORM
RAW MATERIAL	GUARANTEE PERIOD FOR BARREL&SCREW
	NITRIDING	STAINLESS	BIMETAL
		STEEL	GENERAL	SPECIAL
NON-ENGINEERING PLASTIC MATERIAL&PROCESSING WASTAGE PP/PE	6 MONTHS	12 MONTHS	12 MONTHS	18 MONTHS
ENGINEERINGPLASTIC (PURE RETRACTION MATERIAL) ABS PC PA PMMA	6 MONTHS	12 MONTHS	12 MONTHS	18 MONTHS
ENGINEERINGPLASTIC (PURE RETRACTION MATERIAL) PBT PPS	4 MONTHS	6 MONTHS	5 MONTHS	12 MONTHS
15-30% FIBERGLAS OR LESS THAN 30% CALCIUM CARBORATE IN THE PLASTIC MATERIAL	3 MONTHS		5 MONTHS	12 MONTHS
30-40% FIBERGLAS OR LESS THAN 30% CALCIUM CARBORATE IN THE PLASTIC MATERIAL	2 MONTHS		3 MONTHS	10 MONTHS
FLAME RETARDANT OR CORROSINE ADDITIVE THE PLASTIC MATERIAL POM\PVC	3 MONTHS	10 MONTHS		18 MONTHS
NOTE :FOLLOWING POINTS ARE NOT INCLUDED DURING WARRANTY TERMS
1.THE HEATING TEMPERATURE HAS NOT ARRIVED PROPERLY WHEN OPERATING THE MACHINE OR THERE ARE METAL ADULTERANT IN THE PLASTIC MATERIAL WHICH MAKES SCREW DAMAGED;
2.THE MACHINE RUNS DESULTORILY OR THE SCREW GOT EROSION WITHOUT IN TIME DISLODGING;
3.THE SCREW TYPE IS NOT SUITABLE FOR THE RAW MATERIAL PROCESSING ON THE MACHINE DUE TO WRONG INFORMATION GIVEN WHILE IN PURCHASE.

DURING THE GUARANTEE PERIOD,THE SELLER WILL PROVIDE THE BUYER CORRESPONDING PARTS TO EXCHANGE THE DAMAGED PARTS FREE OF CHARGE UNDER THE CONDITION THAT THE BUYER RUN THE MACHINE CORRECTLY. IF NECESSARY, THE SELLER WILL ALSO SEND ENGINEER TO THE BUYER’S FACTORY TO SOLVE THE QUALITY PROBLEMS. EXPENSES OF ENGINEERS BE BORN BY WHICH PARTY DEPEND ON THE ACTUAL SITUATION.
