Aluminum Pot Making Machine

Haichen is an Aluminum Pot Making Machine factory in China

• Manufacturing process of Aluminum Pot cast aluminum pots and pans die casting machine
• What is the machine for the production of Aluminum pans and cooking pots？
• How many types of Cooking Pot Machine?
• How to choosing the Right pot die casting Machine
• Aluminum pot making machine price
•Casting An Aluminum Pot by Haichen die casting machine.

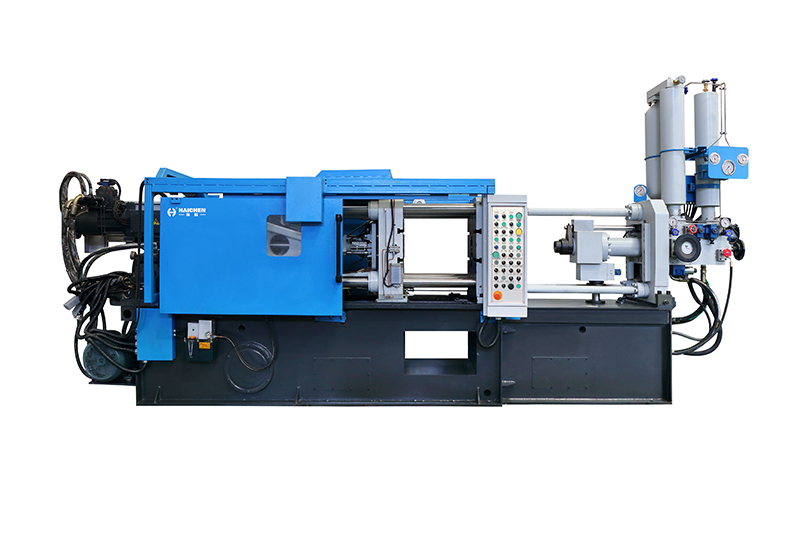

•Cold chamber die casting machines For Making Aluminium Pots
•Haichen cold chamber die machine can do cast aluminum pots and pans for you.

Click Here
产品4
产品3
产品2
产品1

Haichen Success Case For Aluminum Pot Making Machine

Aluminum pot has different shapes according to different culinary uses, we can customise different moulds and configure cast aluminum pots and pans production line according to your product size and weight.And to provide you with the most adapted Aluminum Pot Making die csating Machine.

Casting pot metal, is the main way to produce the cooking pot and pans. Especially to the cooking pot which need the teflon coating. Aluminium pot mold also very important to the production.

Aluminium pot and pan

Aluminum and pan require a large tonnage cold chamber die casting machine for production, and in the video, we demonstrate automated production.

To the cast aluminum cooking pot, need the Teflon coating. Because to the person with weakened kidney function, they may not be able to filter out the aluminum metal fast enough.  So how to keep the casting aluminum cooking pot safe? The casting pot needs higher pressure to make sure the surface is without air inside. So that when we coat the Teflon, it will not separate with the pot.

aluminium fixing part for removal bakelite handle for cookware-Haichen

Aluminum pot fixing part structural parts, with a variety of special shapes, we show in the video our production process of die casting with different cavities.

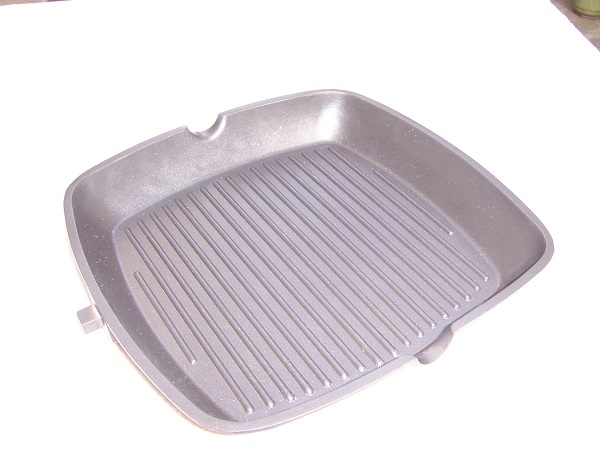

Aluminium Pan

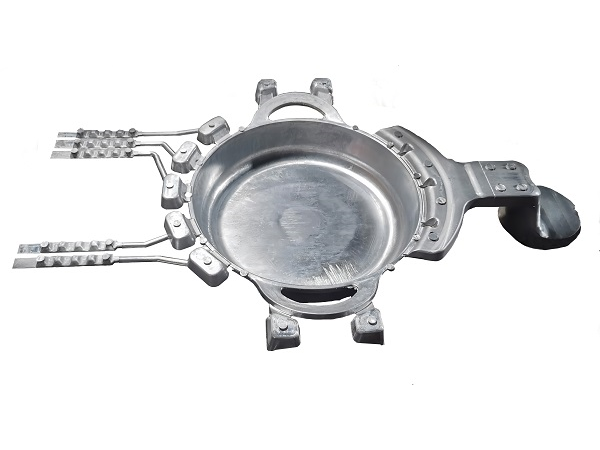

A typical flat-bottomed Aluminum frying pan, 20-28cm in diameter, requires 580 tonnes of machine

Aluminium mike Pot

Aluminiu Pot1
30-35cm diameter. 680 tonne machine.

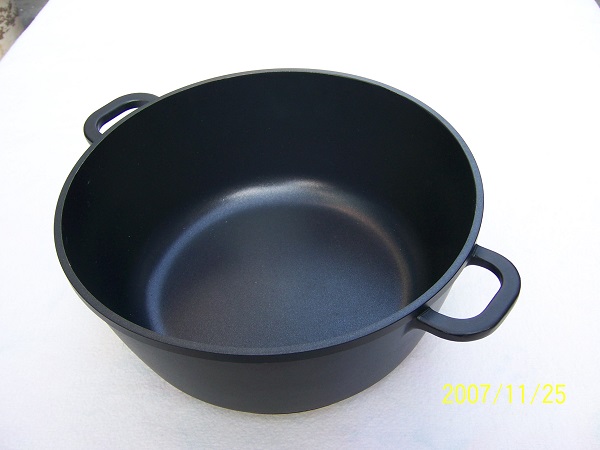

Aluminium Pot

Normal saucepans: because the bottom is deeper than a frying pan, the process of the aluminium liquid is much longer. The machine has to be bigger. For a diameter of 260*140, a 680 tonne machine is required.

Aluminiu soup Pot

280*70 also uses 680 tonnes.

Click Here

One-stop solution for Aluminum Pot making machine

Mold selection and  Machine choosing for Aluminum Pot die casting machine. We can supply the solution for the Aluminum Pot, cast aluminum pots production.

20 years +

Haichne has 20 years of experience in aluminum pot casting. Especially to pot making machines, aluminum pan die casting machines…

21 language

Haichen machine with 21 different languages and one display screen. Easy operate for producing the plastic bottle preform injection molding  with PET material.

On line support

We will support technical service online, which one has more than 10 years of experience in aluminum pot casting production. Any problem we can check online for cast aluminum pots and pans.

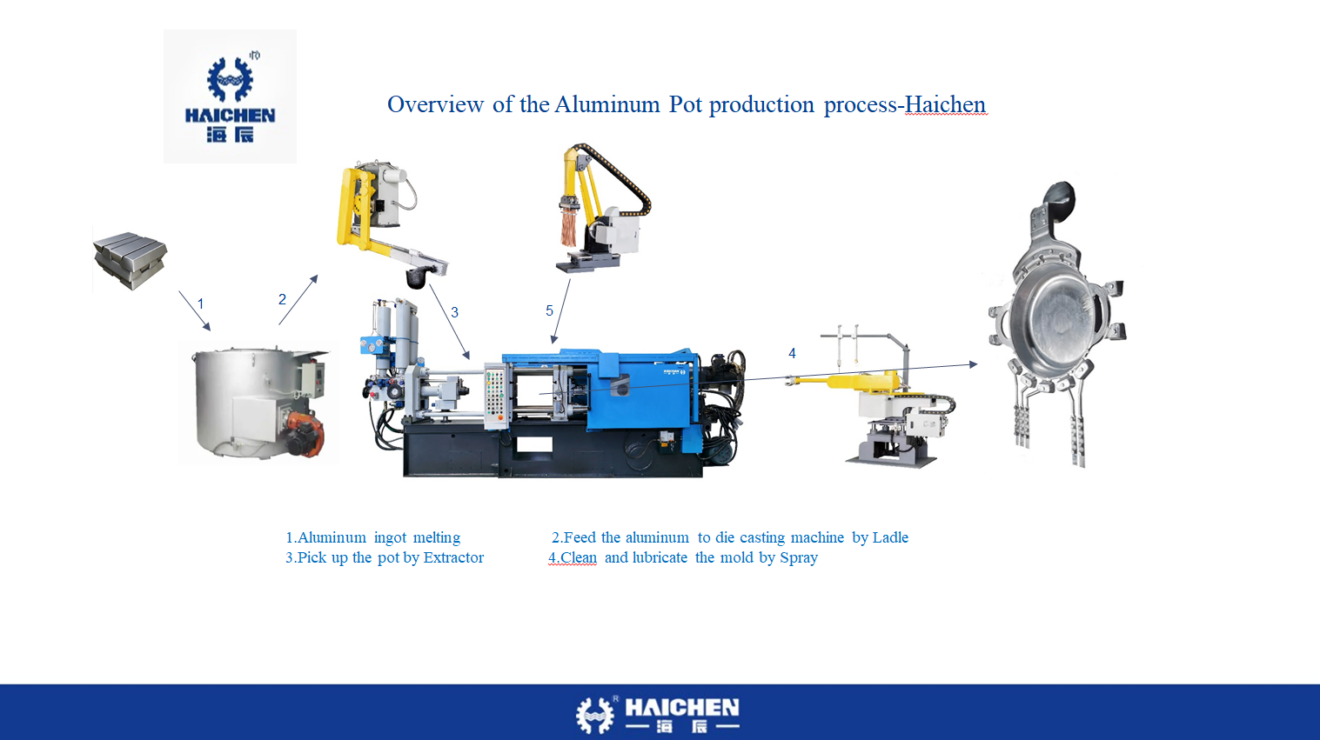

Aluminum Pot production process

The production of Aluminum Pot requires the melting of raw aluminium alloys of the corresponding grades in a furnace, followed by the use of a cold chamber die casting machine to press the melted aluminium alloy into specially designed Aluminum Pot moulds, which are then cooled down and taken out by a Extractor.With our Aluminum Pot production line, we can automate the entire production process week after week.
Due to the fact that aluminium pots need to be coated with a smooth Teflon layer in the later stages to insulate the air, the main body of the pot needs to be densely constructed to ensure even heat conduction, for this reason, we will increase the runners in the design of the aluminium pot moulds and distribute a larger number of zip ties to exhaust the air.After the die casting process is complete, these parts need to be removed using a hydraulic press.
Afterwards, the aluminium pots are evenly coated and ready for the market!

How to procue the cooking pot ?

Step 1: Melt the aluminum

According to different product quality requirements, the aluminum alloy raw material is put into the molten aluminum. The furnace will melt the aluminum. The furnace have 3 types : Oil furnace, Gas furnace, Electrical furnace.

Step 2: Feeding process

The automated ladle the appropriate weight of molten aluminium alloy material from the furnace for each cooking pan production run and pours it into the inlet of the die casting machine’s press chamber.

Step 3: Injection

Haichen cold chamber die casting machine injection unit will presses the molten liquid aluminium alloy into the mould rapidly, with higher press.

Step 4: Cooling & moulding

The mould thermostat connected to the mould starts to work to regulate the temperature of the product cavity to a suitable zone, and the cooking pot is shaped. Then the aluminum pot will be cooled inside of the mold.

Step 5: Open the mould & Extractor

The die-casting machine opens the pan mould, and the automatic extractor reaches between the moulds by the automatic door and takes out the finished products combined with the runner clamps.

Step 6: Spray & mold close

After the cavities have been emptied, the automatic sprayer atomises and evenly sprays the mixed release agent onto the two cavity surfaces of the mould, ready for the next cycle of production.

Customer on-site use

aluminum cooking pot mould

We produced high strength precision moulds for this customer.

aluminum cooking pots

Products that have been smoothly produced by the customer

aluminum pan mould

Aluminum frying pan mould on our die casting machine

Aluminum pan factory

This plant uses automated pickup

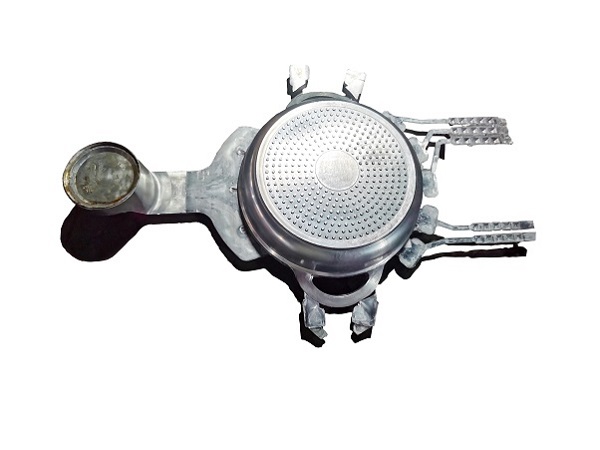

Aluminum pots preprocessing

The customer uses our hydraulic trimming machine to remove the excess part of the aluminum pot.

Semi-finished Aluminum pots

After grinding and polishing the Aluminum pots stack, the main process of die casting has been completed

Finished aluminium cookware

The exterior plating of the Aluminum pots and pans are now complete and ready to be packaged and sold!

Aluminum pan factory

Customers use cooling conveyors to collect aluminum cooking pot and pan

Why Haichen

Haichen a manufacturer of Pot die casting machine

Haichen a manufacturer of Aluminum Cooking Pot Making die casting Machine
Let Haichen be your Aluminum Cooking Pot die casting machine line supplier. With years of experience and commitment to quality, we have helped countless factories succeed through efficient production.

Haichen can provide: Aluminum pots moulds, Aluminum pot making cold chamber die casting machines, related full range of automation auxiliary machinery …… We would also like to share with you about . :

• Efficient Aluminum Pot Making Machine For High-Quality Production
• About machines for making aluminium pots
• Aluminum Cooking Pot Making Machine – Factory, Suppliers, Manufacturers From China
• What is aluminium pot making machine?

Click Here

Excellent hydraulic component

Apple advanced hydraulic component from Europe and America

Clamping unit

Adjustment structure with celerity and equation

Excellent injection unit-hot chamber

Durable and strong fixed platen structure

Mold release system

Up to date die casting technology,high-speed press injection device

Haichne has 20 years of experience!

Haichen die casting machine suit for cast aluminum pots and pans.

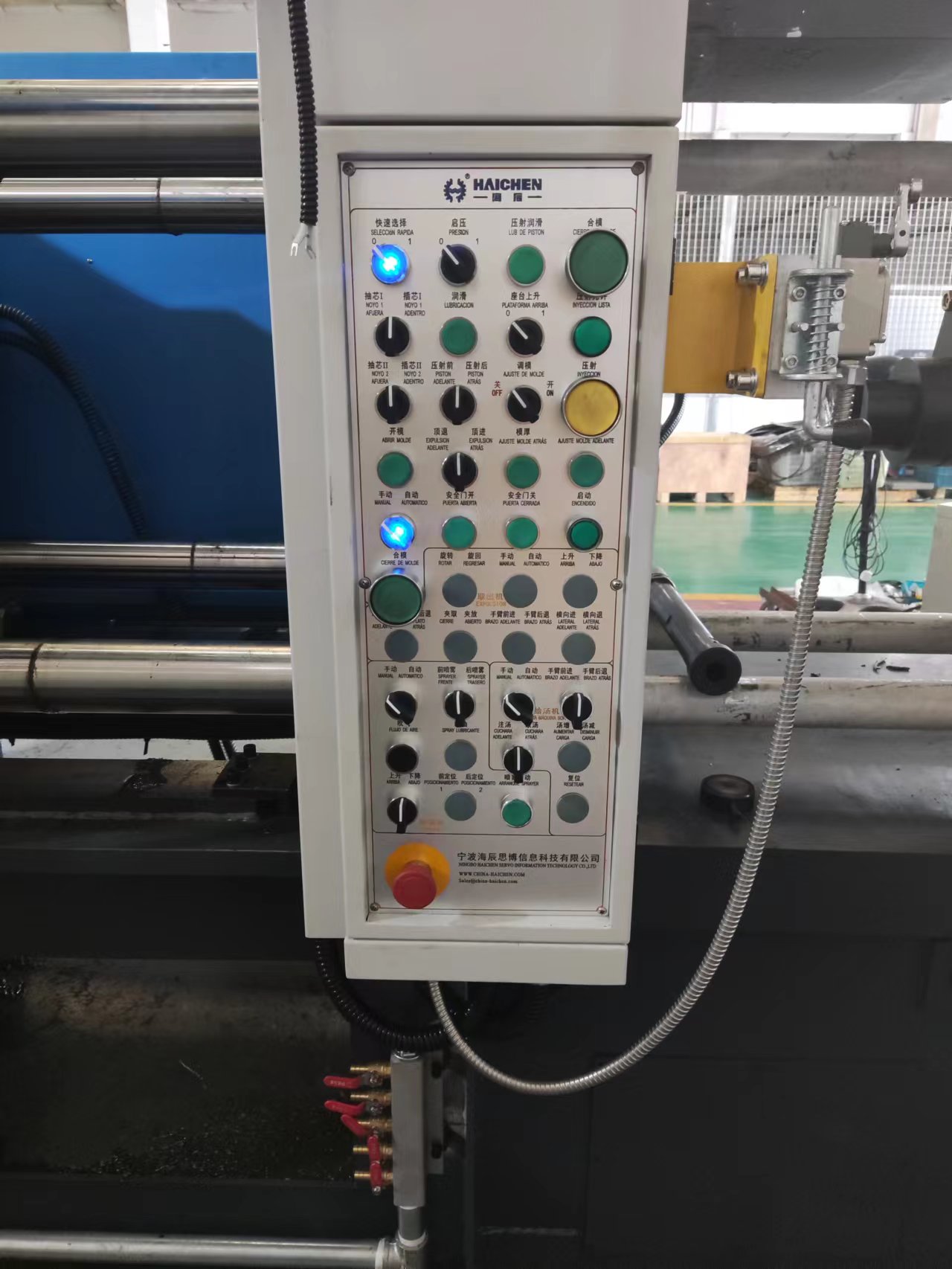

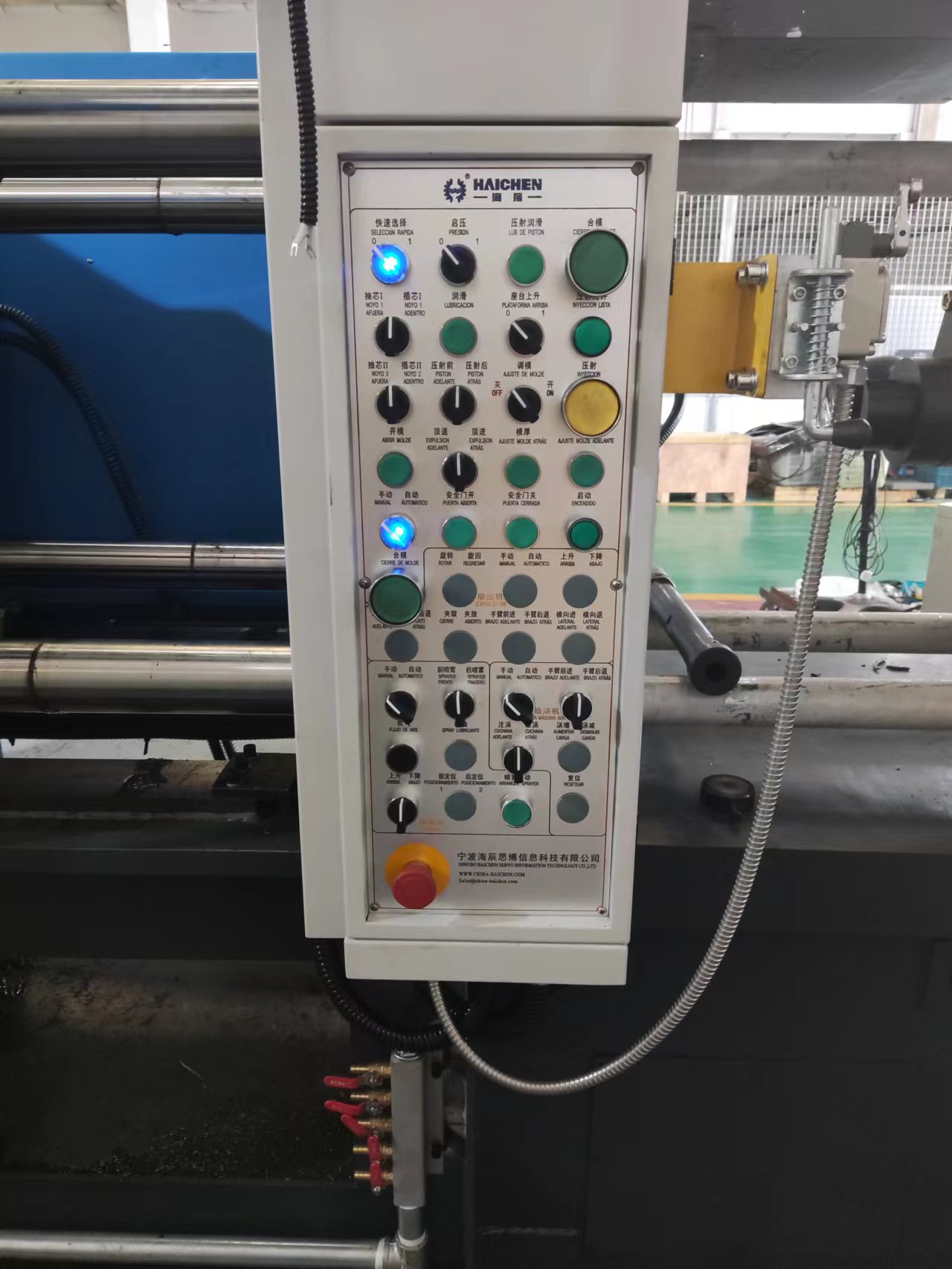

The machine control is easy with 21 different languages on the control screen.

Haichen is a manufacturer of die casting machines. We supply the machines from 30 ton to 3000 ton. The clamping force is from 3300KN to 30000KN.

Get Free Solution

    machine for export

    Inspection of the generator

    Cold chamber aluminium pot die casting machine start-up inspection

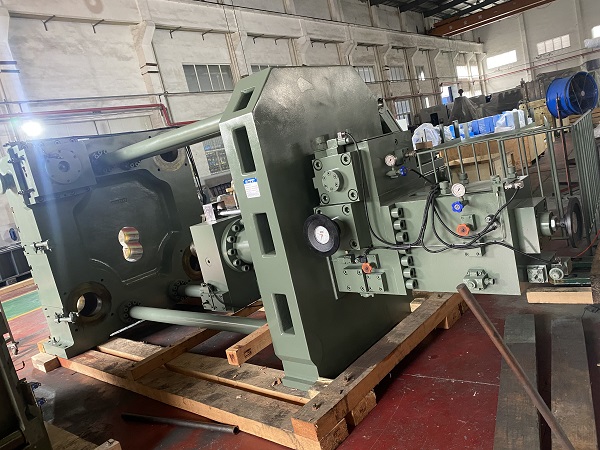

    880ton Clamping Unit

    880 tonnage machine’s clamping unit loading for turkey market.

    1380t machine die casting Module Subassembly

    Large equipment platforms for Argentinean customers

    Moulds for aluminium pots

    Moulds finished with anti-corrosion treatment and external reinforcement, ready to be sent to the customer

    Bottom frame for 1380T machine

    The frame for the 1380T machine is being lifted, which requires a 40HQ container for its length.

    Combined loading process

    We chose to place the lighter auxiliary machinery in a sturdy machine chassis to take up the longitudinal space in the container.

    HCD480-C aluminium die casting machine

    Brand new 480t machine shipped destined for the Middle East market, for the production of road facilities for customers.

    200t cold chamber die casting machine

    Haichen’s small cold chamber die casting machine can provide you with solutions for many different products.

    client reviews

    What People Think About Us

    Some factories cast aluminum pots and pans that choose Haichen die-casting machines.

    Click Here

    Any other questions you’d like to ask us?

    Haichen focuses on the global construction market and provides our clients with products suitable for the local market:

    • Any cast aluminum pots and pans.
    • Aluminum pots and pans mold design.
    • Die casting machines warranty.
    • Comprehensive brochure you can download for die-casting machine.
    • The details about the casting aluminum pots and pans production line.
    • Fast delivery.

    Talk with our sales

    Click Here

    SEND US AN EMAIL

    [email protected]

    Contact Us

    Haichen has lots of users who produce cast aluminum pots and pans. They have used Haichen’s die-casting machine for more than 15 years. If you are interested in the aluminum pots and pans die casting, just contact us freely.
