Aluminum Road Stud die casting machine

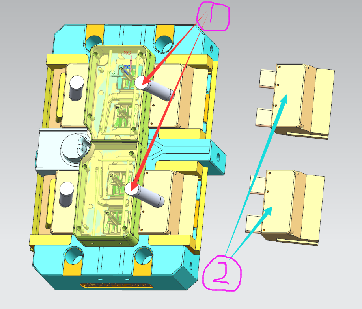

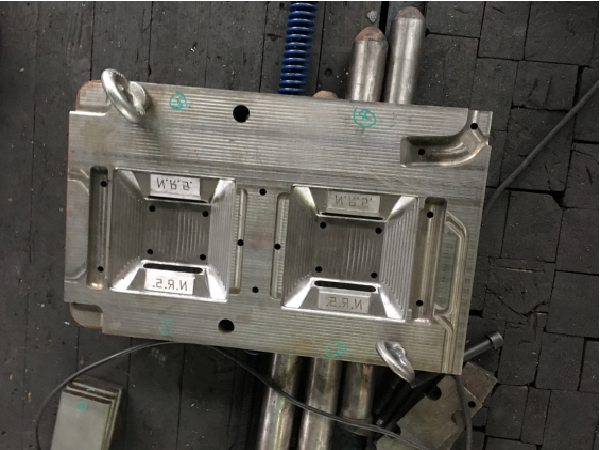

The first step is to design an industry-standard mould that will accurately cast the required aluminum studs in the shape and size.

In mould design and manufacturing, ensuring the shape and dimensional accuracy of aluminum road nails requires comprehensive consideration and control from multiple aspects.

Process parameter control: In order to improve the accuracy and quality of road nails, designers need to continuously optimize the mould structure design, improve manufacturing accuracy, accurately control process parameters, and strengthen the management and control of mould post-processing and correction of road nails.

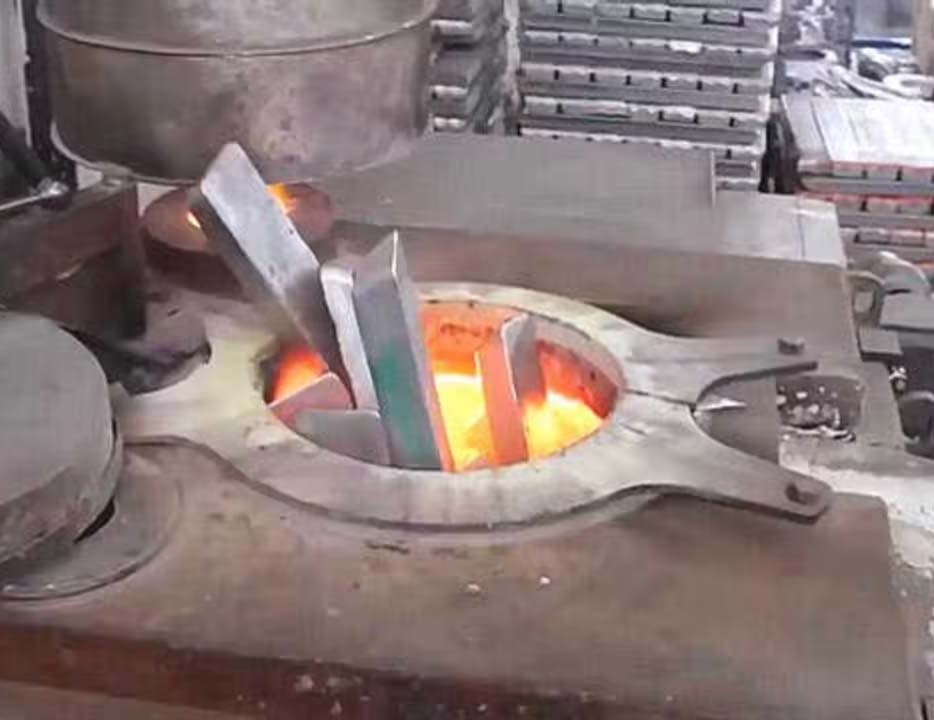

The molten aluminum is removed from the holding furnace and poured into the press chamber by manual or automatic pouring device.

Since the cold chamber die casting machine is characterized by the fact that the injection chamber and the injection punch are not immersed in the molten metal, a quantitative amount of molten metal needs to be poured into the injection chamber.

The automated ladle the appropriate weight of molten aluminum alloy material from the furnace for each road stud production run and pours it into the inlet of the die casting machine’s press chamber.

If we have no auto ladle, feeding by hand is also ok. Auto ladle can fix the feeding weight automatically, but hand is hard to control the weight.

In the press chamber, the hydraulic system pushes the molten metal into the cavity of the mould through a piston.

In this process, the injection punch advances, hydraulically inserts the metal into the mould cavity, and the molten aluminum alloy is injected into the mould cavity through a concentrated inlet through high pressure.

This process requires controlled pressure and speed to ensure that the aluminium alloy fills evenly into every corner.

The aluminum alloy is cooled and solidified in the mould to form the required road studs. The design of the cooling system is essential to improve the accuracy and quality of the product.

This process requires tight temperature and time control to ensure the density and strength of the casting.

The aluminum alloy is cooled and solidified in the mould to form the required road studs. The design of the cooling system is essential to improve the accuracy and quality of the product.

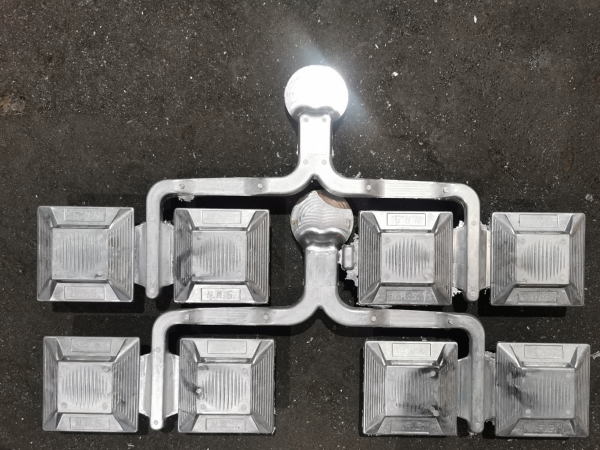

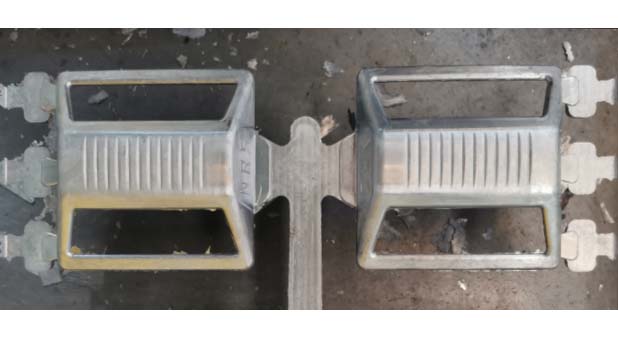

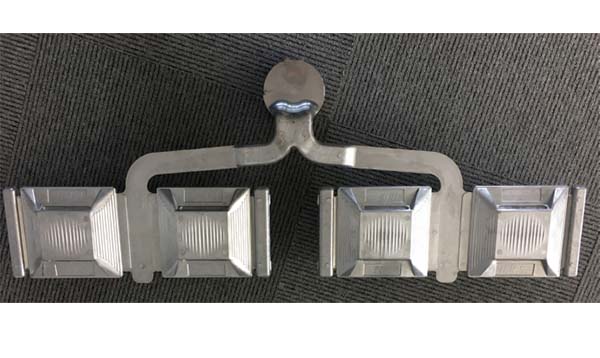

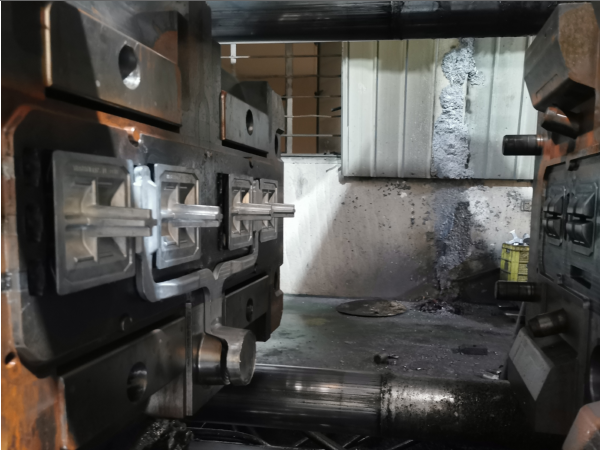

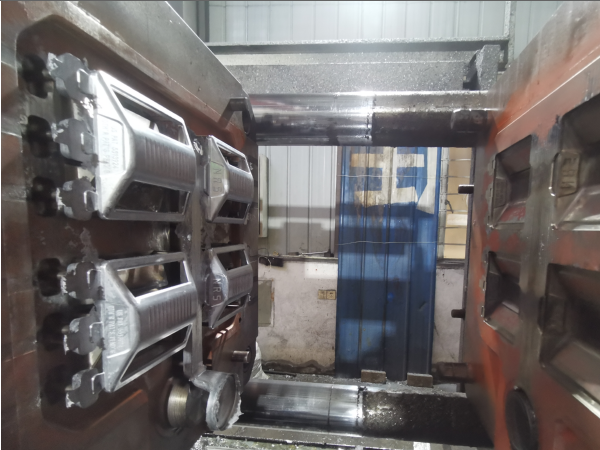

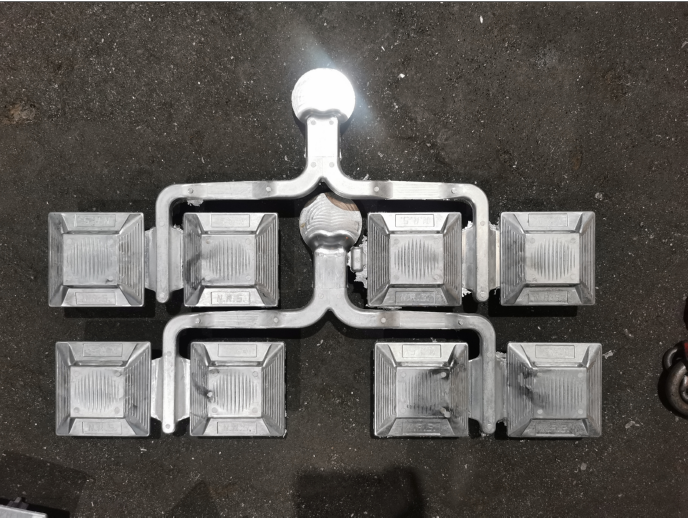

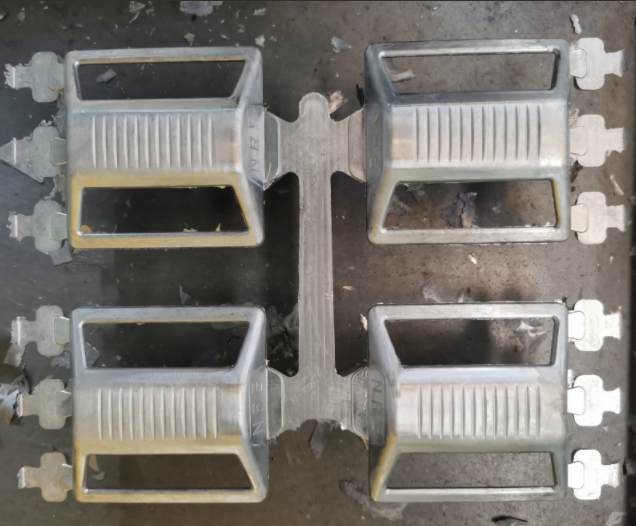

Road stud castings, after cooling, are demoulded to remove excess material and cleaned and trimmed. The castings are then subjected to further heat treatment or other surface treatment processes to improve their performance and appearance quality.

After the cavities have been emptied, the automatic sprayer atomises and evenly sprays the mixed release agent onto the two cavity surfaces of the mould, ready for the next cycle of road studs production.
