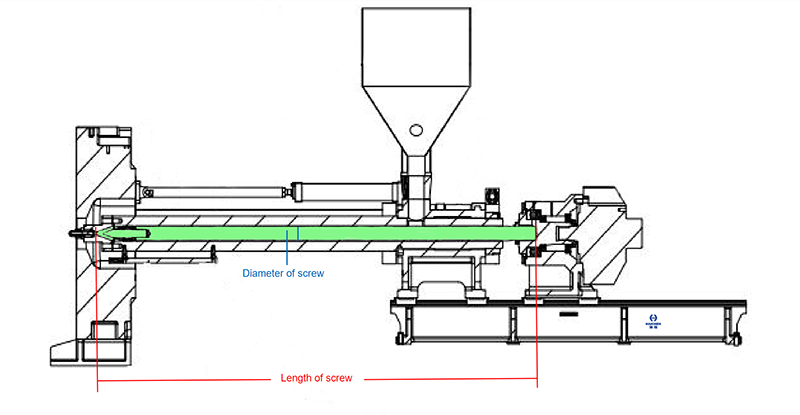

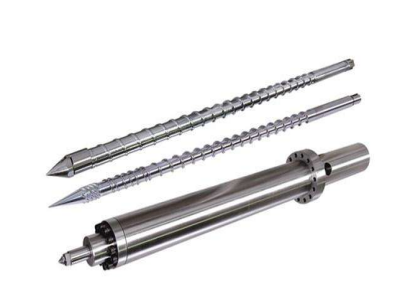

The screw L/D Ratio of the Injection Molding Machines is the ratio of screw length to screw diameter.
The screw L/D ratio = the screw length (L) ÷ the screw diameter (D)
On the injection molding machines’ parameters, one machine always has 3 different L/D ratios.
Like Haichen HCK150 machine has 3 screw L/D radios: 22.2 20 17.8. It is because HCK150 has 3 different screw diameters for your choice, screw A B C.
In addition, the selection of screw ratio is also related to the usage of the injection molding machine and the characteristics of the processed materials. For example, when processing PC products, a ratio of L:D 20 for the screw can meet the PC plasticization requirements. But when using PC raw material to produce optical panels, the L/D ratio should be 23.
In practical applications, the selection of the screw L:D ratio requires comprehensive consideration of factors such as plasticizing effect, temperature uniformity, mixing effect, and feasibility of mechanical processing. Generally speaking, the larger the screw L/D ratio, the better the plasticizing effect, but an excessively large aspect ratio may pose difficulties for the mechanical processing of machine screws and barrels.

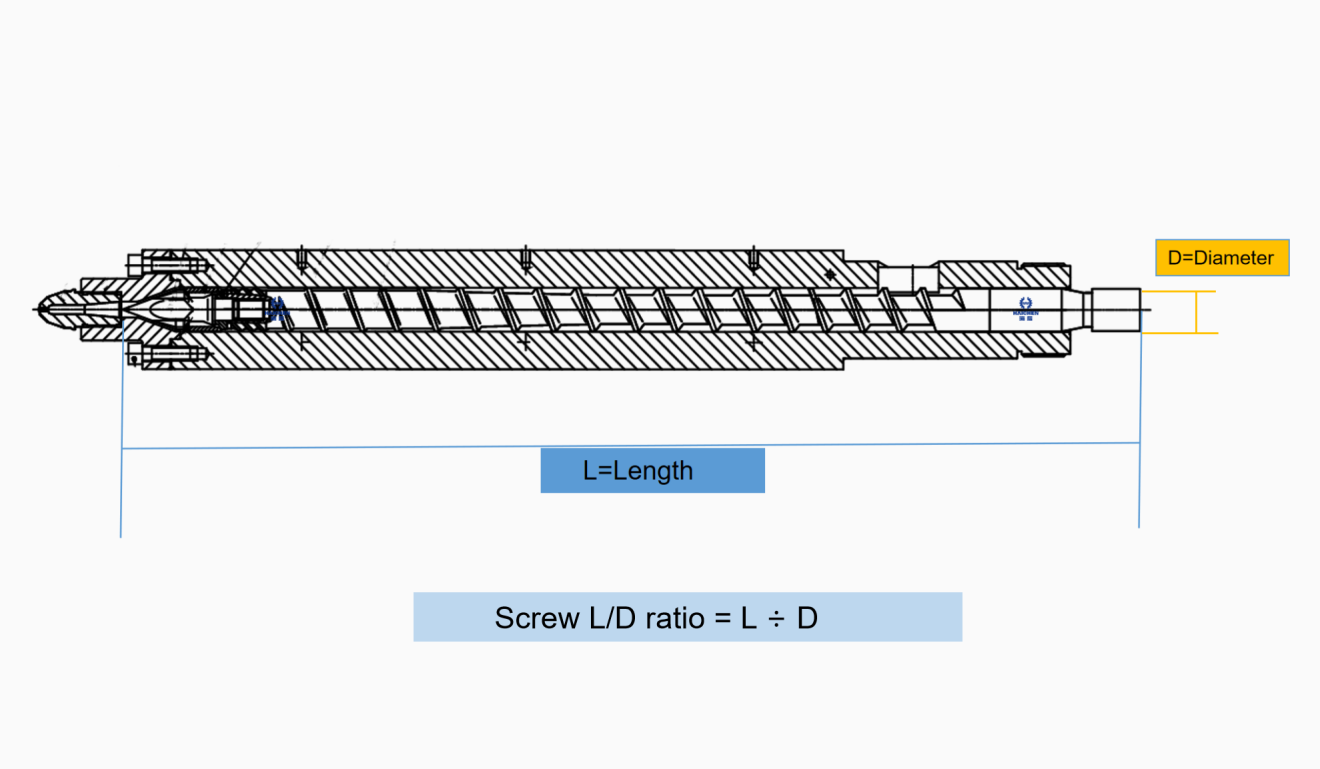

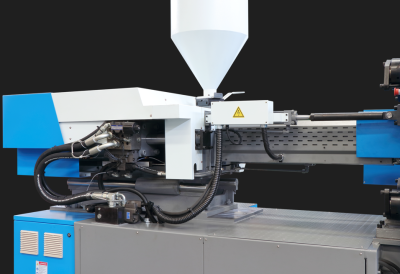

How to calculate LD ratio of injection molding machine?
Ld ratio = L ÷ D
L= the length of screw
D= The diameter of screw
The screw L D ratio is: The ratio of length to diameter.
So how to calculate L/D ratio is L ÷ D.
What’s the matter of different screw L/D ratios?
The influence of screw L/D ratio on injection molding machines is mainly reflected in plasticizing effect, temperature distribution, mechanical processing difficulty, production efficiency, and applicable materials.
In practical applications, it is necessary to choose the appropriate aspect ratio based on specific materials and production requirements to achieve the best injection molding effect.
Is the Plastic Injection Molding Machine`s L/D Ratio the Bigger the Better?
Yes, the bigger screw L/D ratio, is better for a plastic injection molding machine.
The influence of screw L/D ratio on injection molding performance is mainly reflected in the following aspects:
Plasticization effect:
The larger the screw ratio (L/D), the longer the material stays in the screw, which is beneficial for full plasticization and improves the plasticization effect.
A screw with a larger L/D ratio can better absorb energy. And allowing the material to undergo a more complete thermal process in the barrel.
Thereby improving plasticization quality and uniformity.
Temperature distribution:
Screws with a larger L/D ratio help to achieve a more uniform temperature distribution and reduce axial temperature differences.
This is because the material needs to pass through more threaded sections in the screw.So that material will having more opportunities for uniform heating.
Raw material mixing effect:
A screw with a large L/D ratio helps to improve the mixing effect. And making the material mix more evenly and thus enhancing product quality.
Adaptability:
Different plastics have different requirements for L/D ratio.
For example, plastics with poor thermal stability require longer screws to improve mixing without burning. While plastics with better thermal stability can use shorter screws.
Production efficiency:
Screws with a large L/D ratio can improve production efficiency under certain conditions.
For example, a larger L/D ratio helps reduce leakage and pressure flow. Thereby it improving production efficiency.
How L/D ratio influence heat and pressure?
The length-to-diameter ratio (L/D) of the screw in the injection molding machine has a significant impact on the injection pressure and heat.
It directly affecting the thermal history and energy absorption capacity of materials in the screw.
The larger the L/D ratio, the longer the length of the screw. And the longer the material stays in the screw, allowing more time for heating and plasticization.
This helps to improve the uniformity of the melting temperature and reduce the problem of uneven axial temperature during melting.
Therefore, screws with a larger L/D ratio can better ensure the temperature uniformity of molten plastics. Thereby it improving the stability of injection molding pressure.
In addition, screws with a larger L/D ratio can provide more plasticizing ability. Because the material stays in the screw for a longer time, allowing for more thorough plasticization and mixing.
This helps to improve the output capacity of injection molding pressure, thereby enhancing the quality and efficiency of injection molding.
The L/D ratio of the screw in the injection molding machine has a significant impact on the injection pressure.
A larger aspect ratio helps to improve the uniformity of melting temperature and plasticizing ability, thereby enhancing the stability of injection pressure and molding quality.
However, an excessively large aspect ratio may also bring some problems that need to be adjusted according to specific circumstances
What is the negative impact of a large L/D Ratio
A large screw L/D ratio can also bring some negative effects:
- Increased manufacturing and assembly difficulty
- Energy consumption increase
- Processing difficulties
Increased manufacturing and assembly difficulty:
Excessive aspect ratio can increase the manufacturing and assembly difficulty of screws, which may lead to increased manufacturing costs and assembly difficulty of screws.
Energy consumption increase:
Screws with a large aspect ratio may increase energy consumption during use because the material stays in the screw for too long, requiring more energy to maintain temperature and plasticizing effect.
Processing difficulties:
Excessive aspect ratio may lead to incorrect feeding and heating, as well as difficulty in injection
How to choose the right screw L/D ratio?
The screw ratio (L/D) of injection molding machine is a very important parameter in the injection molding process, which directly affects the injection performance and product quality. The screw L/D ratio refers to the ratio of the length of the working part of the screw to the diameter of the screw, i.e. L/D=L/Ds.
General standards to choose the right screw l/d ratio:
Choose the right screw L/D ratio, depands on the raw materials.
Common materials :
The screw L/D ratio: 18 and 22 for common materials, like PP, PS…
This is a common selection range for injection molding machine screws.
Materials PET:
The screw L/D ratio: above 1:24 for PET material.
Normally the PET bottle preform injection molding machine we will use 1:24 for the screw L/D ratio.
Material PC:
The screw L/D ratio: around 20 to normall PC.
PC raw material to produce optical panels, the L/D ratio should be 23.
The development trend of the screw L/D ratio of injection molding machine
With the development of technology, the screw L/D ratio shows a trend from small to large.
For example, the screw ratio (L:D) in the 1950s was generally 18-20, in the 1960s it was 25-28, and currently it can reach 30.
The ratio (L/D) of injection molding machine screws has a significant impact on market trends and development directions.
The residence time and plasticization effect
Firstly, the ratio of the screw is the ratio of the working length to the outer diameter of the screw, which directly affects the residence time and plasticization effect of the material in the screw.
The larger the aspect ratio, the longer the residence time of the material in the screw, which is conducive to the mixing and plasticization of the material, thereby increasing the melt pressure and reducing reflux and leakage losses. This is of great significance for improving product quality and production efficiency.
In terms of the development trend of the injection molding machine market, with the advancement of technology and changes in market demand, the injection molding machine industry is moving towards intelligence, automation, efficiency, environmental protection, and sustainable development.
The performance of injection molding machines
The optimization of screw L/D ratio can improve the performance of injection molding machines and meet the needs of these development trends.
For example, in recent years, with the rapid development of random copolymer polypropylene (PP-R) pipes, the screw length to diameter ratio of its dedicated extruder is usually between 28/1 and 34/1 to adapt to its difficult to plasticize characteristics.
The output and production efficiency
In addition, optimizing the aspect ratio of screws can also improve the output and production efficiency of injection molding machines. After increasing the L:D ratio, the screw speed can be increased, thereby increasing the extrusion amount of plastic. This has a positive effect on responding to the growth of market demand and improving market competitiveness.
The impact of the L/D ratio of injection molding machine screws on market trends and development directions is mainly reflected in improving product quality, production efficiency, and meeting the needs of intelligence, automation, efficiency, environmental protection, and sustainable development. With the development of the injection molding machine industry, optimizing the aspect ratio of screws will become an important means to enhance market competitiveness.
What should you ask your manufacturer about Screw L/D ratio?
When purchasing an injection molding machine, the following aspects should be asked about the aspect ratio (L/D) of the screw:
The screw L/D ratio directly affects the thermal history and energy absorption ability of the material in the screw.
The larger the aspect ratio, the longer the material stays in the screw, which is beneficial for plasticization and uniform mixing.
The larger the aspect ratio, the better the plasticizing effect, because the material stays in the screw for a longer time, allowing for more thorough mixing and plasticization. However, excessive aspect ratio may lead to a decrease in screw strength.
Increasing the aspect ratio can reduce the axial temperature difference, as the plastic needs to rotate a few more turns to reach the end of the screw, thereby making the temperature more uniform.
A larger aspect ratio results in longer residence time of materials in the barrel, which is beneficial for plasticization. At the same time, pressure flow and leakage flow are reduced, which is advantageous for materials with higher temperature distribution requirements. However, an excessively large aspect ratio may have a negative impact on manufacturing, assembly, and use.
Different types of plastics and production demands have varying requirements for aspect ratios.
Generally speaking, a length to diameter ratio of 18 to 20 is a common choice, but there is currently a trend towards increasing it, with some screws having a length to diameter ratio of up to 22.
The aspect ratio is closely related to the screw speed. Generally speaking, the larger the aspect ratio, the higher the rotation speed of the screw, thereby improving the plasticizing effect.
There is a subtle relationship between screw length and injection stroke. The longer the screw, the lower the ratio of injection stroke to screw length, which affects the axial temperature difference.
When purchasing an injection molding machine, it is necessary to inquire in detail about the aspect ratio of the screw, and choose the appropriate aspect ratio based on specific production needs and material characteristics to ensure the normal operation of the injection molding machine and the production of high-quality products.
The length to diameter ratio (L/D) of injection molding machine screws is the ratio of screw length to screw diameter, and is one of the important parameters of injection molding machine screws.
The size of the L/D ratio directly affects the plasticizing ability and plasticizing quality of the screw.
The L/D ratio of injection molding machine screws is generally between 17 and 33, and the specific selectioL/Dn should be determined based on actual application requirements and equipment types. Common Screw L/D ratios of injection molding machine include 20, 22, 25, etc
