Pressure relief valves in hydraulic systems are critical safety components that prevent over-pressurization by releasing excess fluid, ensuring safe and reliable operation of machinery.
Pressure relief valves are essential components in hydraulic systems, particularly in injection molding machines, where they play a crucial role in ensuring safe and efficient operation.
These valves are designed to prevent over-pressurization by releasing excess fluid when the system pressure exceeds a predetermined limit.
Understanding the importance of these safety components is vital for maintaining reliable and consistent production processes.
In this article, we will explore the function, types, and importance of pressure relief valves in hydraulic safety systems.
Functions of Pressure Relief Valves
- Pressure Regulation
- Preventing Overpressure
- Maintaining System Integrity
Pressure Regulation
Pressure relief valves have the greatest responsibility in controlling the pressure of the hydraulic system. These valves are designed to control the pressure within the system and will relieve pressure when it exceeds the set value. This also avoids exposing the system to high pressures which are harmful to the machine’s parts.
Preventing Overpressure
Another important role these valves have is preventing any overpressure situations. If the pressure in the hydraulic system exceeds a preset value, the valve will automatically open to relieve pressure. This is necessary in protecting the system’s hydraulic parts like pumps and actuators from overpressure damage.
Maintaining System Integrity
Another critical function of pressure relief valves involves controlling the pressure in the hydraulic system. Pressurizing the hydraulic system within set levels will help control any system leaks or ruptures which impacts the durability and reliability of the machine.
Importance of Pressure Relief Valves in Injection Molding
- Protecting the Machine
- Ensuring Consistent Quality
- Safety for Operators
Protecting the Machine

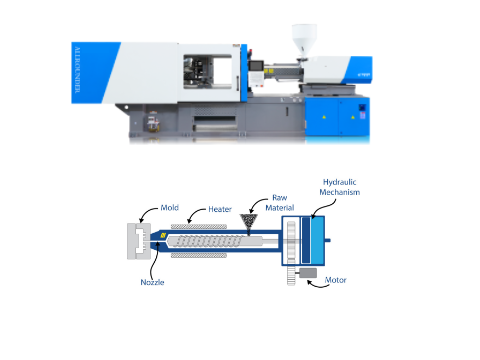

In Injection molding, the hydraulic system works at high pressure to inject molten plastic into the mold. Pressure relief valves are critical to overpressure protection. They support the machine by effortlessly maintaining the system pressure throughout safe pressure limits, minimizing the risk of machine stranded components, failure, and unnecessary machine downtime.
Ensuring Consistent Quality
Quality production of injection mold components is generated at a high-standard pressurized environment. Pressure relief valves are critical in achieving consistent pressure by maintaining stable pressure level, allowing the accurate injection of plastic into the mold. This consistency throughout the parts increases the overall production quality as they are of uniform dimensions and surface finish.
Safety for Operators
As with all machines, the operator’s safety is of utmost importance. Pressure relief valves prevent sudden dangerous pressure surpassing limits which can pose safety threats, they equally ensure a smoother operation of the system and lessen the risk of unpredictable hydraulic failures.
Main Types and Selection Key Points for Pressure Relief Valves for Injection Molding Machines
Based on their structural principles, they can be divided into two categories, each with its own application scenarios:
| Type | Operating Principle | Advantages | Applications for Injection Molding Machines |
| Direct-Acting | A spring directly presses against the valve disc, directly opening the valve port when pressure exceeds the limit. | Fast response (<2ms), low cost | Small and medium-sized injection molding machines, low-pressure auxiliary circuits |
| Pilot-Operated | A pilot valve controls the opening of the main valve, resulting in a large main valve disc area. | High pressure capacity (>350 bar) and high flow rate | Main hydraulic pump outlet for large injection molding machines |
Key Selection Parameters:
- Set Pressure: Must be 10%-15% higher than the maximum operating pressure of the injection molding machine, but lower than the minimum pressure rating of system components.
- Flow Capacity: Select based on the maximum output flow rate of the pump to ensure adequate instantaneous pressure relief capability.
- Seal Material: Must be resistant to hydraulic fluids (mineral oil/synthetic ester) and operating temperatures of 55-120°C. Fluororubber (FKM) is commonly used.
HAICHEN: Your Partner in Injection Molding Solutions
HAICHEN specializes in producing high-precision and dependable injection molding machines. All our machines come with advanced hydraulic safety elements, including pressure relief valves, which guarantees production quality and efficiency. Whether you are into producing automotive parts, consumer electronics, or industrial components, with HAICHEN you get the tools and experience to accomplish your production objectives.
Why Choose HAICHEN?
- Advanced Technology: with HAICHEN the quality of your production won’t be comprised as we guarantee high tech control systems and precision molding components on our injection machines.
- Custom Solutions: You can get your machines configured to your desired specifications, including, but not limited to: mold size, material type, and production volume.
- Quality and reliability: HAICHEN machines are manufactured with the highest industry standards and therefore boast unmatched reliability and operational uninterrupted run time.
- Comprehensive Support: To cater to all customer grievances and enhance customer satisfaction HAICHEN provides tech support, maintenance, and unmatched after sale services.
Injection Molding in Thailand
Thailand is a growing hub for plastic injection molding, with many manufacturers looking to optimize their processes and reduce costs. Properly equipped injection molding machines, such as those from HAICHEN, can significantly enhance production efficiency and product quality. By adopting advanced technologies and best practices, Thai manufacturers can stay competitive in the global market.
Pressure relief valves play a critical role in injection molding machines. These valves alleviate the risk of the machine suffering from overpressure. Moreover, they ensure that production quality is up to standard. Last but not least, they improve shower workplace.
