410 ton injection molding machine refers to an injection molding machine with a clamping force of 410 tons.
Is a key equipment for shaping thermoplastic/thermosetting plastics into plastic products through molds.
It achieves production by heating and melting the plastic and applying high pressure to fill the mold cavity.
Its classification is based on the clamping force (unit: tons) as the core indicator, and 410 tons belongs to the medium-tonnage model.

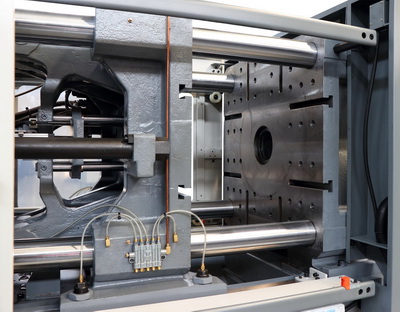

Clamping Unit–410 ton Injection molding machine
- Small diameter positioning holes, enhance the clamping force.
- T – groove and screw holes are used in the formwork.
- Green column bolding is enhanced compared to the same tonnage model.
- European design style wide plate large modulus.
- The bottom of the template is enlarged, and the large-area contact runs smoothly.
- The mold shifting stroke is increased, which is suitable for deep cavity products.
The clamping unit for 410 ton injection moulding machine.
Means the clamping force is about 4100 kN.
It can support the force to clamp the mould during machine production.
It is a new design of the Haichen 410 ton injection moulding machine Clamping Unit.
And the last 20 years the Clamping Unit improved to be stronger and better.

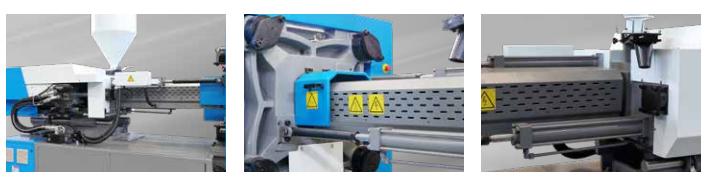

Injection Unit—410 ton Injection molding machine
The injection unit of the Haichen 410-ton Automatic Injection Machine uses one hydraulic motor for charging plastic, also with heating and injection.
410-ton Automatic double rod injection structure, injection more stable.
The injection cylinder and drive shaft are integrated to ensure the injection mechanism coaxiality and straightness.
Injection adopts high precision linear guide rail to reduce the load of storage stable back pressure.
400-ton Automatic Injection Machine Injection Unit,with heating protection, and injection nozzle cover for safety.

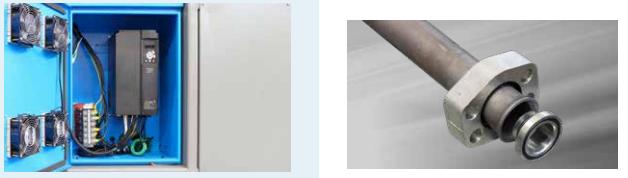

Hydraulic Unit–410 ton Injection molding machine
It adopts imported multi-layer steel wire hose, with a high pressure resistance of 42MPa. The high-pressure hose of the oil pipeline adopts an H-shaped interface.
The 410-ton automatic injection molding machine has a large-space servo electrical cabinet with good heat dissipation effect, and the two sets of convection cooling fans have an even better effect.
Reserve two or more neutron interfaces to quickly seal the oil pipe; The system oil pressure can reach 17.5MPA and the firing rate is 120mm/s.
Oil block G threaded interface, surface treatment, explosion-proof chain of rubber hose; The oil pipe adopts precisely drawn bright pipe, and there is no electric welding in the jacket link.

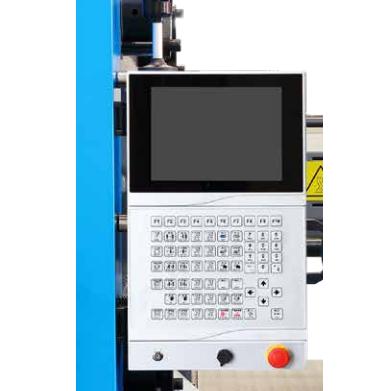

Control System–410 ton Injection molding machine
Manufacturers equip the 410-ton automatic forming machine with a touch-screen interface.
Moreover, its powerful Kmotion control system seamlessly integrates various peripherals.

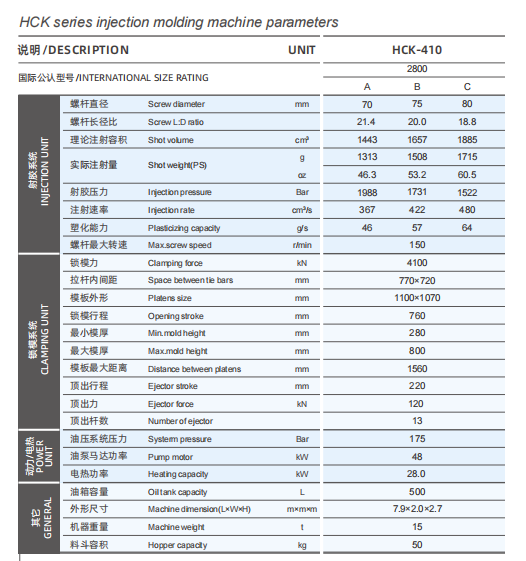

Parameter of 410 ton injection molding machine
The parameter of the Haichen 400-ton injection molding machine, separated to 3 parts:
- injection unit
- clamping unit
- other details
Injection unit parameter
The parameter for the injection unit will show the screw size, injection volume, and injection weight.
Also, it will show the plasticizing capacity.
Plasticizing capacity measures the grams of plastic a machine meters per second.
Moreover, the 410-ton machine’s parameters display its screw speed.
Clamping unit parameter
The parameter for the clamping unit is important for mould.
Like the space between tie bars, it limited the mould size.
If the mould size is larger than the space between the tie bars, therefore, the operator is unable to load the mould into the machine.
Parameter for others
The other details show the machine’s size and power.
Also, you can see the oil tank cubage and heating power.
The parameter of this machine are very helpful for customers to determine whether this injection molding machine meets their requirements
The advantages of a 410-ton injection molding machine
- The super-large servo motor features fast production speed and short cycle time
- The ultra-thick pressure plate design can withstand constant high-speed injection
- The main components have high rigidity and a long service life
- High-speed injection device
- Closed-loop injection
- Digital proportional back pressure system
- Touchscreen LCD display, with multiple language options available
- Automatic safety door device
- Oil temperature control system
- The connection part of the oil cooler adopts a more robust design

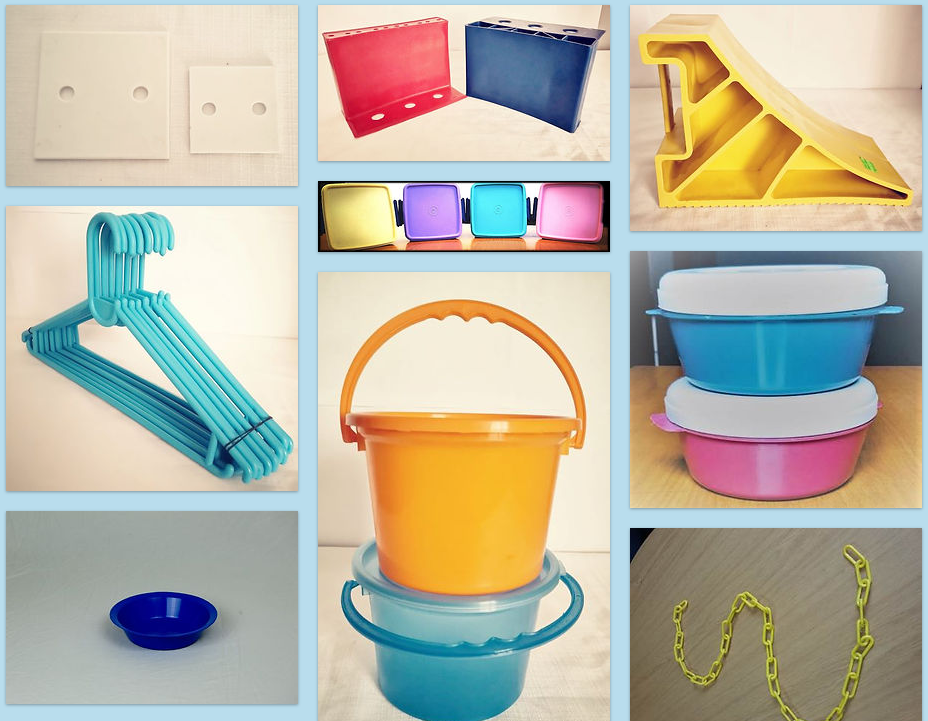

The application of a 410-ton injection molding machine
It is applicable to various plastic buckets, baskets and turnover boxes with high production capacity requirements.

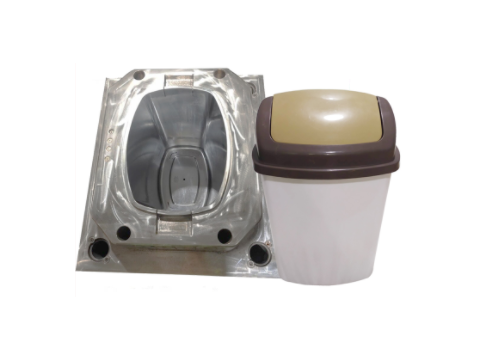

And other medium-sized household items such as trash cans, industrial items such as auto parts, etc.
Haichen 410 tons injection molding machine
Ningbo Haichen Machinery was established in 2005, the main production of high-precision injection molding machine has nearly 20 years of experience.
The product has a high rigidity clamping structure, is equipped with imported hydraulic and electrical components.
The use of mixing head bimetallic screw, good plasticizing capacity.
Suitable for injection molding of various engineering plastic products and can accept special orders from users.
Which can meet the production of most of the daily plastic products and the needs of customers.
Which is different from ordinary machines and has better durability.
