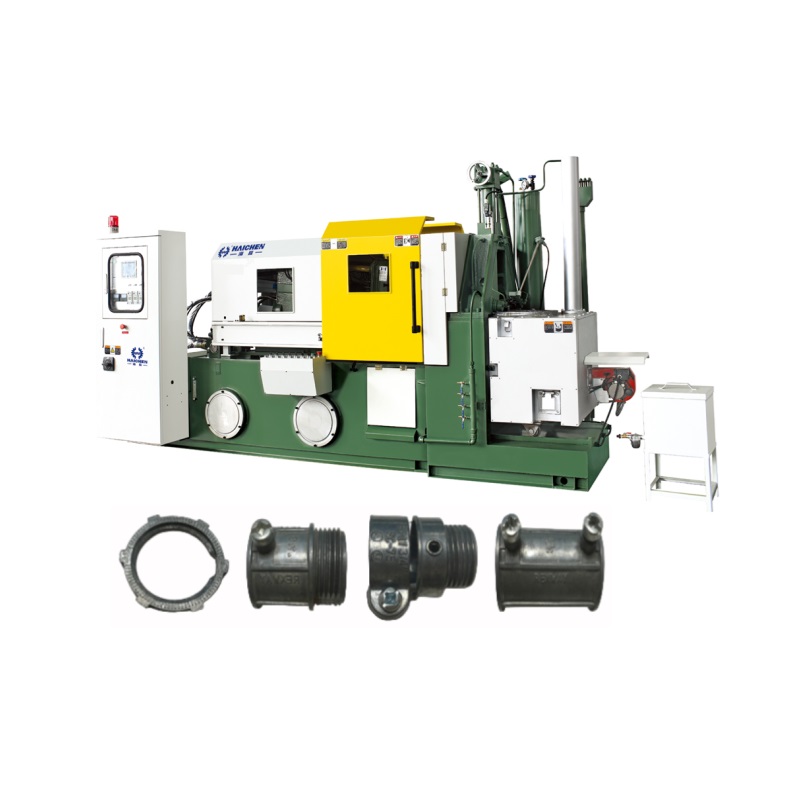

The hot chamber die casting machine that Haichen recommends to you is a model for improving casting efficiency.
With innovative design and superior features, our zinc alloy Pipe fittings making machine production line can turn die casting production into a simple task.
No matter what kind of casting pipe fittings you need, our excellent team of engineers can produce the corresponding die casting machine and galvanized pipe fitting mold for you.
Our wide range of die casting machines is available in different models and sizes to meet the specific needs of different customers.
This ensures that every producer can find the right machine.
All of haichen’s zinc pipe fittings production die casting machines options are extremely durable.
We use resilient materials that can withstand a wide range of external forces such as vibration and noise.
This maintains the highest level of performance throughout their long lifespan.
In addition, we offer comprehensive technical support and spare parts warranty,
which gives you what you need in time to ensure that your galvanized pipe fittings’ efficient automated production does not come to a standstill.

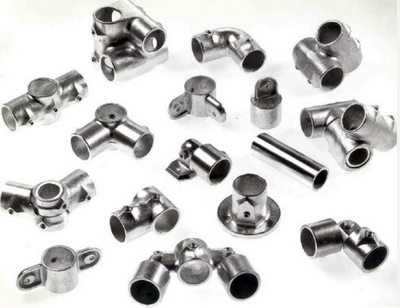

Zinc Pipe Fittings
Zinc alloy pipe fitting is a connection tool between pipes and pipes and is a connection point between components and pipes that can be disassembled and assembled.
It plays an indispensable and important role in zinc alloy pipe fitting, and it is one of the two main components of hydraulic piping.
Zinc alloy pipe fittings are used for linear connections such as instruments,
and the connection forms are socket welding or threaded connections.
Galvanized pipe fittings are mainly used for small-diameter low-pressure pipelines,
for parts that need to be assembled and disassembled frequently,
or for the final adjustment of pipelines using threaded fittings.
The structural form should adopt the metal surface contact sealing structure,
and the structural form of gasket sealing is usually used to transport water, oil, air, and other general pipelines.
How to make zinc pipe fitting?
zinc pipe fittings are a kind of non-ferrous metal pipe.
It refers to small fittings made of pure zinc or zinc alloy die-casting, which can be connected to metal tubular materials.
The different types of galvanized pipe fittings are then connected to form a complete functional line.
The zinc pipe fittings production
The zinc pipe fittings production is connected with the zinc pipe, and the connection is firm and leak-free.
Most zinc-to-aluminum tube threads bond together quickly and permanently.
Zinc is known for its corrosion resistance and is lighter than steel or copper.
A zinc pipe fitting production line is suitable for both indoor and outdoor applications, including pipes, racks and railings, and compressed air systems.
For example, the drainage system in the house will use galvanized pipe fittings.
zinc pipe fittings production comes in a variety of sizes and shapes, zinc tubes are widely used in various industries.
Such as automobiles, ships, aerospace, aviation, electrical appliances, agriculture, electromechanical,
and home furnishings, and zinc tubes are ubiquitous in our lives.

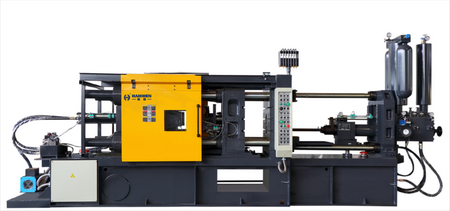

Zinc Pipe Fittings-Hot die casting machine
What machines are used to produce zinc pipe fitting? Hot chamber die casting machine.
Depending on the size of the fittings, we generally use hot chamber die casting machines ranging from 50 tons to 180 tons.

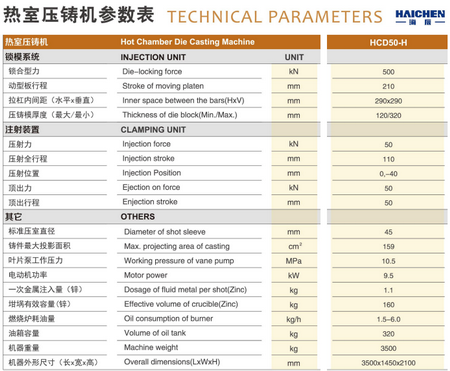

Technical data of 50ton zinc pipe fitting hot chamber die casting machine as follows:
Hot die casting machine machine units
Apple Advanced Hydraulic Component From Europe And America
Adjustment Structure With Celerity & Equation
Optimized Design For Five PointDouble Toggle Link Mechanism
Structure Of Fixed Platen
Imported High-Class Industrial Controler-Screen Display Test-Control System
Up-To-Date Die Casting TechnologyHigh-Speed Press-Injection Device
These are the individual parts and components of the hot die casting machine, but we understand them simply, the die casting machine can be summarized into two parts:
the machine and the mold, to complete the production action, the machine needs to melt the raw materials (zinc blocks),
and then inject them into the mold in the machine, finally, the mold is closed,
the zinc pipe fittings are formed, and finally the mold is opened, and the finished product is taken out,
which is the complete casting pipe fittings production process.
The barrel used in the injection of the hot chamber die casting machine is installed on the injection mechanism,
and its main part is immersed in a crucible filled with molten alloy that maintains a constant temperature, and the injection motion is up and down.
The advantages of the hot chamber die casting machine are simple production process, high efficiency, low metal consumption, and stable process.
Hot chamber die casting machines are generally only used for the production of zinc and magnesium alloy die castings that are less aggressive to pressure chamber components, so they are used to produce zinc alloy pipe fittings.
Since no additional pouring operations are required, hot chamber die casting machines save cycle time and are more productive than cold chamber die casting machines.
Zinc alloy blocks
Zinc alloy is a commonly used metal material, with good strength and corrosion resistance,
which is widely used in machinery manufacturing, electronic equipment, automobile industry, and other fields.
The following is the process flow of zinc alloy.
First of all, raw materials need to be prepared before zinc alloy processing, including zinc alloy ingots and other auxiliary materials.
Zinc alloy ingots are solid materials smelted into zinc and other alloying elements in a certain proportion,
and choosing the right zinc alloy ingot can improve the performance of the zinc alloy pipe fittings.
Melted
Once the melting is complete, the liquid zinc alloy is poured into a pre-made mould.
Casting molds are generally made of sand molds or metal moulds, and can be designed according to the shape and size of the product.
In the pouring process, it is necessary to pay attention to avoid the generation of bubbles and the mixing of impurities to ensure the quality of galvanized pipe fittings.
Cooling and curing phase
This is followed by galvanized pipe fitting in a cooling and curing phase.
The liquid alloy is pressed into the mould of the hot chamber die-casting machine, where it is gradually cooled and solidified.
The rate and time of cooling depend on the specific alloy composition and product requirements.
Once cooled, the solidified fitting can be removed from the machine.
Subsequent processes
After the zinc alloy pipe fitting is removed, it needs to carry out subsequent processes such as sand removal, cleaning, and trimming,
First, the zinc alloy parts are sandblasted or mechanically cleaned to remove the casting sand and impurities on the surface.
It is then spray-washed to remove any remaining oil and dirt.
Finally, the surface of casting pipe fitting is trimmed to eliminate possible defects such as burrs, bumps, and bumps, and the last link is surface treatment.
Depending on the requirements of casting pipe fitting, operations such as spray plating, oxidation,
or sandblasting can be carried out to improve the appearance and performance of casting pipe fitting.
Zinc alloys can usually be chrome-plated, nickel-plated, sprayed with anti-rust paint, etc., so that they have better corrosion resistance and decorative effects.

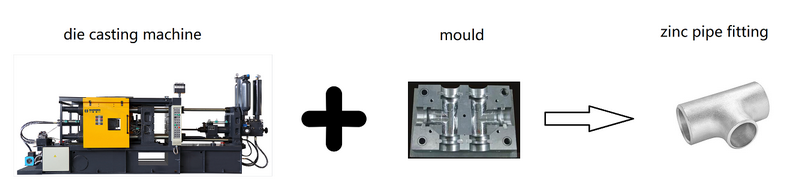

That is, if you want to produce zinc pipe fittings, you need an hot die casting machine, as well as the relative mould.

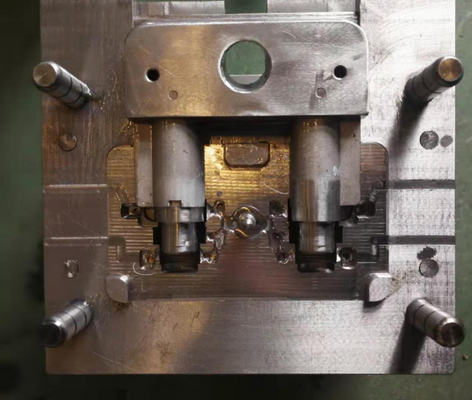

Zinc Pipe Fittings Mould
Fittings of different sizes and shapes can be customized with the corresponding die-casting moulds.
The die-casting mould is mainly composed of two parts, including the fixed (fixed) and movable (ejectoring) halves of the mould, so the mould has two parts.
The fixed part of the mould is installed on the fixed plate of the die-casting machine;
The ejector part of the mould is fixed on a movable fixed plate, after the production is completed, workers need to manually clamp out the casting pipe fitting.
Especially for complex zinc pipe fittings moulds,
it is necessary not only to have sophisticated processing equipment and professional mould manufacturing employees,
but also to have excellent zinc pipe fittings mould design.
In order to avoid unnecessary hassle in the manufacture of fittings, manufacturers should perform a comprehensive analysis of the fittings.
Even if the fittings are of the same material but different sizes and styles, and separate moulds are required to produce casting pipe fitting.
How to choose the machine according to zinc pipe fittings
The first step of matching the mould and the machine is to confirm the size of the zinc pipe fittings.
Because the mould is to be produced in the die-casting machine, so the size of the mould can not exceed the distance between the tie rods of the die-casting machine.
Otherwise the mould can not be put into the die-casting machine, and can not be produced.
And the size of the mould is not equal to the size of the zinc pipe fittings,
according to the actual situation, the length, width and height of the mould will be dozens of centimeters larger than the length, width and height of the zinc pipe fittings.
Advantages of Haichen die casting machine
Ningbo Haichen machinery was founded in 2005, Located in Ningbo, Zhejiang, China. HAICHEN specializes in the production and sale of hot chamber die-casting machines.
HAlCHEN always places more emphasis on the technology and management.
Because of its advanced technology, high quality and effective management.
“HAlCHEN’s hot chamber die-casting machines has won the trust from our clients at home and abroad.
Our die-casting machines adopts hydraulic components with advanced technology from Europe and the United States.
Adjustment Structure with Celerity &Equation
Optimized Design For Five Point Double Toggle Link Mechanism
Structure Of Fixed Platen
Imported High-Class Industrial Controller-Screen Display Test-Control System
Up-To-Date Die Casting Technology, High-Speed Press-injection Device

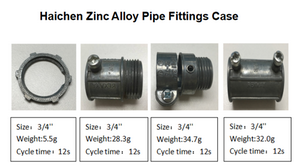

Successful cases
Their excellent safety features provide comfort to operators and protect them from the risk of work-related injuries.
Haichen’s range of zinc pipe fittings prodcution die casting machines are popular with many users because they are very versatile and practical in different areas of use.
If clients are intereste in Zinc pipe fitting machine price, can contact our Haichen machinery freely.
With the right technical support, they are simple to install and maintain.
Their extremely low failure rate makes them very reliable, and the ready availability of spare parts ensures immediate resumption of operation in the event of an unexpected breakdown.
Haichen zinc pipe fittings making machine will be a great help for your business!

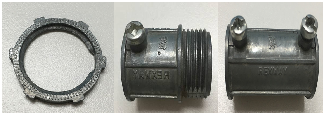

The metal fittings are made of zinc alloy die-casting, and the surface is galvanized, frosted, or chrome-plated.
The structure is compact and the strength is high.
The steel pipe and metal hose are connected reliably and the appearance is beautiful.
And Haichen has designed different sizes of pipe fittings for customers, which have good sealing.
Whether it is in the design of casting pipe fittings or the selection of machines,
Haichen has the ability to provide customers with the best service,
our casting pipe fittings have excellent cost-effective advantages, and can achieve efficient production for customers.
