An aluminum radiator die casting machine is a kind of equipment used to manufacture aluminum radiators.
It produces parts by injecting molten metal into the mold cavity under high pressure and cooling it rapidly. Cold chamber die casting machine is suitable for high melting point alloys such as aluminum and magnesium.
Aluminum radiator die casting machine is widely used in automotive parts, consumer electronics, and other fields, with the advantages of high production efficiency and dimensional accuracy.
An aluminum radiator die casting machine is a key piece of equipment for producing efficient and durable aluminum radiators. Its production process requires precise control of process parameters to ensure product quality.
About the Aluminum radiator making machine
The Aluminum radiator making machine is indeed a die-casting machine. According to the evidence, the die-casting machine is a mechanical device used for pressure casting, which hydraulically injects molten metal into the mold under pressure and cools it into shape.
In addition, the production process of aluminum alloy radiator also clearly mentions the use of high-tonnage die-casting machine for integral die-casting. Therefore, it can be confirmed that the production machine of aluminum alloy radiator is a die-casting machine.
An aluminum radiator die casting machine is a special equipment used to produce aluminum radiators. This machine usually adopts a cold chamber die-casting process to inject molten metal directly from the furnace into the mold for molding.
In the production process of aluminum radiators, common alloys such as AA380, AA384, and AA360 are used. These alloys are widely used because of their excellent mechanical properties and processing characteristics. For example, AA380 alloy contains 7.5 to 9.5% silicon and 3 to 4% copper, with good fluidity and high strength.
By selecting suitable aluminum alloy materials and advanced die casting processes, aluminum radiator die casting machines can produce high-quality and high-performance radiator products to meet the needs of various industrial applications.
Aluminum Radiator Die Casting
Pouring device:
Used to inject molten metal into the mold, which is a key step in the die-casting process.
Pick-up device:
Responsible for taking out the die-casting from the mold, usually using robots or manipulators to achieve automated operation.
Spraying device:
Spraying treatment on the surface of the die-casting to improve its surface quality and corrosion resistance.
Hydraulic core pulling device:
Used for the core pulling action of the mold to ensure that the die-casting can be de-molded smoothly.
Clamping force display device:
Real-time monitoring and display of the clamping force when the mold is closed to ensure the stability and safety of the production process.
Die-casting process parameter testing device:
Used to detect and record various parameters in the die-casting process, such as temperature, pressure, etc., to optimize the production process.
In addition, according to user needs, other auxiliary equipment can also be equipped, such as a trimming press, cooling system, exhaust system, machining machine tools, testing equipment, etc., which together constitute a complete die-casting production unit, the so-called “die-casting island”
Radiator Semi-finished product deep processing machine
Further processing:
The semi-finished products after casting need further processing, including cutting, grinding, polishing, etc., to achieve the required size and surface quality of the final product.
Heat treatment furnace:
Finally, the semi-finished products may need to be heated and kept warm again in the heat treatment furnace in order to complete all necessary heat treatment processes.
How do you choose the die casting machine for radiator production?
Search for die-casting machines of different tonnages based on the radiator’s size and the radiator’s mold cavities.
The radiator normally has 3 sizes: 350mm, 500mm, 600mm.
Also, the radiator casting mold has two designs: 1 cavity and 2 cavities.
So when we choose the die casting machine for the radiator, we need to consider two parts: the size of the radiator and the cavity of the radiator mold.
The details for the machine tonnage choose:
- HCD-300 die casting machine suit for 350mm radiator ;
- HCD-500 die casting machine suit for 500mm radiator;
- HCD-800 die casting machine suit for 600mm;
- HCD-1250 die casting machine suit for 2 cavities radiator casting mold.
How do you manufacture a radiator with Haichen cold chamber die casting machine
Purchase a high-quality Haichen cold room aluminum alloy radiator die-casting machine.
Choose the appropriate radiator size.
According to your building industry or relevant standards, choose a radiator design with center holes 50 or 60cm apart.

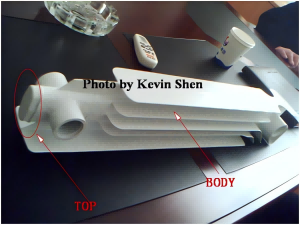

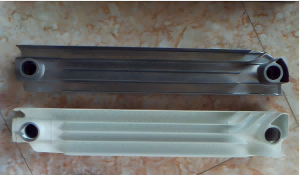

Determines the type of radiator
Pure aluminum alloy or embedded steel pipe
Select the configuration of the automation auxiliary machine
When selecting an auxiliary machine configuration for the production line, choose the configuration you need to increase the degree of automation of the die-casting production line.

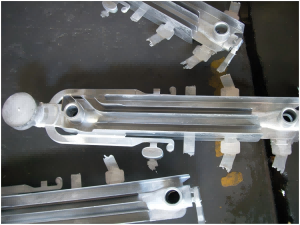

Post-processing of die-cast radiators
Hydraulic trimming machines, belt grinders, and shot blasting machines are customized to complete the fine trimming and regularization of the product’s flash edges for subsequent surface treatment.
China Radiator Factory Suppliers
Aluminum alloy radiator products are used in large quantities and the market scale continues to expand.
Aluminum alloy radiators are widely used in machinery manufacturing, the electrical industry, the railway industry, the automobile industry, and other fields.
They have excellent thermal conductivity, good heat dissipation performance, and lightweight structure. These technical advantages make aluminum alloy radiators widely used in various industrial fields.
The market of the aluminum alloy radiator industry is also changing. Many reports have analyzed the pattern, pointing out that the market competition is fierce, but new technologies and products are constantly emerging.
Chinese companies have rich production experience in the production of radiator radiators. In recent years, China has made significant progress in the design and manufacture of radiators.
Haichen has been deeply engaged in the production line configuration of aluminum alloy radiator radiators for many years and has accumulated rich experience.

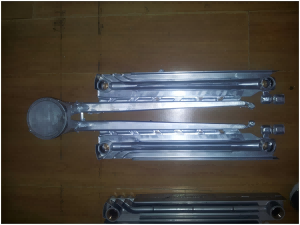

Haichen’s aluminum radiator success case
Our Haichen regular cases
- 2 Cavities production line
- Cycle time: 45 sec /2 pcs
- Production: 160 pcs / H 500mm1.4kg each
Other issues

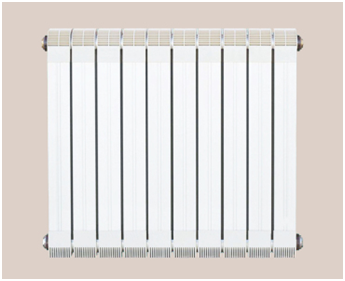

Aluminium heater radiators, according to the center hole spacing are generally available in three sizes: 350mm,500mm, and 600mm.
Produce 350mm, one cavity with 300 tonnes. If this is your new project, you can do this program with a low total amount.
To produce 500mm, one cavity, you need 500 tonnes of machine. 500mm, two cavities, with 800 machines. But the machine has to be modified. The material of the tie rod should be changed, and the clamping mold should be increased to 1000T.
Produce a 600mm large-sized radiator, internal speculation steel tube, and two cavities with 800 machines. Produce 600mm, all-aluminum radiator, two cavities, with 1380 machines.
Pick-up machine: need with deflection function. 2 cavities, 800 tonnes, deflection degree 15 degrees.
Mould design
According to different radiator blades, design the position of the runner and tie wrapping to ensure that all thin ribs are molded in place.
In the aluminum heater radiator die-casting production, the most labor-intensive automation is equipped with a six-axis robot production line.
This needs to be reasonably placed in the periphery of the machine iron cooling conveyor belt, hydraulic cutting machine, polishing and deburring machine. Greatly improve the production efficiency of the whole cycle.
Haichen is an aluminum alloy radiator die casting machine manufacturer, providing production lines for many international aluminum alloy products and aluminum alloy radiator manufacturers. We have very rich experience in the field of metal die casting. Our cold chamber die-casting machines have a wide range of applications, stable operation, environmental protection, and high production efficiency.
With more than 20 years of experience in this field, we have well-trained workers, experienced engineers, and service teams to manufacture molding machines. We are committed to providing quality services to every customer around the world.
