A snow shovel machine is used to produce plastic snow shovels. It molds plastic materials into the desired shovel shape.
Plastic shovel, as a typical product manufactured by injection molding machines, is widely used in household and commercial environments for their lightness and durability. These tools are usually made of plastic materials such as polyethylene (PE) or polypropylene (PP) and are molded in one go by efficient injection molding machines, ensuring the accuracy of the design and the sturdiness of the structure. The ergonomic design of plastic shovels provides a comfortable grip. At the same time, they are easy to clean, cost-effective, and corrosion-resistant, making them ideal for kitchen, gardening, and industrial applications.

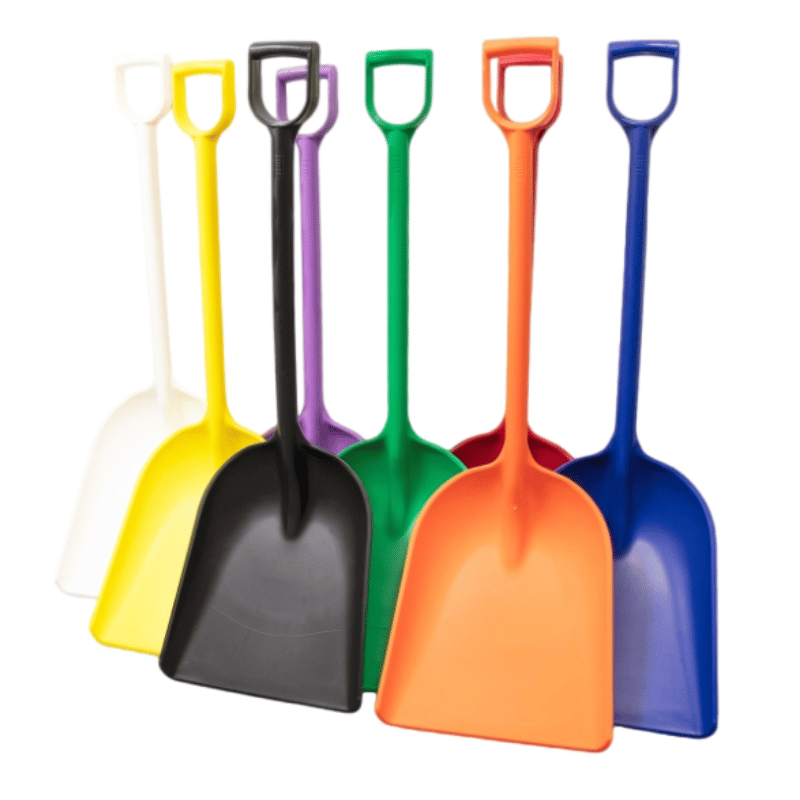

Introduction to Plastic Shovel
Application:
Home kitchen: used for stirring, stir-frying, or serving food during cooking.
Food service industry: used as tableware or in food preparation.
Gardening: suitable for shoveling soil, transplanting plants, and gardening maintenance.
Industry: used for moving materials or as tools during production.
Type:
Snow shovel:
Snow shovels are designed for shoveling snow in winter and usually have a wide and sturdy plastic shovel surface for efficient pushing and collecting snow.
It is usually equipped with longer handles to provide better leverage when using, reduce bending or exerting force, and make shoveling snow easier.
Durable materials such as high-density polyethylene (HDPE) are often used in the manufacture of snow shovels to withstand cold and wet environments.
Sand shovel:
A sand shovel is suitable for use on the beach. It is usually smaller and lighter than a snow shovel, which is perfect for beach activities such as building sand castles or digging sand pits.
Sand shovels usually have a short handle to make it easier to carry to and from the beach.
Sand shovels may have special design features, such as a bucket for collecting sand or a flat shovel face for smoothing the surface.
Advantages:
Durability: They are usually made of high-density polyethylene (HDPE) or other wear-resistant materials to withstand harsh environments and long-term use.
Lightweight: Plastic material reduces the weight of the tool, making it easier to use for a long time.
Corrosion resistance: Plastic shovels are naturally resistant to salt, sand, and chemicals, suitable for use in a variety of environments.
Easy to clean: The plastic surface is easy to wipe or rinse, and maintenance is simple.
Snow shovel production materials
Snow shovel production materials generally include PP (polypropylene), PE (polyethylene), and HDPE (high-density polyethylene), each of which brings different uses and advantages to the manufacture of snow shovels:
PP (polypropylene):
Use PP snow shovels are usually used for lightweight snow removal tasks and are suitable for home and small area snow clearing.
Advantages: PP has excellent chemical and heat resistance, and can maintain its shape and performance even in low-temperature environments. In addition, PP materials are lightweight and easy to handle.
PE (polyethylene):
Use: PE snow shovels are suitable for medium-intensity snow removal work and can be used in residential areas and small commercial areas.
Advantages: PE materials have good wear resistance and flexibility, and can remain elastic in cold conditions. PE snow shovels are generally cost-effective and suitable for large-scale production.
HDPE (high-density polyethylene):
Use: HDPE snow shovels are designed for industrial-grade or professional snow removal, suitable for heavy-duty snow clearing in urban streets, large parking lots and commercial areas.
Advantages: HDPE is known for its extremely high impact resistance and durability, and can remain stable even in extreme cold and high pressure conditions. HDPE snow shovels are usually designed with reinforcement ribs to improve structural strength and durability.
Overall, snow shovels made of PP, PE and HDPE each have their own characteristics. Choosing the right snow shovel material can ensure the best performance and longest service life when removing snow in winter.
Snow shovel production process
In the field of plastic product production, injection molding machines are key equipment for manufacturing various plastic parts. Especially for shoveling machines and shovel making machines. These machines usually use injection molding technology to produce various types of shovels, including heavy-duty snow shovels. Injection molding machines can quickly produce complex and durable plastic snow shovels by injecting molten plastic into precision molds. These plastic snow shovels are favored for their lightness, corrosion resistance, and easy operation, making them ideal tools for dealing with winter snow. The following are the production process steps of snow shovels.

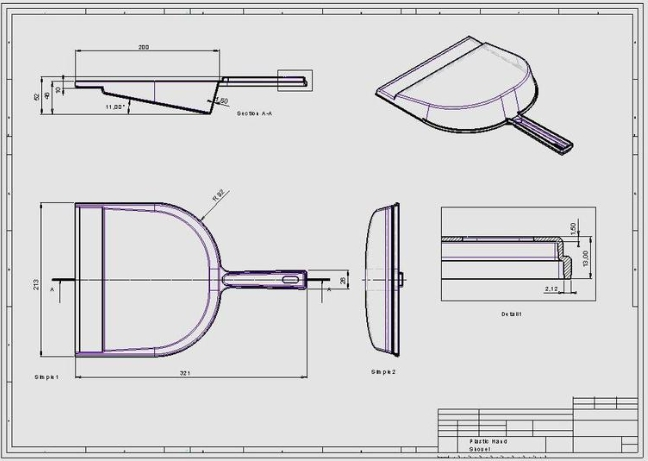

Design drawings:
First, engineers use CAD software to draw the design drawings of snow shovels according to product requirements and technical parameters to ensure that every detail meets the design specifications and functional requirements.
Mould manufacturing:
According to the design drawings, precise molds are manufactured. The quality of the mold is directly related to the shape and precision of the product and is usually made of steel to withstand high pressure and high temperature.
Injection molding:
Injection molding is the core step in the production of snow shovels, including the following sub-steps:
- Heating and plasticizing:
Plastic materials such as PP, PE or HDPE are heated to a molten state to make them fluid so that they can be injected into the mold.
- Injection:
The molten plastic material is injected into the precision mold under high pressure, filling every corner of the mold to form the initial shape of the snow shovel.
- Pressure holding:
The injection molding machine maintains a certain pressure to ensure that the plastic material is fully filled in the mold and reduce the generation of bubbles, while the plastic begins to cool and solidify.
- Cooling:
The plastic cools and solidifies in the mold. This process requires precise time control to ensure the hardness and stability of the snow shovel.
Demolding and trimming:
Once the plastic is fully solidified, the mold is opened and the snow shovel is taken out. Then the trimming process is carried out to remove burrs and excess plastic on the edge of the product to ensure that the product is smooth and neat.
Key points of plastic snow shovel injection molding machine
Temperature control:
Temperature control is a crucial part of injection molding. The plastic material needs to be heated to a suitable melting temperature to ensure fluidity, but not too high to cause the material to decompose. Different plastic materials, such as PP, PE, and HDPE, have their own specific melting temperature range.

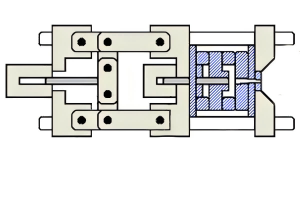

Injection speed and pressure:
The injection speed needs to be adjusted according to the viscosity of the plastic material and the complexity of the mold. The appropriate injection speed can ensure that the material fills the mold evenly and avoids bubbles and material discontinuity. The injection pressure is related to whether the material can overcome the flow resistance and completely fill every corner of the mold.
Cooling time:
Cooling time determines the length of time the plastic solidifies in the mold. Sufficient cooling time can ensure that the plastic shovel is fully solidified before demolding to avoid product deformation. The cooling process needs to be properly controlled to ensure the dimensional stability and mechanical properties of the plastic shovel.
Mold design:
Mold design is critical to the success of injection molding. The mold must accurately reflect the final shape and size of the plastic shovel, while considering the gate system, cooling channels, and demolding mechanism. Mold material and surface treatment will also affect molding efficiency and product quality.

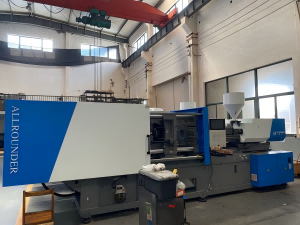

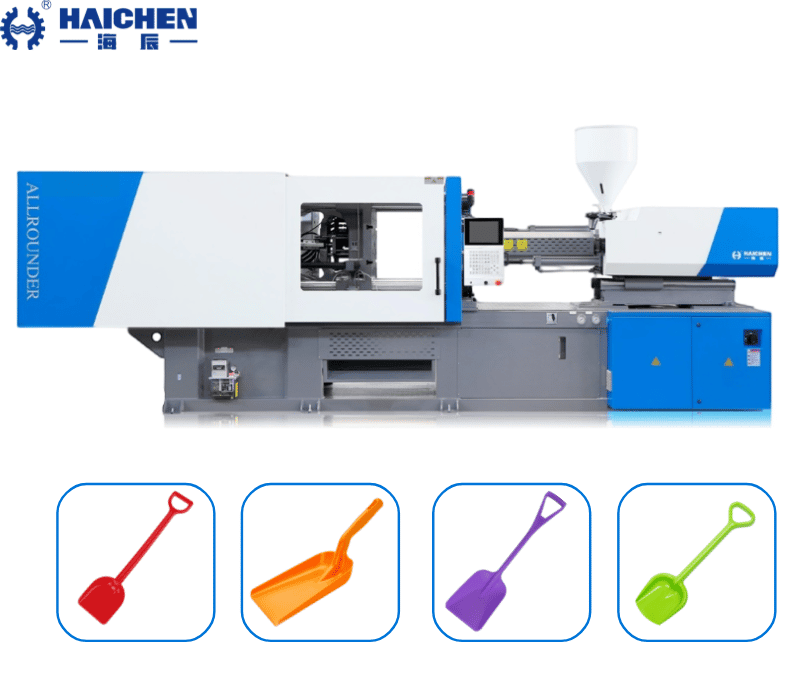

Advantages of Haichen snow shovel injection molding machine
Professional customization:
Haichen snow shovel injection molding machine can customize professional injection molding solutions suitable for snow shovel production according to the needs of different customers.
High-efficiency injection molding system:
Equipped with a high-performance injection molding system, it ensures fast and uniform material filling, suitable for the manufacture of large plastic products such as snow shovels.

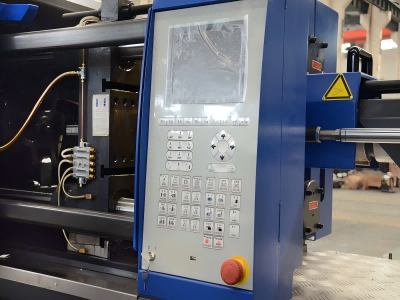

Precision temperature control:
An advanced temperature control system ensures the temperature uniformity of plastic materials during melting and solidification to avoid material damage.
Automation capability:
Haichen injection molding machine supports high-level automation options. Which including automatic feeding, automatic molding, and robot integration, to improve production efficiency and consistency.
Durability and reliability:
Equipment design focuses on durability and reliability, reducing downtime and extending equipment life.
Energy-saving design:
Electric energy-saving technologies such as servo motor drives are used to reduce energy consumption and achieve cost-effectiveness.
Easy operation and maintenance:
A user-friendly operation interface and simplified maintenance process ensure fast production switching and easy daily maintenance.
Technical support and service:
Provide comprehensive technical support and after-sales service to help customers solve technical problems encountered during the production process.
About us – Haichen snow shovel injection molding machine
Haichen Injection Molding is an enterprise focusing on the research and development and manufacturing of injection molding machines, with many years of industry experience and technical accumulation. We are committed to providing high-quality injection molding machines and customized solutions to meet the needs of different customers. If you have any needs for plastic shovel production lines, please feel free to contact us. We can use our expertise and experience to help you develop the best solution based on your specific needs.
