Injection Unit Specifications of 360 Ton Injection Molding Machine:features 65-75mm screws, 2071 Bar pressure, and 468cm³/s injection rates.
The importance of injection molding machines in any manufacturing concern cannot be understated, and every part of such machines, including the injection unit, affects the quality and quantity of production achieved.
Realizing the need to examine the injection unit’s specifications in accordance with standards of various machine capacities is crucial to enable the machine achieve the highest possible production and quality.
This paper aims to look into the major specifications of the injection unit in a 360-ton injection molding machine, analyzing the components that allow the machine to produce with a high production rate and high quality.
Moreover, we will examine in what ways these specifications improve the machine’s overall dependability and effectiveness in different manufacturing processes.

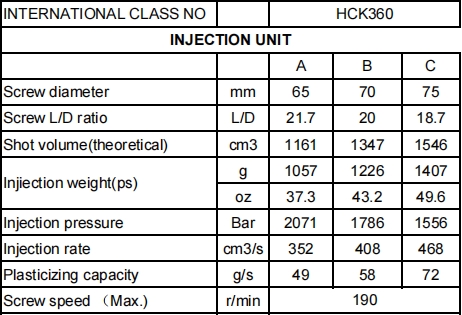

Injection Unit Specifications of 360 Ton Injection Molding Machine
- Screw and Barrel System
- Injection Performance
- Energy Efficiency
Screw and Barrel System
- Screw diameter:65–75 mm (3 options)
- L/D ratio:7–21.7 (optimized for material mixing)
- Plasticizing capacity:49–72 g/s (varies with screw size)
- screw speed: 190 r/min
Injection Performance
- Theoretical shot volume: 1,161–1,546 cm³
- Injection pressure: 1,556–2,071 Bar
- Injection rate: 352–468 cm³/s
Energy Efficiency
- Heating power: 23 kW
- Servo-driven system:Reduces energy consumption by 30–50% compared to hydraulic machines.
HAICHEN: Your Partner in Precision Injection Molding
HAICHEN considers quality and dependability a priority when designing and manufacturing 360-ton injection molding machines. Used in automotive part production, consumer electronics, and various industrial components, HAICHEN machines are designed to produce the highest quality components with maximum efficiency.
Why Choose HAICHEN’s 360-Ton Machine?
- Accuracy: ±1 mm tolerances on automotive parts and other complex pieces.
- Versatility: Custom screw/barrel configurations available for PET, PP, ABS.
- Durability: Mold Withstand capacity of 3,600 kN for the industrial clamping unit ensures stability even during high-pressure injection.
Typical Applications of 360-Ton Machines
- Automotive: Instrument panels (PP+talcm), headlight housings (PC) with high gloss and impact resistance.
- Packaging: Thin-wall containers (injection rate >350 g/s), bottle caps (multi-cavity molds).
- Electronics: LCP connectors, housings with precision over 0.05 mm.
- Consumer Goods: Mass produced furniture parts, bins (HDPE), and safety goggles (PC).
- Case Study: Over 8s for 64-cavity molds with cycle times > 234 g/s HAICHEN’s 360 ton machine.
For every 360-ton injection molding machine, the injection unit specifications ensures optimal quality and efficiency. Flexibility on screw diameter, L/D ratio, injection volume, pressure, rate, and plasticizing capacity of the machine allows for diverse customization to suit varying production needs.
HAICHEN’s HCK360 demonstrates high-performance injection molding with energy efficiency. The 360 ton machine provides a considerable competitive advantage to the economic sectors demanding high volumes of even quality plastic parts.
