Mold pressure plate manufacturing process involves multiple steps that need to be precisely controlled to ensure high quality mold forming and injection results.
The mold pressure plate is a critical component in injection molding machines, ensuring precise control over the clamping force applied to the mold during the injection process.
This component plays a crucial role in maintaining the quality and consistency of the final product.
In this article, we will explore the manufacturing process of mold pressure plates and their role in the injection molding process.
Additionally, we will discuss the importance of material selection, precision machining, and heat treatment in producing high-quality pressure plates that contribute to the overall efficiency and reliability of injection molding operations.
The Core Functions and Importance of the Mold Pressure Platen
The mold pressure platen is a core component of the injection molding machine’s clamping system, fulfilling the following key roles:
- Mold Fixing and Guiding: It secures the movable and fixed molds, ensuring mold clamping accuracy, and provides linear guidance for the movable pressure platen.
- Force Transmission and Distribution: It evenly transmits the clamping force to prevent mold deformation that could cause flash or dimensional deviation.
- Thermal Management and Stability: Built-in cooling systems (such as Haichen’s cooling channel design) control mold temperature and reduce thermal deformation.
- Dynamic Operation Support: The movable pressure platen must precisely execute the four-stage movement of closing, opening, ejection, and reset, directly impacting the efficiency of the molding cycle.
- Technological Evolution: Modern pressure platen designs (such as Haichen’s five-point double-toggle structure) utilize a box-type bridge structure to optimize rigidity, utilize finite element analysis to reduce deformation, and improve repeatability. Magnetic pressure platen technology replaces hydraulic clamping with magnetic attraction, increasing mold design freedom and mold change efficiency.
Injection molding machine mold pressure plate process
The following is the mold pressure plate manufacturing process for injection molding machine.
- Mold Design and Manufacturing
- Mold closure and fixation
- Material heating and melting
- Injection and Filling
- Pressure Holding and Cooling
- Post-treatment and quality control
Mold Design and Manufacturing

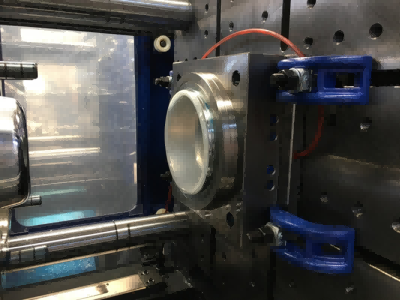

- Injection molds usually consist of two metal plates called the moving mold (plate B) and the fixed mold (plate A).
- Mount the moving mold at the nozzle of the injection molding machine, while the fixed mold is fixed to the clamping device of the machine.
- The design of the mold requires consideration of high-precision machining, including precision manufacturing of key components such as oil holes and cooling systems.
Mold closure and fixation of mold pressure plate process
- During the injection molding process, the mold is hydraulically or mechanically closed and secured.
- The moving and fixed molds are tightly fitted by means of a clamping device to ensure that the mold cavities are hermetically sealed. This process requires a certain amount of pressure to prevent material leakage.
Material heating and melting
- The plastic granules are fed into the hopper of the injection molding machine and melted into a melt by screw heating and shearing.
- Control the melt temperature and pressure by the hydraulic system of the injection molding machine to ensure proper flow of the melt.
Injection and Filling of mold pressure plate process
- Molten plastic is injected into the mold cavity through the nozzle of the injection molding machine. The injection pressure is provided by a screw or a hydraulic cylinder and usually ranges from 500 bar to 3000 bar.
- The injection speed and pressure need to be adjust according to the material properties to ensure that the melt fills the mold cavity completely and to avoid defects.
- And the injection speed and pressure need to be adjusted according to the material properties to ensure that the melt completely fills the mold cavity and avoid defects.
Pressure Holding and Cooling
- After the injection is complete, Maintain the pressure in the mold cavity for a period of time (holding pressure) to ensure that the melt cools and solidifies sufficiently.
- Subsequently, the mold begins to cool, transforming the plastic from a liquid to a solid state. The cooling time depends on the thermal properties of the material and the cooling system of the mold.
Mold opening and product removal
- After cooling, open the mold and separate the moving and fixed molds. The ejector ram then pushes the molded product out of the mold.
- If there are electronic components or other inserts on the surface of the product. We should take special care to protect these parts.
Post-treatment and quality control
- Finished products may require further processing, such as deburring, grinding or surface polishing.
- In addition, check the product dimensions and surface quality by measuring and inspection tools (e.g. calipers, microscopes, etc.) to ensure compliance with design requirements.
Haichen injection mold supplier
Haichen is a supplier that mainly supplies injection molding machine. We design the molds for high precision and reliability, ensuring consistent part quality. This is crucial for producing complex geometries and detailed features with high accuracy.
If there is any problems about injetcion molds, welcome to contact us.
The manufacturing process of mold pressure plates involves careful material selection, precision machining, heat treatment, and rigorous testing to ensure high quality and performance.
By using high-quality materials and advanced manufacturing techniques, mold pressure plates can significantly enhance the efficiency and reliability of injection molding machines.
