Plastic bucket manufacturing machine parameters including:
- Injection volume
- Injection pressure
- Clamping force
- Screw diameter
- Injection speed
- Clamping device size
- Mold thickness
- Ejection stroke and ejection force

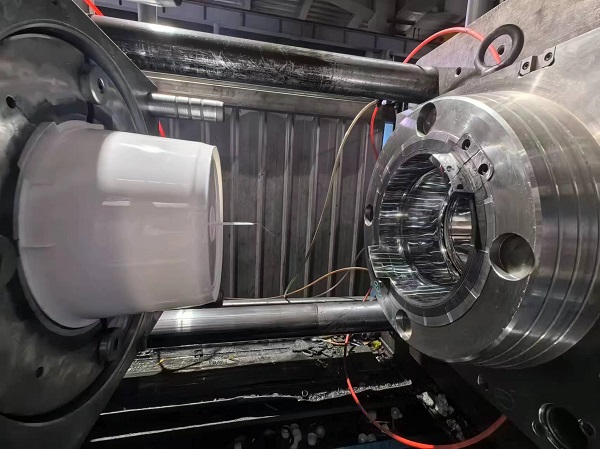

Plastic bucket Injection Molding Machine is a kind of equipment specially used to produce plastic buckets.
And its main function is to heat the plastic material to a molten state through the injection molding process.
And then inject it into the mold to form a plastic bucket.
What are Bucket Manufacturing Machine Parameters?
Parameters are guidelines or rules, so for an injection molding machine, parameters are the specific settings for multiple aspects of their operation to run for a certain part.
These parameters must be followed for the plastic material to flow smoothly through the machine and into the mold and to create a part without flaws such as sinkage, warping, or flash.

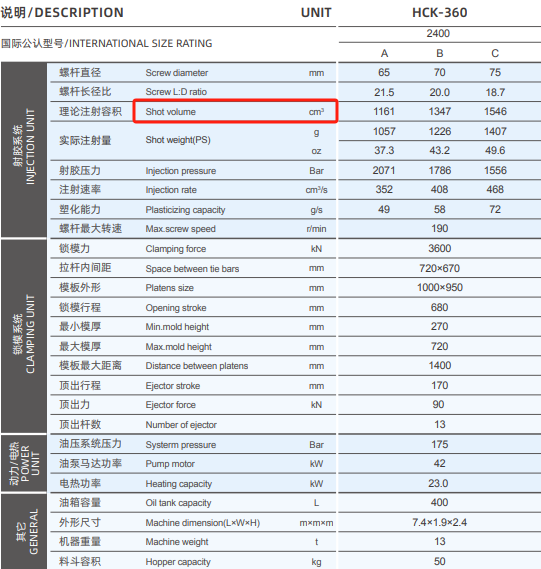

Plastic Bucket Manufacturing Machine Parameters——Injection volume
This refers to the maximum volume of plastic melt that an injection molding machine can inject in a single injection.
Usually expressed in cubic centimeters (cm³).
Plastic Bucket Manufacturing Machine Parameters——Injection pressure
This refers to the pressure exerted on the plastic melt during the injection process.
Usually expressed in megapascals (MPa).

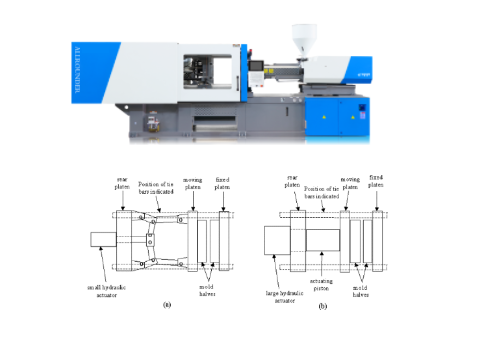

Plastic Bucket Manufacturing Machine Parameters——Clamping force
This refers to the maximum force that an injection molding machine can withstand when clamping.
Usually expressed in kilonewtons (kN).
Plastic Bucket Manufacturing Machine Parameters——Screw diameter
This refers to the diameter of the screw of the injection molding machine.
Which is usually expressed in millimeters (mm).
Plastic Bucket Manufacturing Machine Parameters——Injection speed
This refers to the speed at which the plastic melt is in the injection process.
Usually expressed in millimeters per second (mm/s).
Plastic Bucket Manufacturing Machine Parameters——Clamping device size
Including template size, tie rod spacing, etc.
Parameters such as formwork size and tie rod spacing also need to be considered.
Plastic Bucket Manufacturing Machine Parameters——Mold thickness
The maximum and minimum thickness of the mold limits the size of the mold that the injection molding machine can handle.
Plastic Bucket Manufacturing Machine Parameters——Ejection stroke and ejection force
This refers to the stroke and force when the product is ejected after the mold is opened.
Which is usually expressed in millimeters (mm) and tons (tons).
Other features
Including core-pulling device, gas assist, drying, mold temperature control, etc.
These features help improve molding quality and production efficiency.
Machine parameters and their influence on production capacity
There are several aspects to the specifications.
The clamping force of a plastic bucket making machine is usually between 200 and 2000 tons.
Higher clamping force generates greater pressure between the molds and allows the handling of larger molds.
Different injection rates also vary greatly.
Higher injection rates can fill the mold faster, shorten cycle time, and increase production.
The design and diameter of the screw affect the injection speed.
Screws with high-speed injection designs can process more material in a shorter time, thereby increasing production.
Higher injection speeds shorten the duration of the injection phase, thereby shortening cycle time and increasing productivity.
The cycle time of the entire injection molding process, including mold closing, injection, cooling.
And mold opening, is also a key determinant of production capacity.
To improve the cycle time, in addition to efficient cooling systems and mold opening designs, injection molding robots.
And other auxiliary equipment are also needed throughout the production process to simplify operation time and increase production capacity.

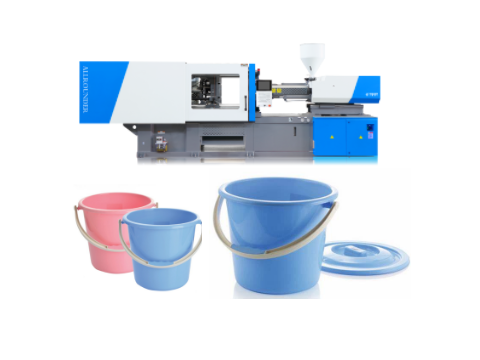

Haichen Plastic Bucket Manufacturing Machine

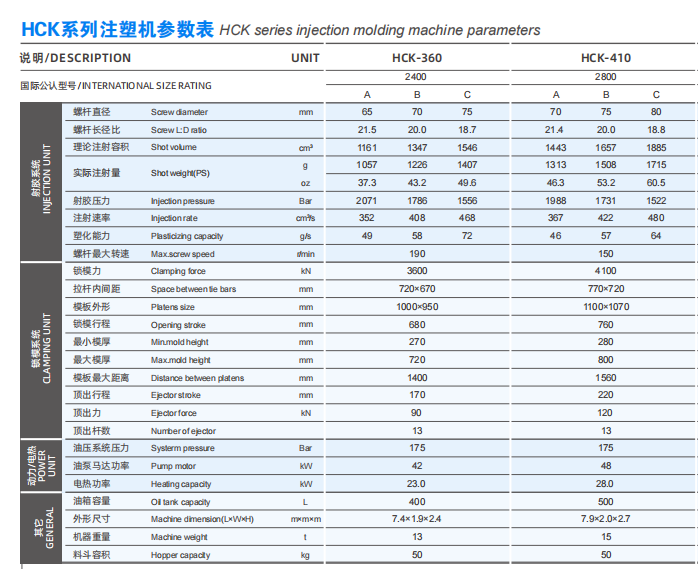

The HCK series injection molding machine is a special model specially developed by Haichen for the production of plastic packaging drums.
With a good mechanical structure and suitable for the requirements of drum making.
So it has significant advantages in terms of production efficiency and product stability.
