Injection molding cooling lines importance includes cooling line role, impact on product quality and efficiency, design principles and so on.
The importance of cooling lines in injection molding is reflected in many aspects. Its design and optimization have a profound impact on product quality, production efficiency and cost control.
Injection molding cooling lines importance: The role of cooling line

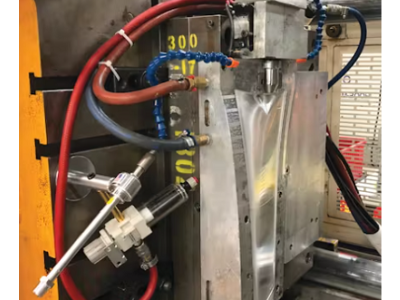

The cooling line is the core component of the mold cooling system. By introducing cooling medium (such as water or oil) into the mold, it quickly absorbs heat and accelerates the cooling. And solidificate process of the plastic melt. This process directly affects the molding cycle time, product quality and mold life.
Injection molding cooling lines importance: The impact of cooling lines on product quality
The design and layout of cooling lines directly affect the quality of molded parts. Uneven cooling may cause problems such as warping, shrinkage or internal stress in molded parts, which in turn affects dimensional accuracy and mechanical properties. For example, too long cooling time will extend the production cycle. While uneven cooling may cause deformation or defects in molded parts.
Injection molding cooling lines importance: The impact of cooling lines on production efficiency
The cooling stage usually accounts for 60%-70% of the entire injection molding cycle, so optimizing the cooling system can significantly shorten the production cycle and improve production efficiency. For example, the use of conformal cooling channels can distribute heat more efficiently, thereby speeding up cooling and reducing molding cycles.
Design principles of cooling lines
In order to achieve the best cooling effect, the design of cooling lines should follow the following principles:
- Uniform cooling: Ensure that all parts of the mold are cooled evenly to avoid molding defects caused by local overcooling or overheating.
- Optimized layout: The cooling line should be as close to the mold surface as possible and distributed along the shape of the part to improve cooling efficiency.
- Efficient material selection: Using materials with high thermal conductivity (such as copper or aluminum) to make cooling channels can help improve cooling efficiency.
- Advanced cooling technology: Using advanced technologies such as conformal cooling channels can further improve cooling efficiency and reduce molding cycle time.
Effect of cooling line on mold life
Reasonable cooling design can not only improve production efficiency, but also extend mold life. If the mold is not adequately cooled, it may cause mold material fatigue or damage, thus shortening the service life.
Maintenance and optimization of cooling line
Regular maintenance of the cooling system is the key to ensure its normal operation. For example, keeping the cooling medium clean, checking the status of the pump and filter, and adjusting the cooling flow as needed can extend the service life of the cooling system and improve production efficiency.
Economical cooling lines
Although optimizing the cooling system may require a higher initial investment (e.g. using high-efficiency materials or complex design), in the long run it can significantly reduce production costs and improve product quality.
Cooling lines play a vital role in injection molding. By scientifically designing and optimizing the cooling system, it not only can improve the product quality and production efficiency , but also mold life can reduce production costs. Therefore, in the mold design and production process, the layout and optimization of cooling lines should be given full attention.
