Tie bar distance on an injection molding machine is the distance between the horizontal tie bars on the injection molding machine.
This distance determines the maximum size of the mold, as the mold must be mounted between the tie bars and must not extend beyond the machine’s template.
These bars run parallel to the machine’s length and provide structural rigidity, ensuring that the mold is securely clamped during the injection process.

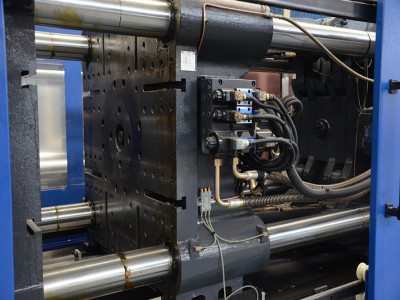

tie bar distance
Definition of tie bar distance
- It is typically measured as the horizontal (width) and vertical (height) distance between the centers of adjacent tie bars.
- Expressed as X× Y (e.g., 500 mm × 400 mm).
Considerations when evaluating tie bar distance
Mold Dimensions:
Ensure mold width and height are smaller than the tie bar distance, leaving some margin for safety.
Ejection System Compatibility:
Check if the mold design aligns with the machine’s ejector system within the tie bar distance.
Machine Tonnage:
Larger machines generally have greater tie bar distance, suitable for bigger molds.
Multi-Cavity Molds:
Multi-cavity molds might require larger tie bar distances due to their size.
spacing injection molding machine
In injection molding, proper spacing (or clamping space) refers to the distance between the mold platens when the machine is open. This is critical for mold installation, part ejection, and robot access. Here’s a breakdown of key spacing considerations for an injection molding machine:
Mold Height (Shut Height)
The minimum and maximum mold height the machine can accommodate.
Must match the mold’s closed height to ensure proper clamping.
Daylight (Open Mold Space)
The maximum distance between platens when the mold is fully open.
Determines part ejection clearance and robotic arm access.
Tie-Bar Spacing
The distance between tie-bars (horizontal & vertical).
Must be larger than the mold’s dimensions to fit inside.
Ejection Stroke
The distance the ejector plate can travel to push out the part.
Must be sufficient for part release.
Nozzle Approach & Sprue Clearance
Distance between the injection nozzle and the mold sprue bushing.
Ensures proper melt flow into the mold.
The effect of injection machine tie bar distance
Mold size compatibility
- If the tie bar spacing is too small, larger molds cannot be installed.
- A machine with excessive tie bar spacing for a small mold may be inefficient and increase costs unnecessarily.
Part and mold design
- Larger tie bar spacing accommodates larger molds, enabling the production of bigger parts or multi-cavity molds for higher output.
- For small parts, using a machine with overly large tie bar spacing can lead to underutilization of resources.
Machine clamping force distribution
- Proper tie bar spacinge ensures the mold is evenly clamped, preventing part defects such as flash.
- If the mold does not align with the tie bar layout, it can cause uneven pressure distribution, leading to defects and potential mold damage.
Machine size and Cost
- Machines with larger tie bar distances generally cost more due to their increased size and structural requirements.
- Selecting a machine with unnecessary tie bar spacing increases operating costs without added benefit.
Haichen injection molding machine tie bar spacing
Haichen Injection Molding Machines offer a variety of models with different tie bar spacing to cater to a wide range of applications. It varies depending on the machine’s clamping force (tonnage) and is a critical specification for selecting the right machine for your mold size.
If you need details for a specific model, we can help look it up or guide you based on your mold size and tonnage requirements. Let me know your mold dimensions or intended application.
Haichen tie bar spacing
When selecting an injection molding machine, it’s critical to ensure that the tie bar spacing accommodates the mold size without being unnecessarily oversized, as this impacts cost and efficiency.
