Pipe fitting production line includes Design, Mold, Preparation of zinc alloy, Die-casting, Cooling, Machining, Inspection, etc.
Zinc pipe connector is used more and more widely. This article describes the production process of conduit accessories-zinc pipe connector die-casting machine production line. we will offer information in detail.
Pipe fitting production line
1. Zinc pipe connect Design
zinc pipe connector is made of metal alloy, usually used for water pipes or gas pipes. The actual zinc pipe connector product size is generally adapted according to the pipes that need to be connected before and after.
2.Zinc pipe connect Mold
Once the design is complete, a mold is created that meets the design specifications. A complete set of zinc pipe connectors will have four accessories to match, so four molds must be made to form a complete zinc pipe connector.

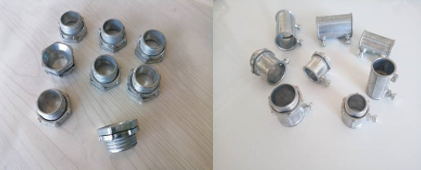

（Sealing locknuts）（Rigid Connectors – Set Screw Type）

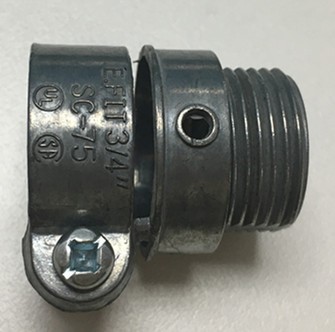

Take the 3/4″ pipe joint as an example. Because the gasket is thin and light, it can produce 4 cavi. Due to the hollow and threaded mouth design of the other parts, the mold will have core pulling and twisting mechanisms, so the product of 2 cavi has better effect.
3. Preparation of zinc alloy
The zinc alloy used for die casting is melted into a liquid state in a furnace.
4. Die-casting
After preparing the materials, the die-casting process begins. The raw materials are melted and poured into the mold created using the prototyping design. However, the machine applies pressure to force the molten metal into the mold, where it solidifies into the part. So, the combination of precise mold design and controlled pressure ensures the production of high-quality castings.
（Haichen 50-ton hot chamber die casting machine）
Since the size of zinc pipe joints is not too large, a 50-ton hot chamber die casting machine is mostly used when selecting a hot-chamber die-casting machine for die-casting.
5. Pipe fitting production line-Cooling
The product must be cooled and hardened in the mold before being removed from the mold.
6. Trimming and finishing
Take out the zinc pipe connector from the mold, then use an edge trimmer or manually remove the runner material head and strapping, and use a small shot blasting machine to polish the incisions.
7. Pipe fitting production line-Machining
Under customer-specific design requirements, zinc pipe connectors may require additional machining, such as drilling, threading or precision grinding.
8. Electroplating or coating
The zinc pipe connector can also undergo additional surface treatment according to the customer’s own requirements, such as electroplating, powder coating or spray painting, etc.
9. Inspection
The finished zinc pipe connector undergoes thorough quality and durability inspection before being sent for testing or shipped to customers.
Overall, accessories for flexible steel conduits, zinc pipe connector die-casting machine production line, involves multiple stages and attention to detail to ensure that a high-quality, reliable zinc pipe connector can be produced.
