Depending on the field of application, e.g. construction, signalling, gas, water or mechanical hoses, there are different dimensional standards. Zinc pipe fitting production line is a common accessory in the electrical industry and they are mainly produced by hot chamber die casting machines. Therefore, when configuring a production line, details such as product dimensions, connection methods, internal interfaces, etc. are the basic required information.
Components of the production line
Zinc pipe fitting mould design
Zinc pipe fitting machine selection
Components of the production line
Zinc pipe fitting production line consists of a hot chamber die casting machine, a mould, and auxiliary machinery. Production lines need to be fine-tuned appropriately for diverse products.
Zinc pipe fitting mould design

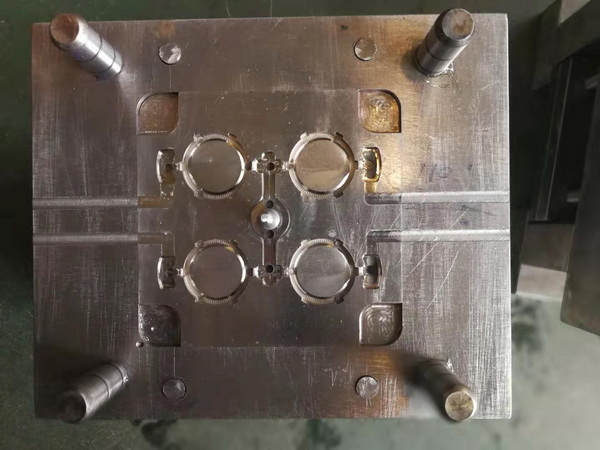

Molds used in the casting process consist of two halves. Zinc pipe fitting moulds are usually made of die steel because gray its best resistance to thermal fatigue. In our case, the size of the zinc alloy pipe fitting determines the size of each chamber. It is necessary to design the core extraction mechanism of the mold according to the hollow structure of the pipe fitting, and the thread structure on the outside of the pipe fitting to design the gibbed part of the mold.
And then it is according to the demand of the output to evenly distribute the same shape of the cavity, different output to set its number.
Zinc pipe fitting machine selection
After completing the above mold design, we have the exact mold size and number of cavities as a reference. The mold size determines how much clamping space we need to use for the model, while the total weight of the product determined by the number of cavities allows us to back-calculate the necessary weight of the press shot. The combination of these two figures allows the selection of the important components of the Zinc pipe fitting production line.

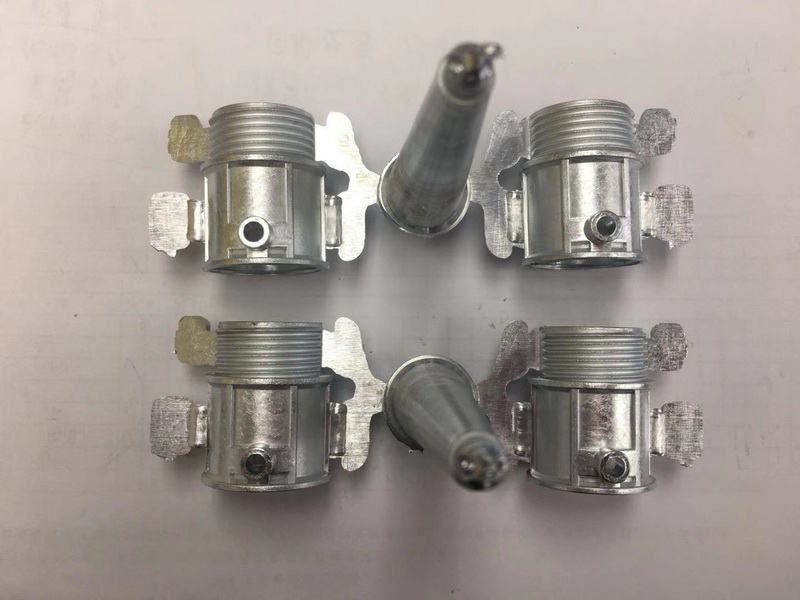

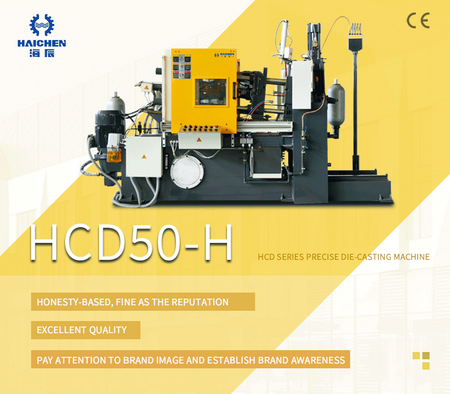

In our previous cases, we have used the HCD50-H model for the production of four-cavity products.
Haichen zinc pipe connector die casting machines will be a great help for your business!We can customize the Zinc pipe fitting production line for you on this basis, for more information. If you are interested in it, please contact Haichen machinery freely.
