200 Ton injection molding machine cost structure

The cost structure of a 200-ton injection molding machine can be analyzed across equipment procurement, molds, materials, processing, and operations.

The 200-ton injection molding machine is a medium-sized equipment widely used in the production of plastic products. Its clamping force is 2000KN (i.e. 200 tons), which is suitable for the molding needs of various materials (such as PP, PC, ABS, silicone, etc.) and complex structures.

Summarize the general features and diverse applications of 200-ton injection molding machines, as well as factors to consider when selecting, such as product demand, manufacturer support, etc as follows:

1. Equipment Procurement Cost

• Price Range: Varies significantly based on specifications and brand:
  • Domestic Brands (China): Hydraulic machines priced at ~¥800–1,300 per ton. A 200 Ton Injection Molding Machine cost ¥160,000–260,000 RMB (~$23,000–38,000 USD).
  • International/High-End Brands: Prices range from **50,000–200,000USD

2. Mold Costs

• Initial Mold Investment: A major expense, varying by complexity:
  • Simple Single-Cavity Mold: ~$1,000–5,000 USD.
  • Complex Multi-Cavity Mold: Up to $20,000–60,000 USD or higher (e.g., molds for 30,000+ parts). Material choice (e.g., cheap steel vs. hardened steel) impacts cost and durability.
• Mold Lifespan & Cost Allocation: High production volumes reduce per-unit costs. For example, producing 50,000 parts significantly lowers per-unit mold cost compared to 5,000 parts.

3. Material Costs

• Raw Materials: Calculated by part weight and resin price. Common plastics (e.g., PP, PE) cost $3–20 USD per pound.
• Material Efficiency: Optimizing designs to reduce waste (e.g., injection molding averages 75% efficiency vs. 94.5% for blow molding).

4. Processing Costs

• Hourly Processing Fees: Based on machine tonnage:
  • ~¥50/hour for a 150-ton machine; ~¥80/hour for a 220-ton machine (200-ton machines fall within this range).
• Energy Consumption: Servo-driven machines reduce energy use by ~30%. Larger machines consume 20+ kW of electricity.

5. Operational & Maintenance Costs

• Labor & Depreciation: Includes machine depreciation, labor wages, and auxiliary costs. Vertical rotary machines can reduce drying cycles, cutting depreciation by 30%.
• Mold Maintenance/Replacement: Short mold lifespans (~100,000 cycles) require frequent upkeep; complex molds incur higher maintenance costs.

6. Other Cost Factors

• Design & Testing: Upfront investments in mold flow analysis (reducing trial runs) and quality testing (e.g., FMEA, APQP) lower long-term costs.
• Production Scale: High-volume production slashes per-unit costs. For example, 50,000 parts reduce per-unit costs by ~80% compared to 5,000 parts.

Summary

Total costs for a 200-ton injection molding machine depend on:

• Equipment: ¥160,000–260,000 RMB (~$23,000–38,000USD)fordomesticbrands;$50,000–200,000+ USD for international brands.
• Molds: $1,000–80,000+ USD.
• Materials: $3–20 USD per pound.
• Processing: ~¥50–80/hour (~$7–11 USD/hour).
• Operations: Energy, labor, and maintenance.

Key Cost-Saving Strategies: Optimize mold design, adopt energy-efficient machines, and scale production to maximize economies of scale.

Application fields of 200T injection molding machine

The 200T injection molding machine is widely used across multiple industries for diverse product types. Key application areas include:

1. Automotive Industry

• Typical Applications: Dashboard panels, bumpers, door panels, trays, and other structural components.
• Technical Features: Ideal for high-precision and complex automotive parts (e.g., bumper trays). Servo-driven models offer enhanced strength and high-temperature resistance, with some technologies applicable to aerospace components.

2. Consumer Goods & Appliances

• Typical Applications: Plastic bins, chairs, storage containers, bottle caps, and large appliance housings (e.g., refrigerators, washing machines).
• Adaptability: Specialized models support large molds and complex geometries for durable household products.

3. Medical & Silicone Products

• Typical Applications: Medical-grade silicone catheters, seals, health products, and sports equipment.
• Technical Advantages: High-density molding ensures burr-free, hygienic medical components. Liquid silicone rubber (LSR) models enable dual-slide injection for baby products and communication devices.

4. Electronics & Packaging

• Typical Applications: Electronic housings (e.g., remote controls, computer parts), insulating components, and packaging materials (e.g., caps, containers).
• Precision Requirements: Servo-driven systems provide high fluidity and accuracy for tight-tolerance electronic parts.

5. Rubber & Footwear

• Typical Applications: Shoe soles, rubber crafts, and industrial seals.
• Process Innovation: Vertical rubber injection machines integrate automated demolding to boost productivity.

6. Industrial & Composite Materials

• Typical Applications: Composite materials (e.g., optical lenses, micro-structured parts) and two-component (2K) molded products.
• Technical Flexibility: Supports prototyping and small-batch production, compatible with engineering plastics and high-temperature materials.

7. Aerospace & Advanced Manufacturing

• Typical Applications: Aircraft interior components and lightweight structural parts.
• Performance Standards: High-strength servo models withstand extreme temperatures, meeting aerospace requirements.

8. Miscellaneous Applications

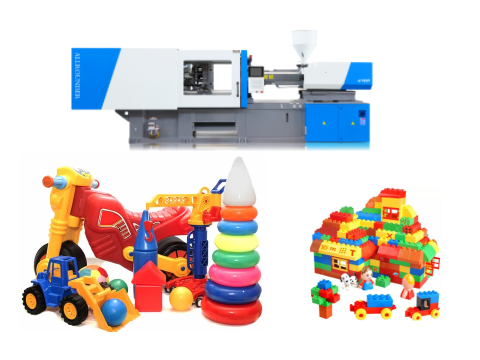

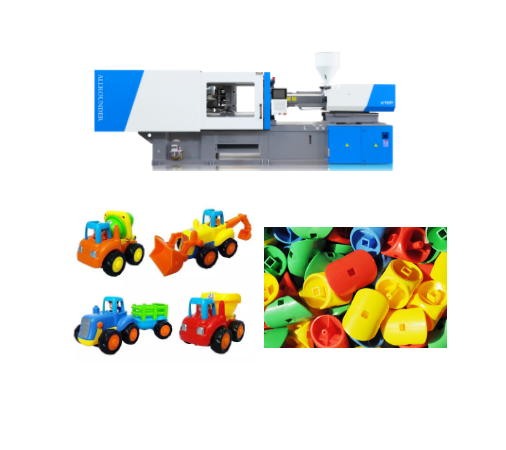

• Diverse Products: Toys, sports gear, kitchenware, and insert-molded parts (e.g., hybrid metal/ceramic components).

Core Technical Advantages

• Energy Efficiency: Servo motors and optimized hydraulic systems reduce energy consumption by over 30% compared to conventional machines.
• Precision Control: Advanced control systems ensure consistent output and rapid setup changes.
• Versatility: Accommodates clamping force ranging from 70T to 1600T, compatible with materials like PVC, PP, silicone, and engineering plastics.

Summary: The 200T injection molding machine is a cornerstone of modern manufacturing, excelling in high-precision, complex structural components, and demanding operating conditions across automotive, medical, electronics, aerospace, and consumer industries.

Haichen 200t HCK230 injection molding machine

Based on the technical specifications and application scenarios of the Haichen HCK230 (200-ton clamping force), here is a concise summary in English:

1. Equipment Positioning & Series Classification

• Series: Part of Haichen’s HC Series of servo energy-saving injection molding machines.
• Target Applications: Automotive components (e.g., switches, filter housings), thin-wall packaging, bottle caps, and high-efficiency multi-cavity production.

2. Core Technologies & Features

Energy Efficiency

• Servo Motor Drive System: Reduces energy consumption by 20–80% through proportional flow/pressure control and multi-stage switching.
• Hydraulic Oil Cooling: Minimizes heat generation and noise (<75 dB).

Clamping System

• Box-Type Bridge Moving Platen: Finite element analysis (FEA)-optimized structure ensures rigidity and uniform force distribution, reducing deformation.
• 5-Hole Double-Toggle Mechanism: Enhances precision with multi-stage clamping pressure/speed control and mold-protection features.

Injection System

• Dual-Column Balanced Injection Unit: Ensures stable screw movement and uniform material plasticization.
• Nitrided Alloy Screw/Barrel: Resistant to wear and corrosion, suitable for engineering plastics (PP, HDPE, PC/ABS).
• Multi-Stage Injection Control: Adjustable speed, pressure, and position for complex part molding.

Control System

• Digital Control: Dedicated controller with multi-CPU processing, 99 programmable recipes, and self-diagnostic functions.
• Touchscreen Interface: 21-language support and remote monitoring capabilities.

3. Typical Applications

Automotive Parts

• Examples: Electrical connectors, sensor housings.
• Key Features: Compatibility with 8–24-cavity molds, cycle times of 15–20 seconds, and material versatility (e.g., glass-filled polymers).

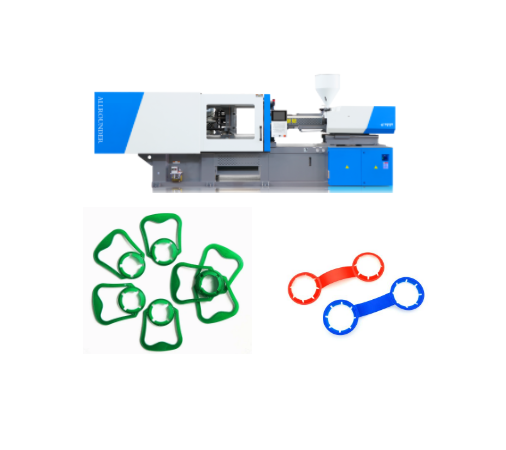

Packaging & Bottle Caps

• Case 1: 8-cavity PP tear-off lids (20-second cycle).
• Case 2: 24-cavity HDPE oil bottle caps (requires HCK250/HCK300 for higher tonnage).

Thin-Wall Products

• High-Speed Injection: Up to 650 mm/s filling speed for fast, precise thin-wall molding (e.g., food containers).

4. Selection Guidelines

• Mold Compatibility: Verify tie-bar spacing and platen size.
• Material Adaptation: Optimize backpressure and temperature profiles for materials like PET or PLA.
• Cost Efficiency: Servo energy savings reduce long-term operational costs, ideal for high-volume production.

5. Support & Services

• Fast Delivery: Over 100 machines in stock for quick shipment.
• Technical Assistance: End-to-end support for mold design, process optimization, and production line integration.

Overall

The Haichen HCK230 excels in automotive, packaging, and thin-wall applications with its rigid structure, energy-saving servo system, and precise control. For customized solutions (e.g., multi-cavity molds or specialized materials), consult Haichen’s engineering team for tailored configurations and the 200 Ton Injection Molding Machine cost.
