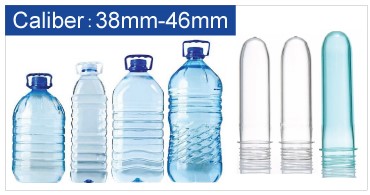

Manufacturing of 3-gallon PET preforms through injection molding, transforming PET raw into preforms that are later blown into bottles.
The production of 3-gallon PET bottle preforms plays a vital role in the manufacturing of large-scale PET bottles. These preforms serve as the initial stage of the bottle production process, and they form the basis for creating strong and high-quality containers.
Manufacturing process for 3 gallon PET bottle preforms
PET resin preparation:
Polyethylene terephthalate (PET) resin, the raw material for PET bottle preforms, is first dried to remove moisture. This is important because moisture can affect the quality of the final product.
The dry PET resin is then fed into an injection molding machine designed for the production of PET preforms. The machine consists of a hopper that holds the resin and a heated cylinder that melts the resin to a precise temperature suitable for injection molding.
Injection and cooling:
Molten PET resin is injected into the mold cavity with the desired shape of the 3-gallon preform. The injection process takes place under high pressure to ensure that the resin fills all the intricate details of the mold. However, after injection, the molten resin rapidly cools and solidifies within the mold cavity. So, cooling is promoted by circulating water or coolant through channels within the mold.
Mold opening and ejection:
After the preform solidifies, the mold is opened, and the preform is ejected from the mold cavity. Ejection can be assisted by an ejector pin or air pressure, so the preforms are carefully handled to avoid any damage or deformation.
Trimming and inspection:
The edge of the ejected preform may have excess material, called burrs. So, this raw edge is trimmed away to obtain the desired size and appearance of the preform. The preforms are then thoroughly inspected for visual defects, such as surface flaws or shape anomalies. At this stage, any defective prefabs are discarded.
Packaging and storage:
Carefully package qualified preforms in containers such as bags or boxes to protect them from contamination and physical damage. These packaged preforms are stored in a controlled environment to maintain their quality until ready for further processing.
Technical solution for selecting 3 gallon PET bottle preforms:
Haichen injection molding machine provides comprehensive technical solutions for selecting 3 gallon PET bottle preforms that meet specific requirements. When the preform length is 265 mm, the weight is 400 g, the cycle time is 70 seconds, and a 4-cavity mold is used, the following equipment is recommended:
HCK410-PET injection molding machine is specially designed for the production of PET bottle preforms. It provides precise control of the injection process, ensuring consistent preform quality. The machine is capable of an ideal cycle time of 70 seconds.
The production of 3-gallon PET bottle preforms involves a precise and well-defined process. From resin preparation to injection molding, cooling, trimming, inspection, and packaging, every step contributes to the creation of high-quality preforms. Manufacturers utilize specialized machinery and adhere to strict quality control measures to ensure consistency and reliability in preform production.By following these meticulous procedures, the foundation is laid for the subsequent stages of bottle manufacturing, ultimately producing a durable and visually appealing 3 gallon PET bottle.
conclusion:
The production of 3-gallon PET bottle preforms involves a precise and well-defined process. From resin preparation to injection molding, cooling, trimming, inspection, and packaging, every step contributes to the creation of high-quality preforms. Manufacturers utilize specialized machinery and adhere to strict quality control measures to ensure consistency and reliability in preform production. So, this meticulous approach guarantees that each preform meets the required standards for further processing into bottles.By following these meticulous procedures, the foundation is laid for the subsequent stages of bottle manufacturing, ultimately producing a durable and visually appealing 3 gallon PET bottle.
