5 gallon PET preform molding process mainly includes preform, injection molding, cooling and election.

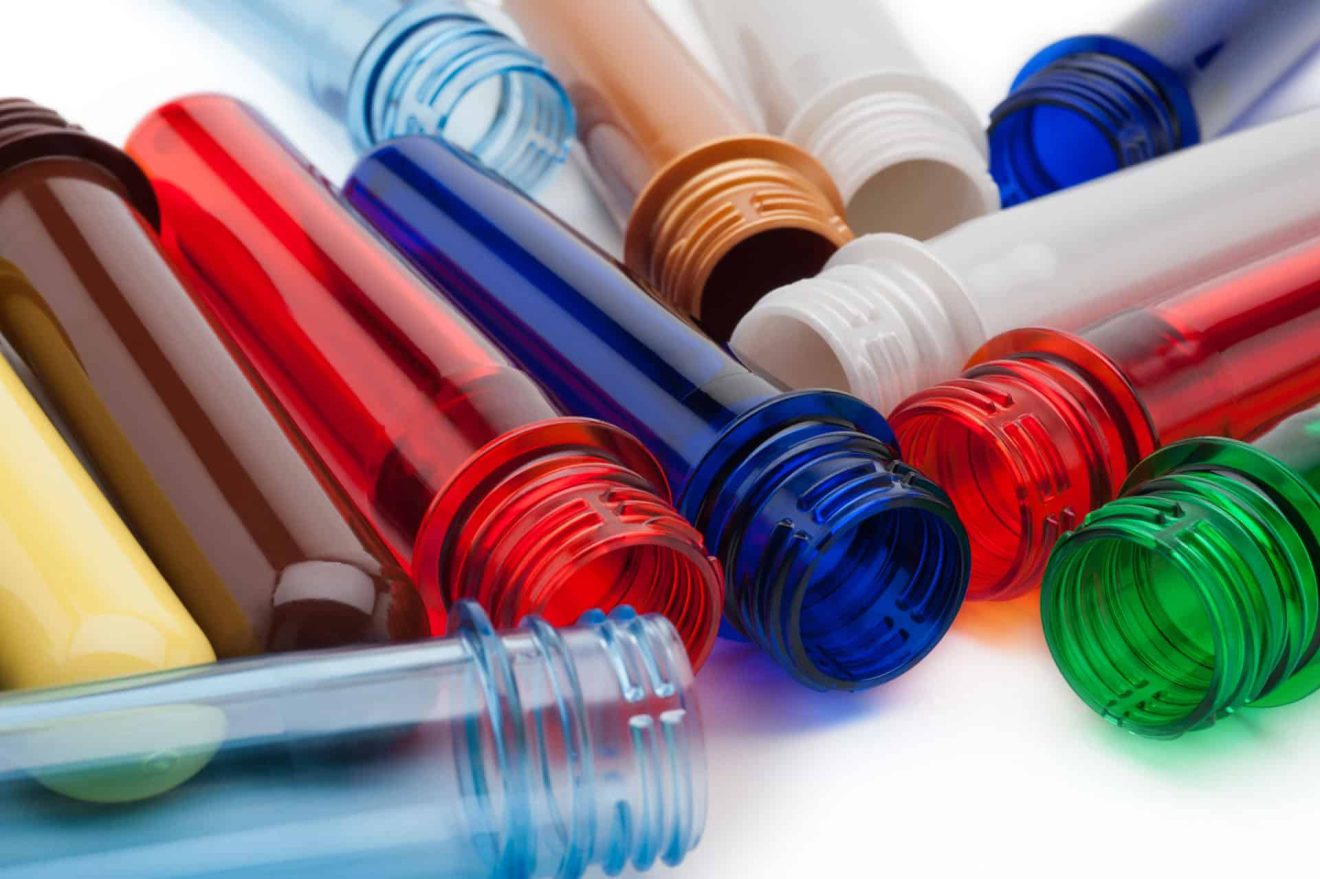

What is a pet preform?
PET bottle preform, also known as polyethylene terephthalate (PET) bottle preform, is a typical injection molding product.
PET preform refers to a semi-finished product made by injection molding or extrusion before producing PET bottles or other containers. This preform is usually cylindrical with a certain wall thickness and height, and then further processed into the final PET container by blow molding.
PET preform is a plastic product made by injection molding and stretch blow molding. It has excellent physical and chemical properties and is an important intermediate product for plastic bottles and other packaging containers.
Process of 5 gallon PET preform injection molding: Preform
Plastic resin injection: Small particles of PET resin are fed into the hopper of the injection molding machine. Small particles are heated and melted, forming a molten plastic material.
Process of 5 gallon PET preform injection molding: Injection molding process
Mold cavity creation: The first step is to design the mold cavity, which represents the ideal shape of the PET bottle preform. These mold cavities are usually made of high-grade steel to withstand the pressure and high temperatures during the injection molding process.
Injection mold: Then inject molten plastic into the mold cavity under high pressure. This ensures that the material flows into every corner of the mold cavity, forming an accurate and uniform preform shape.
Process of 5 gallon PET preform injection molding: Cooling
After completing injection molding, the mold containing molten plastic will cool and solidify. The cooling time will strictly controll to achieve the best effect.
Ejection
After the bottle blank solidifies, open the mold and push the bottle blank out of the mold cavity with the ejector pin.
Design considerations for 5 gallon PET preform plastic bottle preform molds
successful production of PET preform plastic bottle molds requires a thorough understanding of product design and manufacturing processes. Some important design considerations include:
- Gate design: The gate is the entry point for molten plastic to enter the mold cavity. The correct gate design is crucial for ensuring maximum waste reduction, smooth filling, and easy removal of preforms.
- Cooling system: An efficient cooling system is crucial for regulating the cooling process and maintaining consistent cycle times.
- Ejection mechanism: The design of the ejection system must be able to gently remove the preform from the mold without causing any damage.
- Wall thickness: The wall thickness of the bottle preform must be uniform and consistent to ensure consistency in quality during the blow molding process and minimize defects.
- Generally, mold factories will make the mold thinner. So that 5 gallon PET preform, with 55mm bottle neck size, weight 650g, 2 cavities can use 360ton PET machine model. But that will shorten mold life. In addtion, the high-standard mold we have been equipped will be thickened. While, the same thickness of 5 gallon PET preform 2 cavities will around 800mm. Therefore, we will use our 410ton PET machine model to produce the high standards PET preforms.

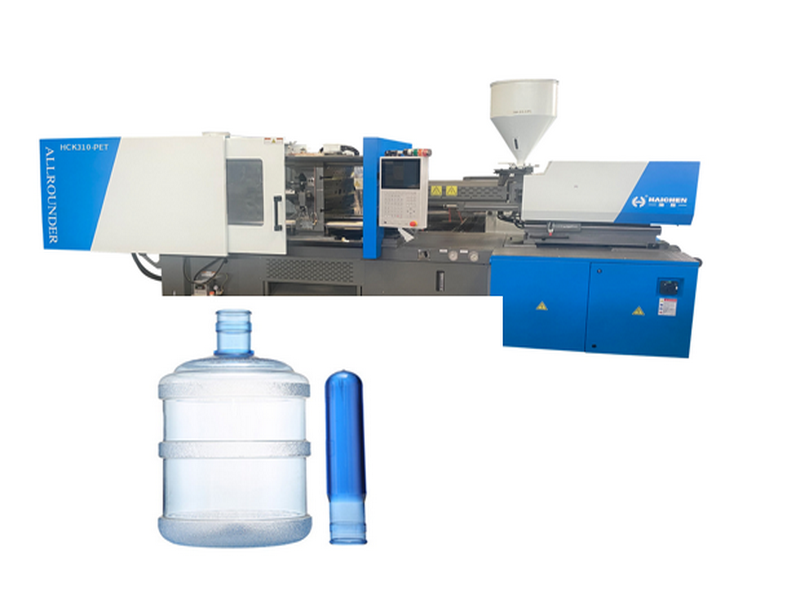

Haichen injection molding machine
Haichen is one Chinese injection molding machine manufacturer in Ningbo. In addition, Haichen has more than ten years of rich experience in the production of plastic injection molding machines. All our servo energy saving injection molding machines quality are under CE safety standars certificate.

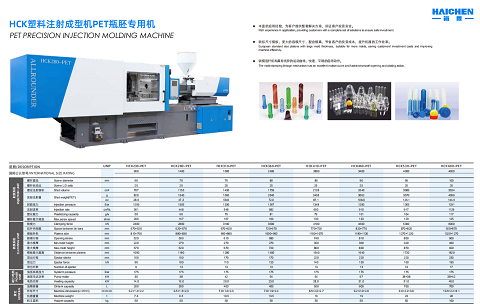

Haichen PET injection molding machine can produce various shapes, sizes, and colors plastic bottle PET preforms to achieve various creative designs.
We have different types of PET preform injection molding machine for selection. Moreover, we will supply suitable and complete 5 gallon PET preform production line as per client’s specific demand.
Welcome contact us for details.
