Advantages and limitations of T-slot for injection molding machine:
- Easy mold installation
- Improve mold rigidity
- Optimize the release effect
- Reduced use of screw holes
- Energy-efficient
- Limiting the application of small injection molding machines
- May affect the quality of the release
- Higher cost
- Limited scope of application

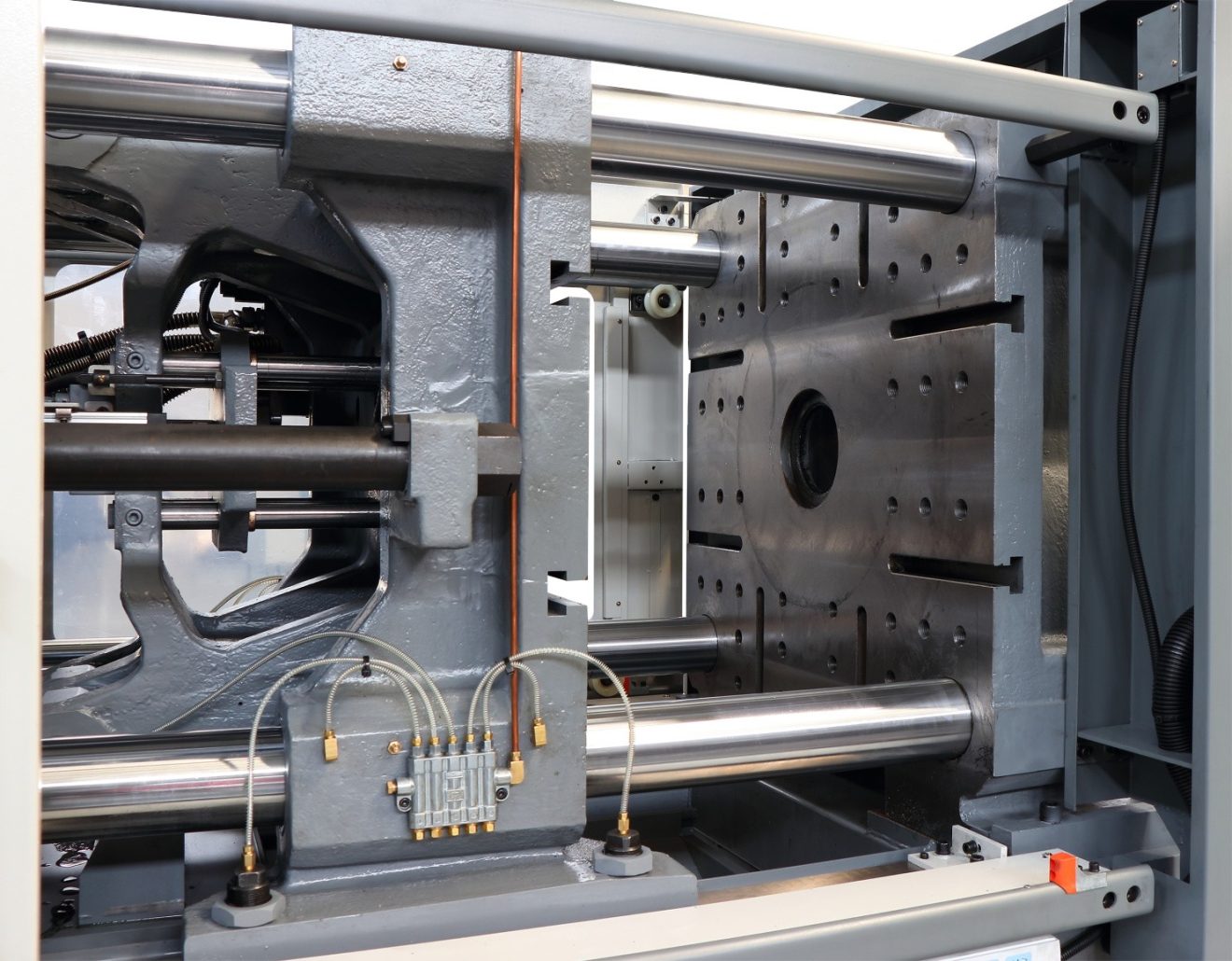

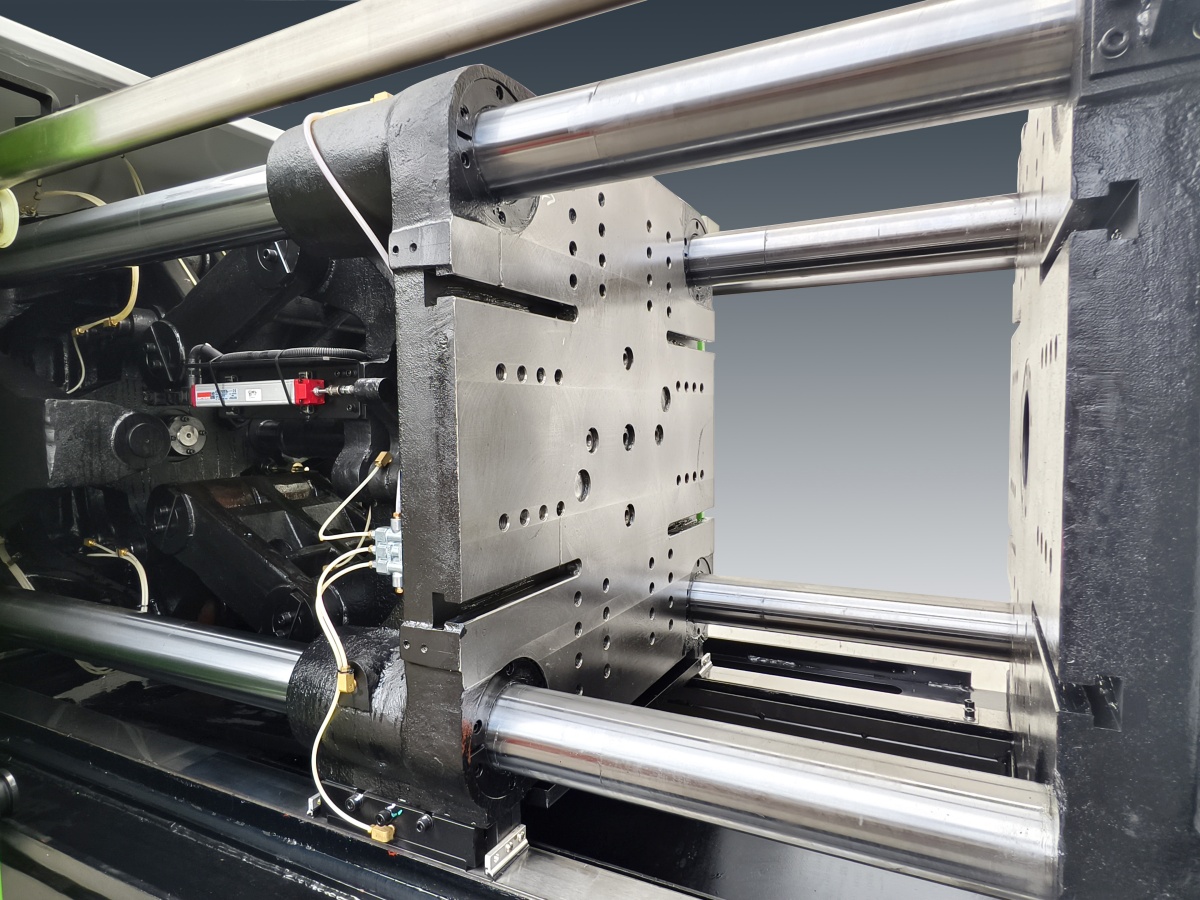

The T-slot is a groove processed on a metal plate or a Clamping platen of a mold.
Its cross-section is in the shape of a “T” and is used to fix the mold in conjunction with T-bolts.
In injection molding machines, it forms the core component of the mold clamping system.
Which through the combined effect of nuts, washers and buffer blocks (Cushion block), ensures that the mold remains stable during high-pressure injection while reducing stress concentration.
Advantages and limitations of T-slot for injection molding machine
- Easy mold installation
- Improve mold rigidity
- Reduced use of screw holes
- Optimize the release effect
- Energy-efficient
- Limiting the application of small injection molding machines
- May affect the quality of the release
- Higher cost
- Limited scope of application
Easy mold installation
The design of the T-slot makes the loading and unloading of the mold more convenient.
Reduces the time of installation and disassembly, and improves the production efficiency.
Improve mold rigidity
The combined mold design of T-slot and code die hole can significantly improve the overall rigidity of the mold, thereby extending the life of the mold.
Reduced use of screw holes
The T-slot reduces the use of screw holes, reduces the risk of tooth damage caused by long-term use of screw holes, and improves the durability of the mold.
Optimize the release effect
In some complex molds, the T-groove can be used to drive the internal core-pulling mechanism to achieve automatic demoulding of complex parts.
Energy-efficient
Combined with servo systems and third-generation hydraulics, T-slots enable more efficient injection molding while reducing energy consumption.
Adaptable T-groove design is suitable for a variety of materials and products of different thicknesses, especially in thick-walled products.
Limiting the application of small injection molding machines
In domestic injection molding machines with low clamping force, T-slots are not common.
Because the clamping mechanism of these models is not rigid enough to withstand the additional stress caused by T-slots.
May affect the quality of the release
In some cases, the T-slot can cause defects such as flash, dents or dark spots during the release process.
Requirements for injection molding machine configuration.
The use of T-slots requires specific injection molding machine configurations.
Such as a highly rigid platen and an optimized clamping unit design, without which it may not be fully exploited.
Higher cost
The design and processing complexity of T-slot molds is high, which may lead to higher mold costs.
Limited scope of application
Although the T-groove is suitable for a wide range of materials and products.
It may not perform as well as other mold designs in some special cases, such as thin-walled products or products that require high precision.
The role of the T-slot for injection molding machine
The T-slot is a common mechanical design element used to secure and connect components.
In injection molding machines, the T-slot is usually used for the installation and fixing of the mold.
For example, the pressure plate of the injection molding machine is equipped with a T-slot for the installation and fixing of the mold.
In addition, the T-slot is used in a system for quick mold changes.
And the ears of the mold can be easily inserted and fixed through the T-slot, so as to achieve the purpose of quick mould change.
Types and specifications of T-slot for injection molding machine
T-slots can be used in a variety of machining scenarios, including gear milling and mold machining.
For example, T-slot cutters are used to attach interchangeable carbide cutter heads to standard T-slot cutter holders for efficient machining.
In addition, the size of the T-slot can reach 300-100x14H8mm, which shows that the T-slot has a variety of size options in different application scenarios.
Specific application of T-slot for injection molding machine
In injection molding machines, T-slot is mainly used for fixing and quick replacement of molds.
For example, mold change systems, in which each splint is machined with a T-slot, which holds the mold’s lugs.
This design significantly increases the speed and efficiency of tool changes.
Comparison of T-slots with other fixation methods
In some cases, fixing holes may be preferred over T-slots, especially in magnetic and electrically driven mold retention systems.
However, for applications where a quick tool change is required, the T-slot is still a very effective solution.
Fabrication and materials of T-slots
T-slots are usually made of high-strength materials, such as galvanized steel.
Which are able to withstand the high loads and vibrations that occur when an injection molding machine is running.
