Injection molding machine platen selection need to consider mold size and weight, machine tonnage, tie bar spacing, platen types and material.
Platens are the flat, large, and rigid plates on an injection molding machine that hold and support the mold during the molding process. They ensure even pressure distribution, proper alignment, and secure mold placement.
Injection molding machine platen selection
Selecting the right platen for an injection molding machine is crucial for ensuring proper operation, mold stability, and quality of molded products.
Here’s a guide on how to choose the appropriate platen.
Mold size of injection molding machine platen selection
- Ensure the platen is large enough to accommodate the dimensions of your mold.
- Account for both the length and width of the mold base.
Machine tonnage
- The platen must handle the clamping force of the machine without deflecting excessively.
- High clamping forces require thicker, more rigid platens.
Tie bar spacing of injection molding machine platen selection
- Verify that the mold fits within the spacing between the tie bars of the machine.
- The mold should not interfere with the tie bars during clamping or opening.
Platen types
- Single-platen configurations increase mold space, while double configurations increase rigidity and are suitable for different molding needs.

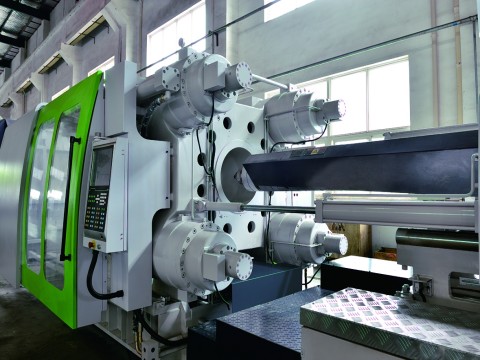

- For applications that require more mold space, such as large automotive parts trash cans,, a double-platen injection molding machine is a better choice.
Mold weight
- The platen must support the mold weight without bending or sagging.
- Overloading can lead to uneven pressure distribution and poor molding quality.
Platen material
- Common materials includesteel and cast iron for their strength and rigidity.
- Ensure the material resists wear and deformation under repeated use.
Cooling and heating channels
- If the mold requires temperature control, the platen should support integrated cooling or heating systems.
- Check for compatibility with your mold’s requirements.
Ejector system compatibility
- Ensure the platen allows proper alignment and operation of the ejector pins or system in the mold.
- Consider platen designs that support automatic ejection mechanisms.
Platen size injection molding
In injection molding, the platen size refers to the dimensions of the mounting area where the mold is clamped onto the injection molding machine. The platen must be large enough to accommodate the mold while providing sufficient space for clamping, ejection systems, and other components.
Key Factors Affecting Platen Size in Molding:
Mold Dimensions
The mold must fit within the platen’s length × width limits.
The machine’s specifications will list the maximum mold dimensions it can hold.
Tie-Bar Spacing
The distance between the machine’s tie-bars restricts the maximum mold width and height.
If the mold is too large, it won’t fit between the tie-bars.
Clamping Force (Tonage)
Larger platens are typically found on machines with higher clamping forces (e.g., 500-ton machines have larger platens than 100-ton machines).
The required clamping force depends on the part’s projected area and material.
Ejection System & Moving Platen
The moving platen must have enough space for ejector pins, hydraulic cylinders, or other ejection mechanisms.
Shot Capacity & Mold Thickness
The machine must accommodate the mold’s thickness (min/max mold height).
The platen must also support the injection unit’s shot size (volume of plastic injected).
Haichen injection molding machine platen
Haichen is a manufacturer of injection molding machines, offering a range of models for various application.
By aligning the platen selection with your production needs, Haichen machines can deliver precise and efficient results.
By taking all of these factors into consideration, it is possible to select the right injection molding machine template for a specific production requirement, thereby improving productivity and product quality.
