The application scope of the bottle handle machinery pertains to the PET plastic bottles and bottle handles.
In the PET bottle production system, the handle injection molding machine occupies a central position. It emphasizes the production of loop handles and enhances the entire process through injection molding incorporation. It reaps the most benefit by addressing the production bottlenecks associated with handle integrated bottles, enhancing the processes, lowering the costs, and mitigating multifunctional responsive packaging challenges to the beverage, daily chemical, and other industries.
Most of the application of bottle handle injection molding machine is concentrated during the processing of plastic bottles. Particularly during the fabrication of bottle bodies and bottle caps which are comprised of PET and HDPE. Here are some specific uses of bottle handle injection molding machine.
Production of Large Containers with Handles
Applications
Primarily used for large containers that require easy handling, such as cooking oil bottles, disposable water bottles, and detergent bottles. Due to their large size, adding handles to these containers enhances the user experience and product appeal.
Bottle handle machine application technical Implementation
- Integrated handlesDirect injection molding using a dedicated mold, eliminating the need for additional equipment (e.g., the PF series).
- Post-insert handles: The handles are installed after blow molding using auxiliary equipment, requiring specialized molds.
- In-mold handles: A robot is required to automatically insert the handle into the mold for simultaneous molding (e.g., the PF series has an optional robot).
PET bottles Manufacturing
Handles can be formed on PET bottles through the injection blow molding process. This process involves heating the preform and injecting it into the mold, then blowing it into the desired shape with compressed air, while forming handles in specific areas. This method can continuously produce PET bottles with handles, improving production efficiency and product quality.
Specialized handle loop production

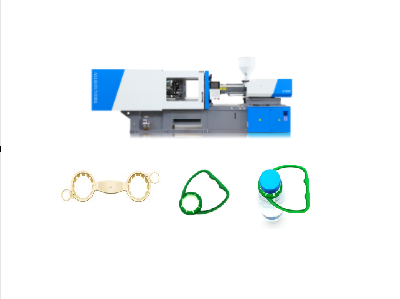

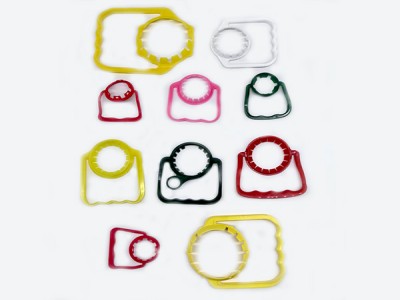

Bottle handle injection molding machines are specifically designed to produce handle loops (bottle handles) for PET bottles. These handle loops come in various sizes and are produced through injection molding. The machine handles the entire handle design, mold manufacturing, and injection molding process. Haichen, a Chinese manufacturer, specializes in the development and production of this type of equipment, providing solutions from mold testing to mass production.
Integrated handle technology
Innovative technologies such as IMH™ (Integrated Molded Handle) allow the handle to be directly injection-molded into the PET preform. This eliminates the need for subsequent handle installation, significantly improving efficiency.
Mold design and manufacturing
In the process of bottle handle injection molding, mold design is crucial. For example, hot runner systems and automatic thread removal mechanisms are used in some designs to improve mold reliability and production efficiency.
In addition, through mold flow analysis software (such as Moldflow), potential molding defects can be discovered during the mold development stage, thereby optimizing mold design.
Structural Complexity of bottle handle machine application
- The handle mold must incorporate a lateral core-pulling mechanism (such as a tilting ejector or slider) to create undercut or curved surfaces.
- One-piece handles require runner design to avoid weld marks and ensure strength. Embedded handles must precisely align with the robot for insertion.
Cooling and Demolding
- Uneven cooling of the handle can easily lead to deformation, necessitating a zoned cooling system.
- The demolding mechanism must prevent handle breakage during ejection (e.g., by using delayed or multi-stage ejection).
Compatible Materials and Processes
- Material Selection: ABS, polypropylene (PP), and polycarbonate (PC) offer both strength and toughness, making them suitable for load-bearing handles. PET is commonly used for integrated handles on beverage bottles.
- Process Parameters: High-pressure injection ensures complete filling of the handle, while the holding pressure stage compensates for shrinkage and avoids sink marks.
Other related bottle handle machine application
In practical applications, such as the injection molding research of kettle handles, finite element analysis and mold flow analysis can reduce experimental costs and shorten development cycles. These technologies help engineers make correct decisions during mold development.
In addition to PET and HDPE materials, bottle handle injection molding technology is also applied to other types of plastic products, such as cosmetic bottle caps, beverage bottle caps, etc. These applications usually involve complex structural design and high-precision mold manufacturing.
Food and Daily Chemical Packaging
- Edible Oil Bottles: Bottles with integrated handles are produced using injection stretch blow molding (ISBM) technology for enhanced grip stability.
- Detergent Bottles: Bottles such as hand soap and shower gel bottles utilize in-mold handle technology to enhance product durability and avoid post-processing.
- Condiment Containers: Wide-mouth bottles (such as sauce bottles) are molded with high precision using dedicated injection molding machines.
Beverage Packaging
- Large-Capacity Water Bottles (1.5-3 liters): NISSEI ASB’s PF24 series can produce beverage bottles with integrated handles for portability.
- Sports Bottles: Handles are injection-molded using PC for high-temperature resistance and ergonomic design.
Pharmaceutical and Cosmetic Bottles
Highly transparent PET bottles are produced using ISBM technology, and the handle design is convenient for elderly users.
Disinfectant Bottles
The handle is integrally molded into the bottle to ensure a tight seal.
Above all, we can know that bottle handle injection molding machine is widely used in the production of plastic bottles. By optimizing the injection molding process and mold design, the quality and production efficiency of the product can be significantly improved.
Haichen bottle handle injection molding machine
We are Haichen, one Chinese injection molding machine manufacturer in Ningbo city for more than 10years. Our servo energy saving injection molding machines quality are under CE safety standards certificated.
Haichen have rich experience of producing plastic bottle handle injection molding machine. According to clients’ specific demand, we can supply complete production line from plastic raw materials for bottle handle to finished products.
