Replace the Screw Barrel first to remove all electric heating coils and thermocouple holders from the heating material cylinder.
Heat the barrel close to the resin’s melting temperature then turn off the heater while injection speed. And pressure are reduced to bring the screw back to the starting position.
Unscrew the bolts securing the upper part of the material cylinder, being careful while lifting it.
The screw barrel is a major part of an injection molding machine because it performs the operations of melting. And transporting the plastic to the cavity of the mold. In replacing the screw barrel, some logical considerations need to be made so the machine works well after the replacement.
This guide explains the steps in replacing the screw barrel. And each step’s significance in working with the injection molding machine.

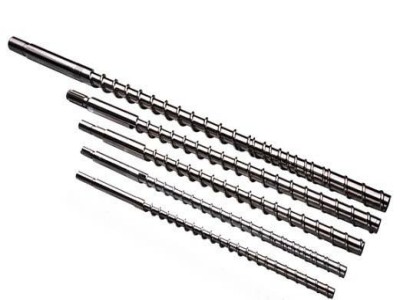

Learning About Screw Barrel Function
The screw barrel (barrel) is classified as an integral component in the process of injection molding. It receives plastic pellets in solid form, heats and melts them, then injects the liquid into the cavity of the mold. Eventually, the machine becomes less efficient as physical damages occur and it becomes mandatory to replace the screw barrel. In order to successfully take on this troublesome task. The reason why a screw barrel is needed has to be understood.
Apart from ensuring the correct temperature and the right consistency of the plastic to be injected. The plasticizing screw barrel also takes care of the pressure that needs to be maintained in order to fill up the mold to its complete capacity. Quality and effectiveness of the injection molding process can be greatly enhanced with proper maintenance. And scheduled replacement of the screw barrel.
How To Replace the Screw Barrel in Injection Molding Machine?
- Preparing for the Replacement
- Disassembling the Injection Molding Machine
- Removing the Old Screw Barrel
- Installing the New Screw Barrel
- Putting Together the Injection Molding Machine
- Testing and Completing the Replacement
Preparing for the Replacement
Gathering the right tools such as wrenches, sockets, a newer screw barrel, as well as tailored equipment for the specific machine model should be prepared beforehand. Also for safety precautions, make sure to power down the injection molding machine and properly disconnect it from the main power supply.
In addition, it’s ideal to double-check the machine’s manual for more precise instructions and detailed torque values. When replacing the screw barrel, one helpful tip is to retain old components in their specific positions for easier alignment purposes.
Disassembling the Injection Molding Machine
The first step in removing the screw barrel is to disassemble the components of the injection molding machine that are relevant. Placing the barrel in the proper location needs the hopper to be removed and further, the turning off of the heating elements so as to cool the plastic maintained in the barrel. Detaching the screw barrel from the rest of the machine starts with unscrewing and removing the nozzle from the front end of the screw barrel.
This step is essential for safely accessing and removing the screw barrel. After the nozzle is removed, carefully disconnect any electrical connections and hoses attached to the screw barrel. This ensures that there are no obstructions when you remove the barrel from the machine.
Removing the Old Screw Barrel
After the nozzle has been detached, the next step is to take apart the barrel assembly. Undo all retaining rings and clamps that hold the screw barrel in position. With the aid of a crane or barrel puller, gently slide the barrel from the machine as it may be heavy. Care should be exercised at this stage not to damage the machine and not to screw barrel during removal.
Inspect for new signs of wear and tear after the barrel has been removed. Seeing if there are any cracks or signs of damage. This examination will be crucial in determining how precisely the machine needs to be maintained. And if there are any existing maintenance activities in the pipeline.

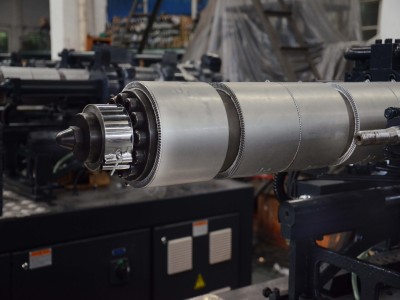

Installing the New Screw Barrel
Now that the old screw barrel is no longer in place, it’s time to set the new one in. To ensure the device doesn’t suffer from too much friction or wear. The right kind of grease should be applied to the newly installed screw barrel. Correctly slide the newly positioned barrel to align with the feed throat of the machine and with other parts of the equipment. This step is particularly important to ensure the injection molding machine performs optimally.
Putting Together the Injection Molding Machine
After installing the new screw barrel. It is necessary to put back the rear assembly of the barrel by installing the retaining rings or clamps which hold the new screw barrel. The nozzle should be attached to the screw barrel front end and fastened to it with the right torque specifications. This action helps to mitigate the movement of the screw barrel and fastens it in place for operation.
Testing and Completing the Replacement
Now that the new screw barrel has been set up, power the machine up by plugging the power cable in and switching the machine on. Increase the temperature of the barrel to the level of the material set to be used. Conduct a functional test to check whether the screw barrel is working and there are no leaks from it or any other parts of the machine. This is a confirming step that the screw barrel has, in fact, been replaced.
All steps ought to be carried out for changing the screw barrel of an injection molding machine as these act as guides. Efficiency and performance are vital for any machine and so is laying down regular maintenance. Replace Screw Barrel is an example of. Such parts that increases the reliability of your injection molding machine but requires careful handling and precision during the replacement process.
Haichen’s Instructions for Replacing the Screw Barrel of an Injection Molding Machine
Replacing the screw barrel in an injection molding machine is one of the maintenance tasks that require attention since proper functioning of the machine ensures efficient production of quality parts.
Here at HAICHEN, we appreciate this procedure and offer complete assistance as well as high quality replacement parts needed for the process.
All our machines are constructed to facilitate maintenance operations. Thus, the technicians can replace the screw barrel within the shortest time possible.
Maintainers are guided by the steps provided in our maintenance manuals, and are able to remove the screw barrel, check it for wear, and replace it, if necessary.
This ensures that the machine remains operational and the quality and consistency of the parts made is reliable.
