How to Choose the Right Cooling System in Injection Molding？-The right cooling system for injection molding depends on the thermal properties of the material, the complexity of the part geometry, and the target cycle time.
Cooling circuits play a vital role in the molding operation by speeding up the solidification of molten plastic and ensuring uniform temperature distribution throughout the mold.
Effective cooling not only elevates part quality by minimizing warpage and shrinkage but also boosts productivity by shortening cycle times.
Knowing how to select the most appropriate cooling configuration is therefore a key prerequisite for attaining the desired performance in injection molding.
This article reviews the main criteria to evaluate when designing the cooling system and offers actionable recommendations to guide the selection process.
That Defined Goal For Selecting the Right Cooling System

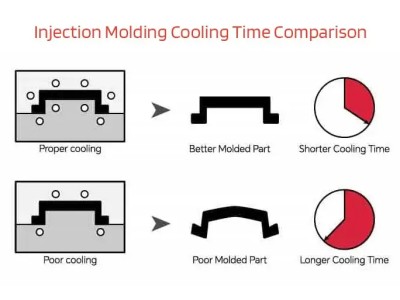

The injection molding processes have quite an impact on the end products in different ways, while molten plastic gets injected into a mold cavity it is crucial to cool it adequately because it solidifies into the desired shape.
The cooling phase is crucial because it affects the dimensional accuracy, surface finish, and structural integrity of the final product.
Without appropriating cooling, the system may lead to severe warping alongside other damages that would be deemed as defects, furthermore protruding bits of mark, along with differing spots that cannot call for space all put in skirts.
Types of Cooling Systems
The many types of injection molding cooling systems each have their own unique advantages including:

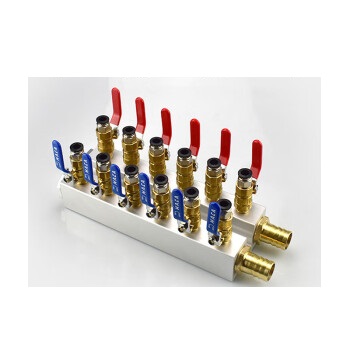

- Water Cooling Systems: These systems effectively and reliably remove heat through the use of water. These systems are by far the most common for use in the injection cooling system. HAICHEN water cooling systems expertly manages industrial standards in modern technology precision temperature control and consistent cooling.
- Air Cooling Systems: As the name implies, these systems cool the mold using air. Although air systems are generally much less efficient than water systems, they are more practical for some appliations. Where water cooling is impossible to work with, the HAICHEN air systems will provide cooling efficiency.
Factors to Consider When Selecting the right cooling system
- Mold Design
- Cooling Medium
- Cooling System Capacity
- Choosing the best one from all cooling systems
- Linkage with The Injection Molding Device
Mold Design
The design of a mold greatly impacts the cooling system within it. Molds could be designed to have channels for cooling so that heat is uniformly and completely transferred. The dimensions of these channels as well as their region configuration are of utmost importance. For more effective cooling of complex shapes, consider using conformal cooling channels that closely follow the shape of the part.
Cooling Medium
Another matter of great importance is the selection of a cooling medium. Water, oil and air are the most popular cooling mediums. Water is the most widely applied cooling medium because of it’s large availability and low cost. However, oil-based cooling systems become more appropriate for instances where greater control over the temperature level or corrosion resistence is needed. Air cooling is typically used for smaller parts or when water or oil systems are not feasible.
Cooling System Capacity
The capacity within a cooling system is meant to manage the heat loads from the injection molding process. This is dependent on the size of the part, the cycle time, and the material used. If the system is too small, it would not be able to cool the part sufficiently. If too large, the system can become unnecessarily expensive and energy inefficient.
Choosing the best one from all cooling systems
To ensure optimal and consistent features of parts, mold temperature should be controlled accurately and precision is important for reliable cooling. TCUs (temperature controlling units) are capable of delivering the reliability and precision required.
Linkage with The Injection Molding Device
Flexibility of operation is critical and, consequently, the cooling system must be suitably designed for the injection molding machine TCUs. Additional design considerations include the layout of coolant auxiliary transport channels, electrical systems for control signals, and external configuration for reduction of volume and improved positioning.

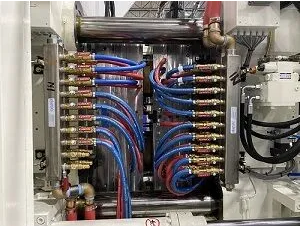

Maintenance Procedures and Fault Prevention
Establishing a preventive maintenance system can reduce unplanned downtime by 80%:
| Maintenance Items | Cycle | Key Indicators | Fault Warning Signs |
| Coolant Cleanliness | Test: Monthly | Conductivity <500 μS/cm, pH = 7.5-9. | Impurity deposition causing a 10% flow rate drop. |
| Pipeline Leakage Pressure | Test: Quarterly | Pressure drop <0.5 bar/30 minutes. | Joint leaks or pressure fluctuations. |
| Pump/Fan Efficiency | Verification | Semi-annual: Flow rate deviation ≤5%, vibration <4.5 mm/s. | Abnormal noise or abnormal current increase. |
HAICHEN Best Cooling Systems Provider
HAICHEN focuses on improving the effectiveness. And accuracy of working processes in injection molding through advanced cooling systems which fully integrate with the injection molding device to ensure consistency and quality during operation.
It does not matter how detail syou want, whether it is a simple structure or complex. HAICHEN has cooling systems specially designed for all your specifications.
Beyond that, HAICHEN offers additional integrated technical assistance, supply of spare components and, training to maximize customers’ value from their investments.
Advantages For Manufacturers Operating In Thailand
Thailand manufacturers are aware that an optimal selection of a cooling system will improve productivity and enhance competitiveness at the same time. HAICHEN’s cooling systems have a number of advantages, including:
- Maximized Productivity: Manufacturers can accomplish more shifts owing to the reduced cycle times that are made possible through use of advanced cooling systems.
- Enhanced Product Standards: Cooling parts uniformly facilitates production at high precision and great accuracy which adds to the quality of the product.
- Reduction of Expenses: An energy conserving design HAICHEN implements in its cooling systems enables its users to reduce their costs and negative impact on nature.
Consideration of various sorts of factors such as: burst mold design, cooling medium, system level, temperature relation et cetera serve to meet specific needs and ultimately surpass injection molding efficiency utilizing the exact correct approach to the injection cooling system used.
