basic principles of injection molding：
- Raw material pre-treatment
- Heating and melting of plastics
- High-pressure injection
- Cooling and curing
- Mould opening and removal of finished products

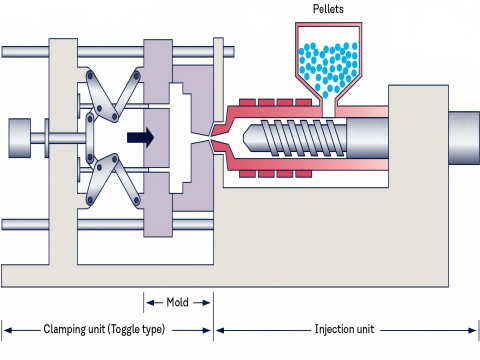

The injection molding principle revolves around heating and melting plastic in the machine’s heating barrel, followed by injecting the molten plastic into a closed mold cavity.
This process combines high precision and high productivity, making injection molding a pivotal method in plastic molding.
Basic principles of injection molding–Step1:Raw material pretreatment

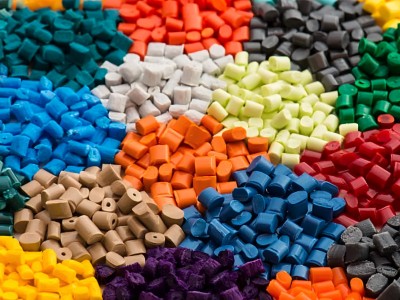

First of all, add the plastic particles or powder raw materials are into the hopper of the injection molding machine.
And melt the plastic in a viscous flow state through heating and the rotation of the screw gradually.

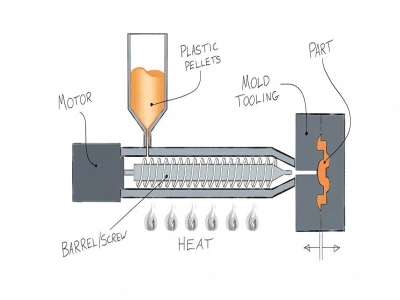

Basic principles of injection molding–Step2 :Plastic heating and melting

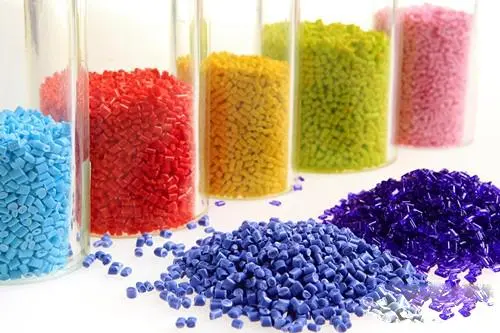

Secondly, put the plastic pellets or powder into the hopper of the injection molding machine.
Heat these plastic particles to a molten state by the rotation of the screw and the action of the heating element.
This process is usually done in the plasticizing unit of the injection molding machine.
Which consists of a heated barrel and a screw that rotates to push the molten plastic forward.
Basic principles of injection molding–Step3:High-pressure injection
Molten plastic is injected under high pressure into a closed mold cavity.
This process is taken care of by the injection unit of the injection molding machine.
Which uses the pressure of the screw to inject the molten plastic into the mold.

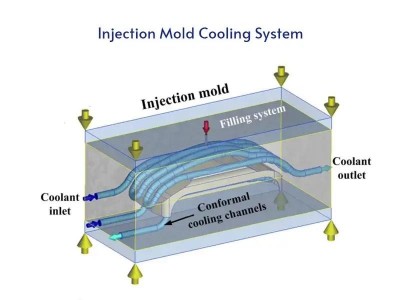

Basic principles of injection molding–Step4:Cooling and curing
The plastic cools and solidifies inside the mold cavity to form the desired shape.
That is to say,cooling time is one of the longest stages in the entire injection molding process.
So the optimization of the cooling system is crucial.
Step5:Mould opening and removal of the finished product
When the plastic is fully cured, the mold is opened and the finished product is removed from the mold.
This step marks the end of one production cycle and prepares the way for the next.
Step6:Cycle & Optimization
Injection molding is a cyclical process where after each cycle is completed,
the machine recloses the mold and prepares it for the next injection.
With attention to modern injection molding processes also incorporate scientific injection molding (or decoupling injection molding) techniques to optimize the production process through precise control of parameters such as temperature, pressure, and time.
The latest technological progress in the injection molding process
Intelligent control and automation
The latest injection molding machine adopts an advanced intelligent control system,
with automatic diagnosis, automatic adjustment, automatic optimization and other functions.
These systems enable precise control of the injection molding process through intelligent algorithms,
resulting in improved production efficiency and product quality.
In addition, modern injection molding machines are fully automated,
and the machine can complete the production process automatically by setting parameters and programs,
which significantly improves production efficiency and product quality.
Energy-efficient and modular design
The new injection molding machine uses efficient hydraulic and electrical technology to improve the stability and reliability of the machine.
At the same time, the modular design makes machine service and maintenance more convenient,
reducing downtime and reducing maintenance costs.
In addition, the application of energy-saving technologies also reduces energy consumption and emissions,
in line with the requirements of green manufacturing.

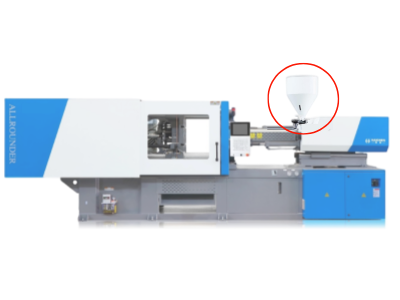

Centralized feeding system
The centralized feeding system injection molding machine not only solves the problems of low efficiency.
And waste of raw materials manually added by traditional injection molding machines.
But also improves production efficiency and quality stability by supplying raw materials to the injection molding machine in a centralized manner.
High-speed and micro-injection molding process
It is worth mentioning that the high-speed injection molding process can complete the injection molding process in a short time, improving production efficiency and reducing defects.
The micro-injection molding process enables the manufacture of extremely small and highly precise products for applications.
Such as electronics and medical devices.
Application of new materials
New polymers such as specialty polyesters and high-performance polyamides are widely used in injection molding.
And these materials have excellent mechanical strength.
Heat and chemical resistance, making them suitable for high-end manufacturing.
Optimization of process parameters
In addition, reasonable setting of injection molding process parameters can reduce energy consumption.
And scrap rate in the production process, and improve production efficiency.
For example, the production process can be optimized by adjusting parameters such as injection speed, dwell time, and cooling time.

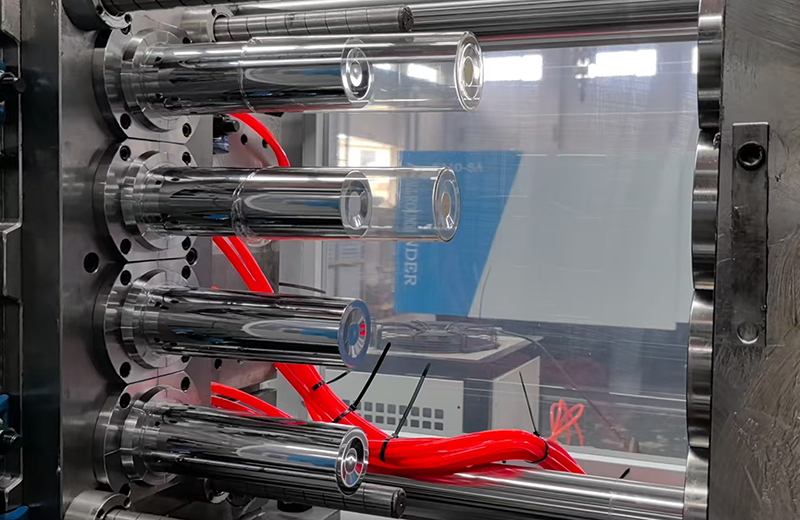

Precision mold design and manufacturing
Precision mold design and manufacturing is the key to improving product quality.
CAD/CAM software is used to ensure the accuracy and stability of the mold.
And advanced processing equipment and technology are used to produce high-precision and complex shape molds.
Haichen Injection molding machine
By all means,injection molding is an efficient and precise manufacturing process in electronics, medical, home appliances and other fields.
To be sure,the key to its success lies in the precise control of equipment, processes and molds.
As a reliable supplier, Haichen can help customers purchase injection molding machines.
You can contact haichen at any time to get the information you want to know.
