Minimum and maximum mold height are critical to optimizing the injection molding process and balancing production efficiency.
In the field of injection molding, mold height is a critical parameter that determines production efficiency and product quality.The mold height includes the minimum and maximum mold height. It directly affects the selection of injection molding machines, mold design and the quality of the final molded parts.This article will delve into the significance of these parameters and their impact on the injection molding process.
Overview of Minimum and maximum mold height

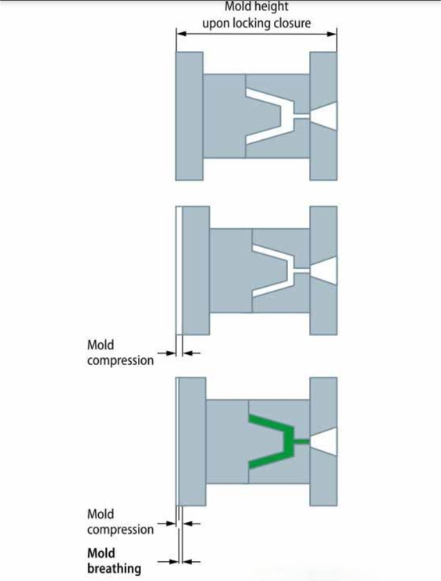

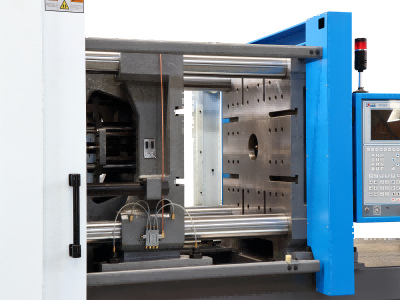

Mold height usually refers to the vertical distance from the mold base to the top of the mold when the mold is closed.This parameter is crucial to ensure that the injection molding machine can accommodate the mold and that the injection process goes smoothly.

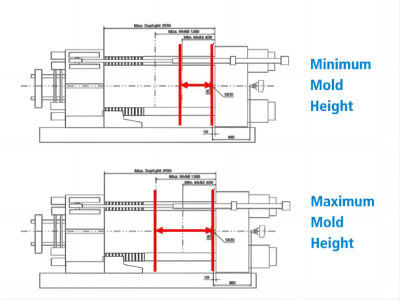

MIN Mold Height:
Minimum mold height refers to the minimum mold height that the injection molding machine can handle. This parameter is crucial for the production of small or thin-walled parts.
Smaller mold heights are suitable for the production of small or thin-walled plastic parts, such as gadgets and toy parts. However, too low a mold height may limit the flexibility of mold design and injection parameters, affecting product quality and production efficiency.
MAX Mold Height:
Maximum mold height refers to the maximum mold height that the injection molding machine can accommodate in the closed state. This parameter is usually limited by the clamping unit (i.e. clamping force) and template size of the injection molding machine.
A larger mold height is suitable for the production of large or thick-walled plastic parts, such as automotive parts, home appliance housings, etc. However, too high mold height may increase the mechanical load of the injection molding machine, affecting its stability and durability.
Analysis of Haichen injection molding machine mold height
Different models of injection molding machines have different minimum mold heights and maximum mold heights. Haichen injection molding machines offer a variety of models to meet the needs of molds of different sizes. The following is an analysis of the mold height of several specific models:

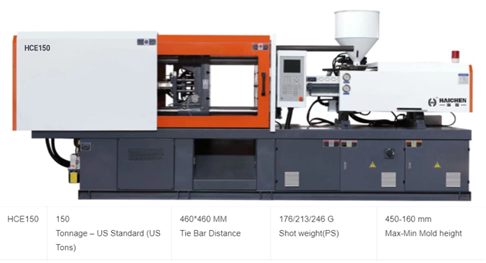

Haichen E series 150-ton injection molding machine mold height:
Min. Mold Height: The minimum mold height supported by the Haichen E series 150-ton injection molding machine is 160mm, which is suitable for the production of small precision parts.
Max. Mold Height: The maximum mold height of this model can reach 450mm, providing enough space for medium-sized molds.

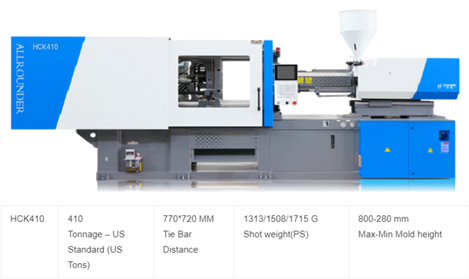

Haichen K series 410-ton injection molding machine mold height:
Min. Mold Height: For applications that require larger mold space, the minimum mold height of the K series 410 tons is 280mm
Max. Mold Height: The maximum mold height of this model of injection molding machine is 800 mm. Haichen K series are all servo injection molding machines, which are the best among Haichen injection molding machines, suitable for the production of medium and large plastic products such as plastic buckets and plastic chairs.
Measurement and adjustment of Minimum and maximum mold height
Before installing the mold, the mold height should be accurately measured to ensure that it meets the technical requirements of the injection molding machine. In some cases, the mold may need to be adjusted or modified to suit a specific injection molding machine.
The impact of Minimum and maximum mold height on production

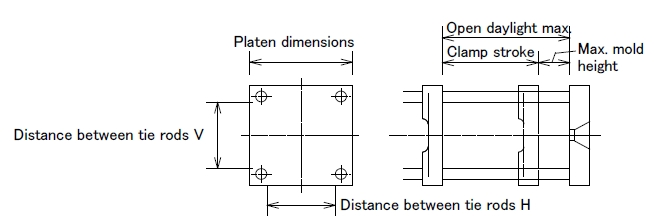

The mold height is directly related to the opening and closing stroke of the injection molding machine, ensuring that the mold can be fully closed and withstand the injection pressure. The mold height also affects the clamping force of the injection molding machine. Too high or too low mold height may cause problems during the injection molding process.
Appropriate mold height can ensure the stability of the injection molding process, reduce the failure rate in production, and improve production efficiency. Optimization of mold height can also reduce material waste and improve the molding quality of the product.
Balancing Minimum and Maximum Mold Heights
It is critical to strategically select the appropriate mold height based on production needs. The choice of mold height affects the overall productivity and quality of the injection molding process.
How to choose the right mold height?
First, the basic height requirements of the mold must be determined based on the size and design of the product, ensuring that the mold can accommodate the vertical dimensions of the product. And leave enough space for the injection and cooling processes.
Next, evaluate the mold design, including the gate system, cooling channels and other necessary components. These will affect the overall height of the mold.
When selecting the mold height, you also need to consider the technical specifications of the injection molding machine. To ensure that the maximum and minimum mold height range of the selected machine matches the mold design.
In addition, injection pressure and clamping force are key factors. Because taller molds may require greater clamping force to prevent deformation during injection.
Production efficiency is also important. Mold height affects the molding cycle time, including filling, holding and cooling stages, so choosing the right mold height can help optimize the production process.
Mold height is a key parameter that cannot be ignored in injection molding. It not only affects the selection of injection molding machines and the adaptability of molds but is also directly related to production efficiency and product quality. Understanding the minimum and maximum mold height is crucial to the success of injection molding. Choose an injection molding machine that can adapt to the required mold height range to ensure an efficient production process and excellent product quality.
Understanding Maximum Size Limitations in Injection Molding
The maximum size for injection molding is directly tied to mold height capabilities. A machine’s Max mold able range determines the largest product dimensions it can produce. As exceeding this threshold risks incomplete filling or structural defects. At Haichen, our injection molding machine mold systems are engineered to support extended maximum mold heights. Enabling manufacturers to tackle large-scale projects like automotive components or industrial containers. By optimizing the relationship between mold height and platen size, we ensure consistent pressure distribution even for oversized molds.
