The Injection molding car parts process involves heating plastic pellets until molten, injecting the material into a precision mold under high pressure, cooling and solidifying the plastic within the mold, and then ejecting the finished part for quality inspection and finishing.
An injection molding process is very important due to the growing demand for precision car parts in the automotive industry.
Every modern car contains interior parts like door panels, dashboards, and exterior components like fenders and bumpers which all get manufactured using the injection molding process. Today, reliability and quality are crucial components in the automotive industry, and this process meets the criteria for both these expectations.
In this piece we cover how the injection molding works for car parts and its contribution towards quality automotive parts manufacturing.
The Advantages of Injection Molding Technology in Automotive Parts Manufacturing
Injection molding is the go to choice for the automotive industry as it allows for the production of complex shapes with high precision and quality during mass production. The method itself is done by injecting heated plastic or resin into a mold cavity, and it gets cooled and hardened as it taking the shape of the desired part. Injection molding allows for very high quality car parts which meets all the required standards, ensuring the reliability and safety of the car.
For injection molding Dashboard panels, door handles, and other components requires the need for high precision and durability, which are best met through this method.
The ability to create intricate designs and integrate multiple functions into a single part also reduces assembly time and enhances the overall efficiency of the manufacturing process.
Injection molding car parts Process
- Design and Tooling
- Material Selection
- Injection Molding Machine Setup
- Cooling and Ejection
Design and Tooling
The first step in injection molding car parts is designing the mold. This includes preparing a detailed part’s CAD model. And then cutting a steel or aluminum mold corresponding to the part’s outline. The mold must be of high precision otherwise the part will not be accurate.
While designing the mold for a car’s dashboard panel, the engineers need to think about the panel’s curvature. And the location of buttons and vents that will be used as well as the interfacing aspect of the panel with the interior of the car.
Using the CAD model, it is possible to carry out process simulation. Thus making it possible to improve the mold design to eliminate possible defects like warping and sink marks. After the development of the CAD model, advanced machines are used for precision blade fabrication of the mold to the specified tolerances.
Design details and material selection are very important in ensuring the mold is capable of maintaining consistent quality in part production.
Material Selection
It is extremely important to choose the right material. In most cases automotive parts need materials with specific requirements like structural strength, temperature endurance, and toughness to impact. Materials that are frequently used for injection molding of automotive parts are ABS, polycarbonate and nylon. Above all different materials can be used based on their property benefits. Making them fit perfectly to suit varying needs within the automotive industry.
- ABS: With a favorable balance of strength, toughness, and processability, ABS is frequently used for interior parts such as dashboard panels, door handles, and trim pieces. It is very good at resisting impacts, can be easily wrought into complex shapes, and is ideal for components that undergo daily wear and tear.

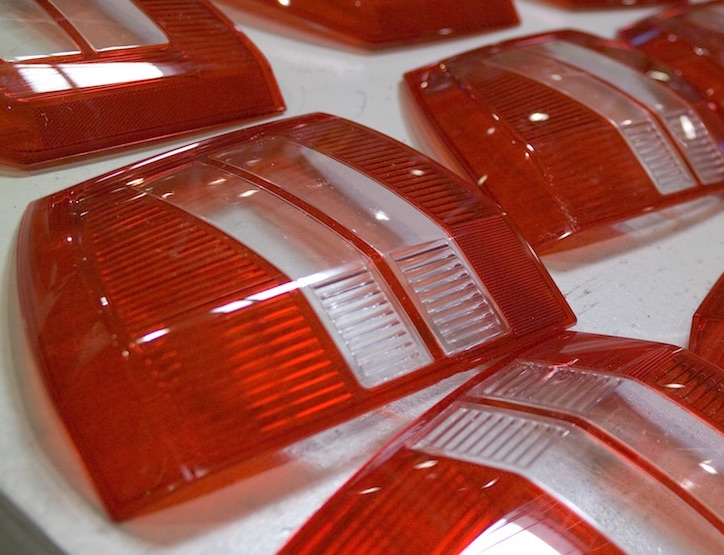

- Polycarbonate: This material is known for its clarity and remarkable impact resistance. It is primarily employed in automotive glazing applications, including headlights, taillights, and various other lighting elements. Additionally, polycarbonate can endure high temperatures, making it ideal for components that are subjected to heat, such as engine covers and instrument panels.
- Nylon: Nylon is noted for having high strength, good flexibility, and being chemically and abrasion resistant. It is typically utilized for under-the-hood parts such as engine mounts, air intake manifolds, and fuel system components. It’s mechanical properties alongside thermal endurance make nylon advantageous for components that operate in extreme conditions.
Injection Molding Machine Setup
An injection molding machine is integrated with a mold for heating plastic to a molten state. And constantly injecting it into the mold cavity under extremely high pressure. Additionally, the machine will help maintain consistent part quality which is important for precise temperature and pressure controls.
For producing parts in automotive use, an injection molding machine. And its components like the barrel, need to be set to specific geometries and material properties to properly calibrate the machine for set speeds to fill. And completely cover the mold cavity with molten plastic evenly, inject speeds, cavity pressure holding, and barrel flow rates. Additionally, barrel temperatures need to be set also.
Cooling and Ejection
The steps involved in injecting plastic into the new mold are: deeming the part complete, ejecting. And opening mold, and merging the work done. All parts are produced with an extremely high rate of accuracy in replication, precision. And symmetry while retaining a large amount of speed, making everything seamless and flawless.
Care must be taken to ensure that mold temperature during the cooling stage is kept at the proper setpoint mold temperature to allow for uniform cooling without the risk of defects like a shrink and warp.
A careful setup must be made for the suspension part. Mainly to ensure the ejectors do not become stressed during part extraction. Parts are usually treated with a ton of stress-relief and. To ensure easy punch use, use of pins or plates also works which will be positioned to avoid the bearing points.

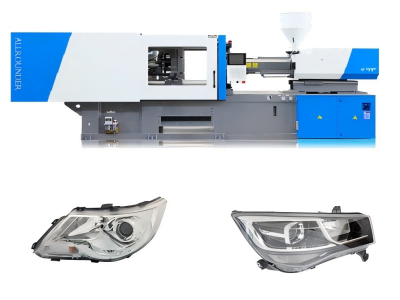

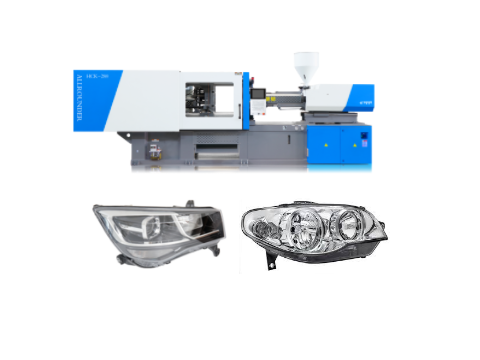

Injection Molding Machine for Automobile Parts
Car parts require an advanced level of solutions proficient in their production. And HAICHEN is one of the leading injection molding specialists that have proven portable, reliable machines with over two decades of experience in the automotive field. Our machines range from 30 tons to 3000 tons.
Equipped with the latest technology, HAICHEN injection molding machines ensure precise control over the injection molding process.
Cycle times are maximized within HAICHEN machines and production output is optimized.
At HAICHEN, we guarantee quality, consistency and reliability with every injection molding machine produced.
After the purchase, we do not abandon our clients; instead, we provide detailed training, maintenance. And installation services oh how to effectively and efficiently operate the machines.
Automotive Parts Manufacturing Opportunities In Thailand
Thailand represents one of the fastest emerging countries in Southeast Asia in terms of automotive industry development. And then the automotive parts industry is developing alongside and its constituent components and varies in scope and intricacy.
Drivers of foreign direct investments are greatly enhanced as the government offers tax holidays and other incentives. In particular, the new EEC policy blueprint provides well-defined policies including law applicable to zones of advanced technology.
Thailand’s attention toward Innovation and Sustainability resonates with the energy saving and technologically advanced features of HAICHEN’s machines.
In conclusion, Injection molding is a fundamental step of automotive part manufacturing. An in-depth study and meticulous optimization of every stage of the process, helps manufacturers ensure production of dependable automotive parts.
