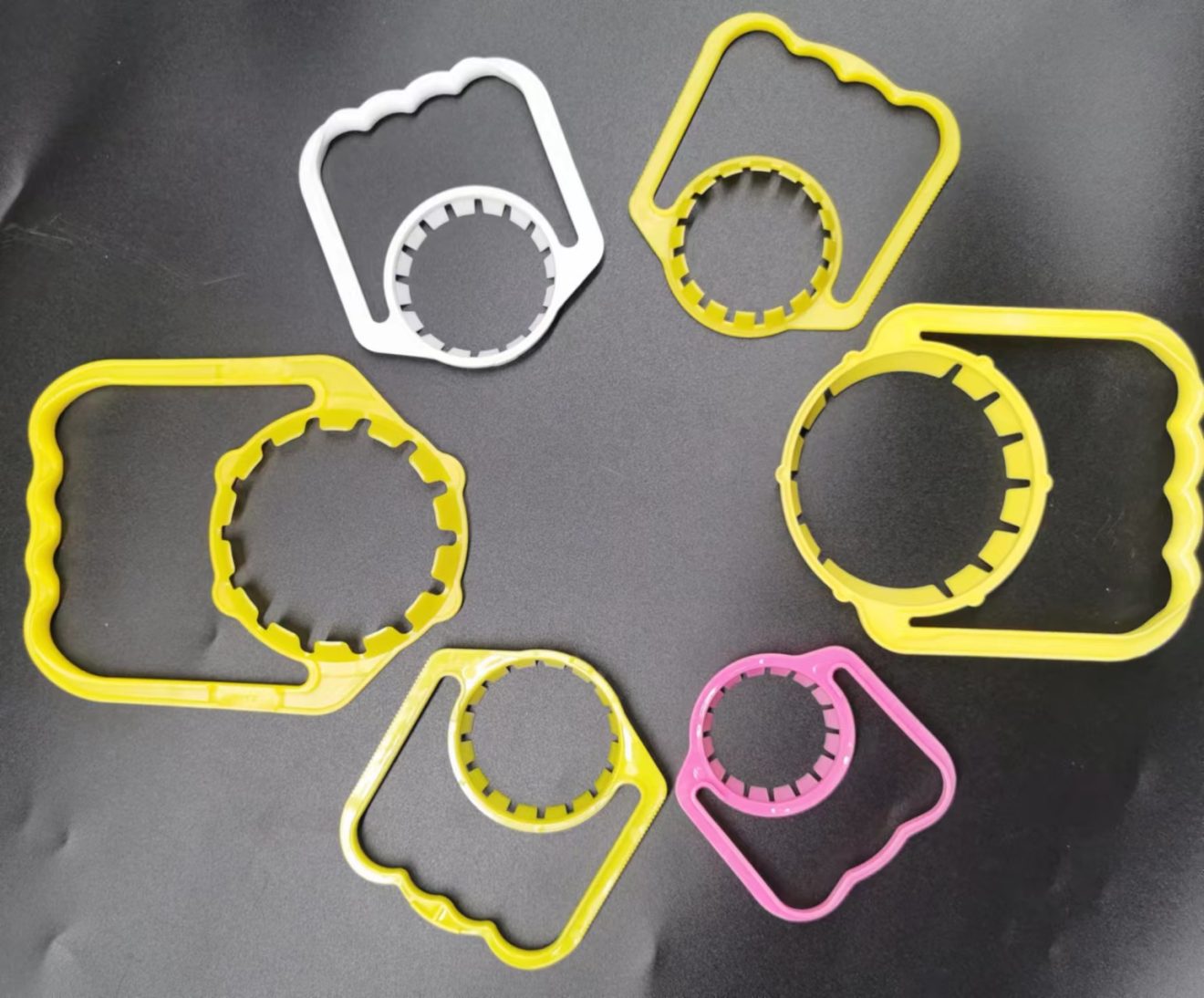

The injection molding process of bottle handle involves melting plastic, injecting it into a mold cavity, cooling, and ejecting the handle.
Methods Injection molding is the most common method for manufacturing plastic bottle handles. This method consists of using tools to form molten plastic into the desired shape through a cavity (in a mold).
The accuracy and the efficiency of injection moulding make it suitable for the large-scale production of bottle handles with same dimension and complex design.
This paper will dissect the operation of bottle handle injection in injection moulding process of bottle handles, material selection, mold design, the injection molding cycle, and post-processing techniques.
Additionally,
we will introduce the benefits of needing to use injection moulding towards the production of bottle handles, including cost efficiency, durability, and the ability to create complex shapes with minimal waste.
Design and Preparation
- Mold Design
- Material Selection
- Material Selection

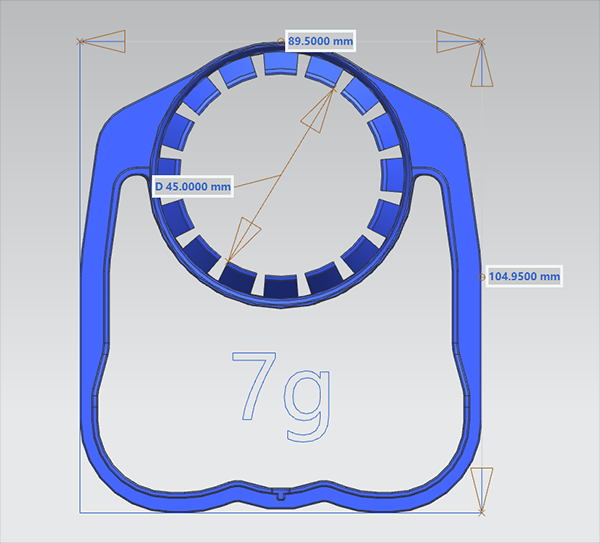

Mold Design
Design the Mold The initial step in the injection molding process is to develop the mold. The mold is an important factor that affects the shape and size of the bottle handle. A set of high-precision molds is required to make handles with close tolerances and smooth surfaces. HAICHEN engineers work on the point of the mold to make the bottle handle the exact type, size and technical detail so that it is perfect fit for the handle and no need secondary operation.
Material Selection
Selecting the suitable plastic material is fundamental to a production of good bottle handlers. PP and PE materials are popular choices among engineering teams because they are not only strong and flexible but also wear resistant. Their performance properties lead to the development of long lasting, light weight and ergonomic products.
Injection Molding Process
- Injection
- Cooling and Solidification
- Ejection
Injection
The injection is the heart of the process. Hot plastic is forced into the mold under extreme pressure. This operation demands strict temperature and pressure control as well as optimal injection speed so that the plastic flows evenly into the cavity and fills it completely. HAICHEN’s injection molding machines are high-quality machines that produce bottle handles with exacting precision and perfect consistency every time.
These machines utilize sophisticated sensors and controls to control the injection process and maintain tight processing windows, i.e. dose of material, heat range and time, pressure and more. The ability to maintain tight tolerances during the injection phase is crucial for producing bottle handles that meet the highest standards of durability and aesthetic appeal.
Cooling and Solidification
When the molten plastic is set in the mold, it cools and solidifies. Adequate cooling is necessary to avoid defects like shrinkage or warping. And then they lower the temperature of the bottle handle gradually, which allows equal solidification and product soundness. HAICHEN’s machines are able to do rapid cooling to reduce the cycle time.
Such systems are configured to achieve the best cooling rates possible, not only to ensure the production of high-quality final products, but also to increase the productivity of the production process by shortening the cycle time.
Ejection
The bottle handle is ejected in solid state from the mould when the plastic has solidified. The extractor system needs to prevent the handle from being damaged while it is being removed. HAICHEN machines are equipped with high quality ejection systems that work perfectly and ensure that finished parts are ejected directly from the mold.
The system are engineered meticulously so that the bottle handles are thrown out without any defects or deformities.
Post – Processing
- Trimming and Finishing
- Quality Inspection
Trimming and Finishing
inally, any extra material is trimmed and surface finishing is conducted to guarantee that the bottle handle is of the highest quality and appearance. Above all these steps ensure that each handle is ready for use and meets the required specifications.
The surface finishing can include, for example, polishing, painting, coating, applying a protective coating, etc. to improve an aesthetic sense or a durability of the bottle handle. These processes also guarantee that each handle is prepared for use and that it is the right size and quality, resulting in a quality product in both use and appearance.
Quality Inspection
Every bottle handle is quality tested to the maximum level of performance. HAICHEN’s quality control processes ensure that every handle is free from defects and ready for use.

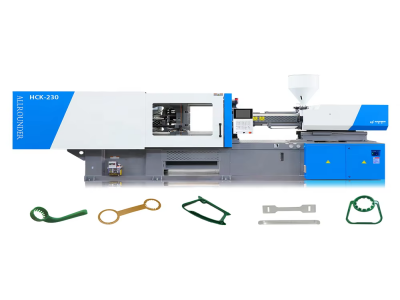

HAICHEN Plastic Bottle Handle Injection Molding Machine Manufacturer
HAICHEN is the leading manufacturer of high-performance machines. UseProgrammable logic controller Hall effect feedback control system High response oil-way system Features of HAICHEN injection molding machines High energy savings — Under normal operating conditions, compared with conventional Hoe, energy saving of 30-50%. Our advanced machines are engineered to provide high performance about the quality and uniformity of each produced bottle handle.
Equipped with features such as advanced positioning and precise temperature control. HEICHEN machines help maintain an edge in the production process and over production costs. Whether you are creating bottle handles or other bakelite products, HAICHEN Machinery can give you a bit of help.
Companies can capitalize on our expertise to have HAICHEN produce bottle handles that are both durable and good looking, while also being produced with both efficiency and accuracy.
In conclusion, the standard of bottle handle injection molding,To achieve high quality and efficient production of the business aims. Through the mold design, material, the injection molding process. And post processing, manufacturers can ensure consistent results and high – quality products.
