What machines are used to make pens?
The answer is 4 different machines and some pen molds to produce pens, as below:
- Pen Injection molding machine
- Ink filling machine
- Pen Automatic assembling machine
- Pen molds
- Pen printing machine
People are always interested in which machines we need to produce a ballpoint pen. Above is the list of the machines that will produce a ballpoint pen.
Clients may focus on how pens are made. The production of ballpoint pens requires a variety of machines that cover all aspects from raw material processing to finished product assembly. The following are the main machines which are required to produce ballpoint pens:
Pen Injection molding machine:

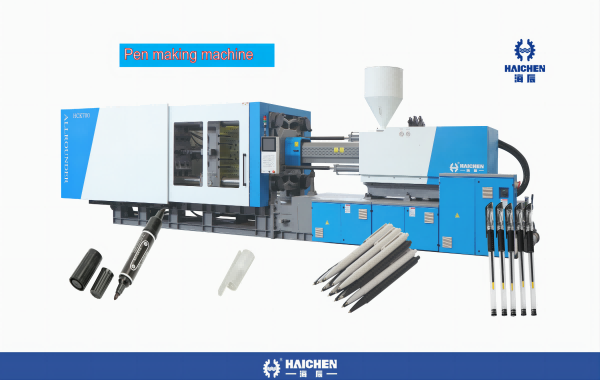

It is used to heat, melt, and inject plastic particles into the mold to form the shell of the ballpoint pen. Our Haichen plastic injection molding machine has rich experience in pen making.
Haichen produces injection molding machines for ballpoint pens. The machines HCK110, HCK 150, HCK 180, and HCK 250 suit for pen manufacturing.
Pen making machine
Ink filling machine:

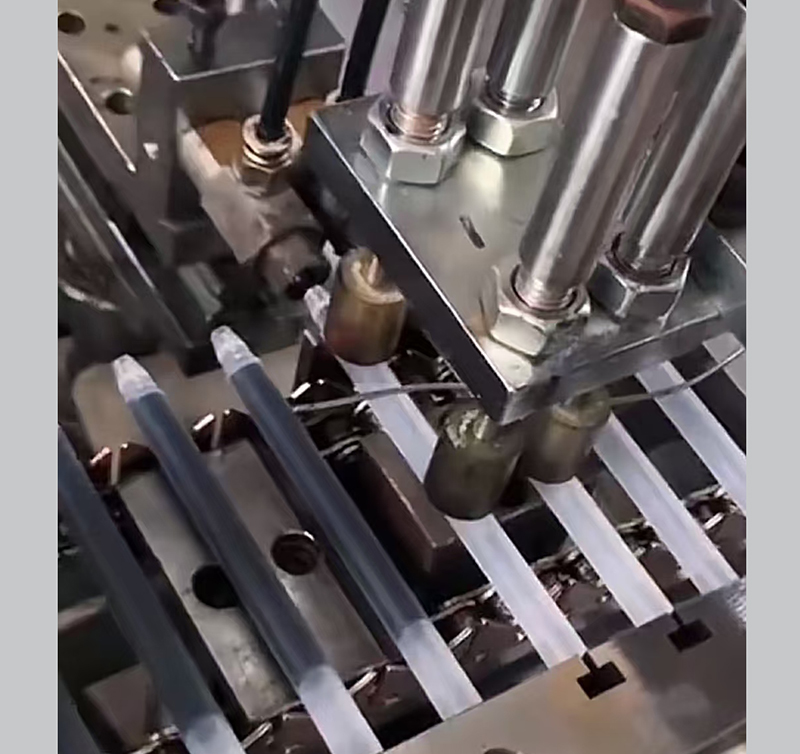

A pen ink filling machine is a device specifically designed to inject ink into pen refills.
Its design and functionality aim to improve production efficiency, reduce manual operation errors, and ensure product quality.
The modern pen refill ink filling machine achieves precise control of the hydraulic cylinder stroke by controlling the stroke of the stepper motor through PLC, thus achieving the purpose of quantitatively adding ink. In addition, some high-end models are equipped with vacuum generators to ensure that no bubbles are generated during the ink addition process, and use an automatic turntable system to automatically replace and rotate the ink tank, thereby achieving automatic loading and unloading functions.
The high-precision and high-efficiency ink filling machine for pen refills pays attention to anti drip issues in its design. Through optimized design and the application of high-tech, it has achieved automation and intelligence in liquid product filling, greatly improving production efficiency and ensuring product quality. For example, some models use a two-stage filling gun design to improve filling accuracy, and the contact surface with the raw material is designed entirely of stainless steel, making it easy to operate and learn.
The ink filling machine for pen refills is not only suitable for pen refill production, but can also be applied to other occasions that require precise filling. For example, it can also be used for automatic quantitative canning of liquid materials in various industries such as food, pharmaceuticals, and chemicals. This multifunctionality makes the device have a wide range of market application prospects.
Pen Automatic assembling machine:

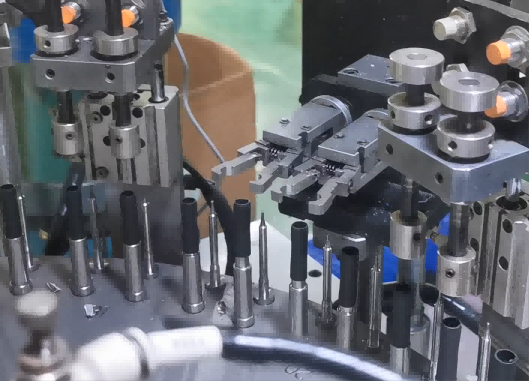

It is used to automatically assemble the pen barrel, refill, and pen tip into a complete ballpoint pen.
This type of machine can improve production efficiency and reduce labor costs. It is widely used in the production process of gel pens and ballpoint pens.
This high-quality assembly machine has been developed mainly for the production of different kinds of ball pens and gel pens. Easy operation and labor-saving.
The automatic assembly machines used in ballpoint pen production mainly include the following 6 types
- Gel pen automatic assembly machine
- Rapid automatic assembly machine
- Fully automatic ballpoint pen assembly machine
- Intelligent double-outlet ballpoint pen automatic assembly machine
- Direct liquid ballpoint pen assembly machine
- Key ballpoint pen automatic assembly machine
Gel pen automatic assembly machine:
This machine is mainly used for the automatic assembly production of various types of gel pens and ballpoint pens. It adopts a European high-rigidity structure and has advanced high-performance PLC with touch screen control, simple operation, variable frequency speed regulation, and energy saving.
Rapid automatic assembly machine:
This device includes a support workbench, a main mounting frame, a pen body limit frame, and other components, which can achieve rapid assembly.
Fully automatic ballpoint pen assembly machine:
This machine can achieve 24-hour uninterrupted production, the production efficiency is 10-15 times that of manual labor, the product quality is stable, and labor costs are saved.
Intelligent double-outlet ballpoint pen automatic assembly machine:
This machine has the characteristics of high production efficiency and low failure rate, suitable for receiving parts in batches and positioning them in specific positions.
Direct liquid ballpoint pen assembly machine:
This machine is mainly used for the assembly of direct liquid ballpoint pens, with high production efficiency and stability.
Key ballpoint pen automatic assembly machine:
This machine is mainly used for the automatic assembly production of key ballpoint pens, with high rigidity structure and intelligent control, easy to operate
Advantages and disadvantages of ballpoint pen automatic assembly machines
Ballpoint pen automatic assembly machines have significant advantages and some disadvantages in the production process of ballpoint pens.
Advantages:
1. High production efficiency: The ballpoint pen automatic assembly machine can realize automated production, greatly improve production efficiency, and reduce manual operation time and labor intensity.
2. Save time and effort: Due to the high degree of automation and simple operation, it can effectively save manpower and time and improve production efficiency.
3. High stability: Modern ballpoint pen automatic assembly machines usually adopt high-performance PLC control and variable frequency speed regulation technology to ensure the stability and durability of machine operation.
4. Low failure rate: Some advanced ballpoint pen automatic assembly machines are designed with a variety of detection and protection mechanisms, which makes the machine failure rate low and reduces downtime in production.
5. Energy saving: The use of variable frequency speed regulation technology can effectively reduce energy consumption and achieve energy-saving production.
Disadvantages:
1. High initial investment: Although automated machines improve production efficiency and stability, their initial investment cost is high and requires a high capital investment.
2. Complex maintenance: The maintenance and repair of automated machines are relatively complex and require professional technicians to operate and maintain.
3. Poor adaptability: Certain specific models of ballpoint pen automatic assembly machines may only be able to adapt to specific types of ballpoint pen production and have poor adaptability.
Ballpoint pen automatic assembly machines have significant advantages in improving production efficiency, reducing labor costs, and improving product quality, but they also have disadvantages such as high initial investment and complex maintenance.
Pen mold:
Plastic pen molds are used to make ballpoint pens, including molds for pen caps, pen covers, and other parts
Pen printing machine:

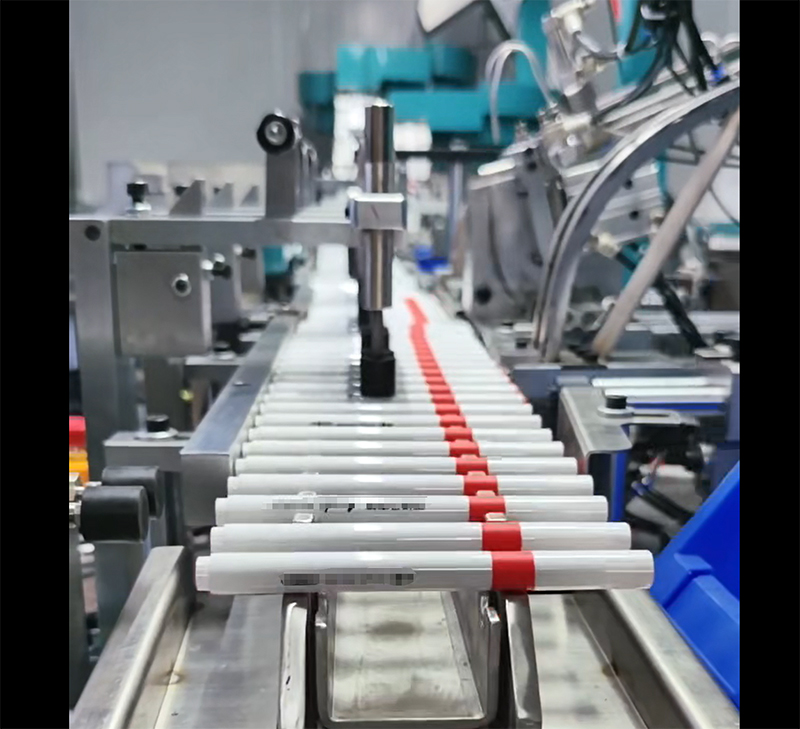

The pen printing machine is used for screen printing or pad printing on pen barrels to add decorative effects.
Ballpoint pen printing machines are widely used in fields such as advertising pen printing and personalized promotional pen printing.
Can be used for printing text and patterns on products such as silk screen logos, plates, keychains, etc.
Conclusion
These machines together constitute a complete production line for ballpoint pen production. From the processing of raw materials to the packaging of finished products, each step requires corresponding special equipment to ensure production efficiency and product quality.
It need four machines and some molds to produce an ballpoint pen.
