Materials for heater bands are ceramic, mica, stainless steel braid, and aerogel for injection molding machine.
The heating tape is an important heating element in injection molding machines, used to heat pipes or molds to ensure uniform temperature.
The materials of heating tapes may include metal alloys, ceramics, mica, silicone rubber, etc.
Injection molded heating tapes are made of high-quality metal alloy materials, such as nickel-chromium alloy or iron-aluminum alloy.
To ensure uniform temperature on the hot surface and eliminate hot and cold spots.
Silicone rubber heating tapes, composed of nickel-chromium alloy wires and silicone rubber insulating layers, feature flexibility and high-temperature resistance.
In addition, the mica tape heater uses mica as the insulating material and is suitable for low-temperature applications.
Nickel-chromium alloys have better high-temperature strength and corrosion resistance.
While iron-aluminum alloys have higher temperature resistance but lower mechanical strength.
Silicon carbide is a non-metal.
It can withstand high temperatures but may have a relatively short lifespan.
Nickel-chromium alloys have high strength at medium and high temperatures, while iron-aluminum alloys are prone to deformation at high temperatures.
Silicon carbide has a relatively high thermal conductivity, but it is a non-metal and may be used in higher-temperature environments.
Mica has a temperature resistance ranging from 500 to 1000°C and is suitable for insulating layers.

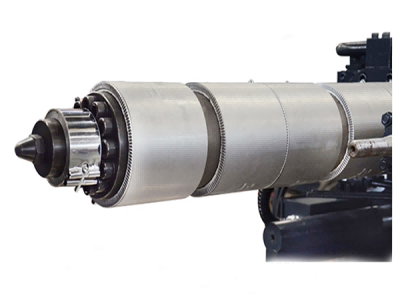

Injection Molding Machine Heating Ring
Heater bands for injection molding is a key component used for barrel heating in plastic processing equipment.
And its core role is to convert electrical energy into heat energy to make plastic raw materials reach a molten state to meet the requirements of the molding process.
As the core component of the temperature control system of the injection molding machine.
The performance of the heating ring directly determines the uniformity of the plastic melt, the molding efficiency and the product quality.
Heater bands for injection molding structural composition
Heating element: usually a resistance wire (such as nickel-chromium alloy), which is responsible for converting electrical energy into heat energy.
Insulating materials: Besides,mica, ceramics and other high-temperature resistant materials to prevent leakage and conduct heat.
Housing: Stainless steel or aluminium alloy to protect internal components and assist in uniform heat dissipation.
Working principle
Resistance heating
The current is generated by Joule heating through the resistance wire, which is conducted to the barrel through contact (traditional mainstream method).
Electromagnetic induction heating
High-frequency current generates an alternating magnetic field through the coil, forming eddy current heating in the metal barrel, and the heating efficiency is higher.
Infrared radiation heating
The use of far-infrared rays directly penetrates the material to achieve non-contact heating, with small thermal inertia and accurate temperature control.
Materials for heater bands
Ceramic
Ceramic heater bands are often used in the heating application of injection molding machines.
because of their excellent high-temperature resistance and uniform heat distribution characteristics.
Mica:
Mica heating strip is a commonly used insulating material with good strength and thermal conductivity.
They are usually wound from nichrome resistance wires or resistance bands, wrapped around mica cores,
and then wrapped with metal sheets (such as stainless steel, brass, etc.).
Stainless steel brand:
Some heating bands have a stainless steel braided construction to enhance their durability and protect the resistance wire inside.
This construction provides additional mechanical strength and corrosion resistance, making it suitable for applications that require high reliability.
Aerogel:
Aerogel is a new type of thermal insulation material with extremely low thermal conductivity and lightweight properties.
Heating bands that use aerogel as insulation can significantly reduce energy consumption while maintaining efficient heating.
Injection Molding Machine heater bands materials
Injection molding machine heater bands a heating devices used in injection molding machines,
and their main function is to heat plastic raw materials to a molten state for injection molding.
Their components are resistance wires or heating elements that generate heat through an electric current and transfer the heat to the surrounding plastic material to reach the desired processing temperature.
In the injection molding machine, wrap the heating belt around the cylinder and nozzle.
With heat, plastic particles remain molten.
This uniform heat distribution is essential to prevent product quality issues.
The design and material selection of heating bands will vary depending on the specific application needs,
For example, some heater bands materials are heater bands can operate at temperatures up to 480°C (900°F) for handling high-temperature resins.
The heater bands of the injection molding machine are an indispensable part of the injection molding process,
which ensures the smooth progress of the injection molding process and the stability of product quality by heating the plastic raw materials evenly.
How Haichen maintains heater bands
Inspection & Cleaning
Haichen regularly checks the resistance value of the heater,
if the resistance value fluctuates by more than 10%, it is recommended to replace it to ensure reliability in the production process.
Check for rust or moisture at the vents, which may indicate internal condensation or a ruptured water pipe, especially if the machine is not running all year round.
Wash the ejector pins, thoroughly clean them every 6 to 12 months with a mold cleaner, and apply lubricant to prevent damage.
Safety Precautions
Use the heater with care to avoid the risk of burns and electric shock.
When opening a manifold heater, all nozzle and sprue heaters (if equipped) must be turned on at the same time,
as this can result in dangerous levels of pressure and cause component failure or leakage of hot stock.
Conclusion
In summary, injection molding machine heater bands such as ceramic heater ,
mica, stainless steel braid, and aerogel, each of which has its own unique properties and application scenarios to meet different industrial needs.
When choosing the heating belt material for the injection molding machine,
it is necessary to consider the temperature resistance, viscosity, thermal stability,
and whether it contains additives and other factors of the plastic material.
