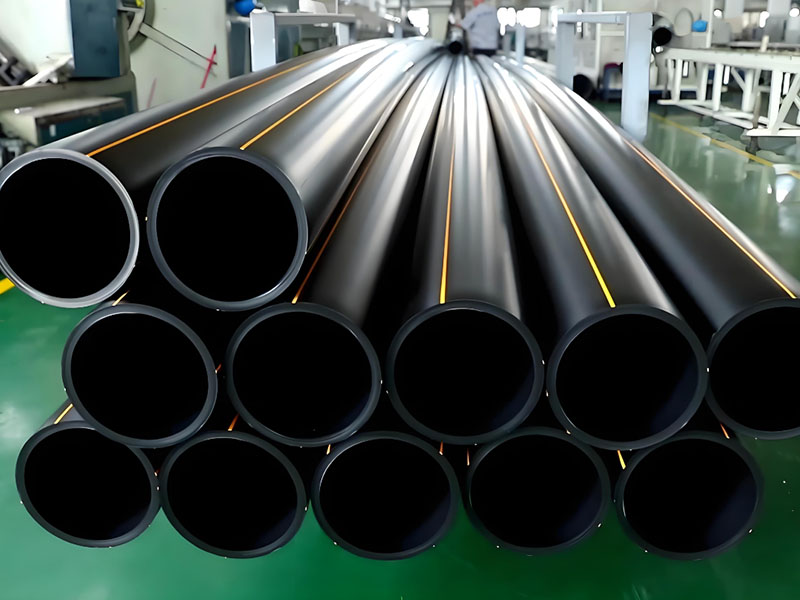

SDR 11 vs SDR 17 ：SDR 11 has thicker walls for high-pressure use, while SDR 17 is more economical for low-pressure applications.

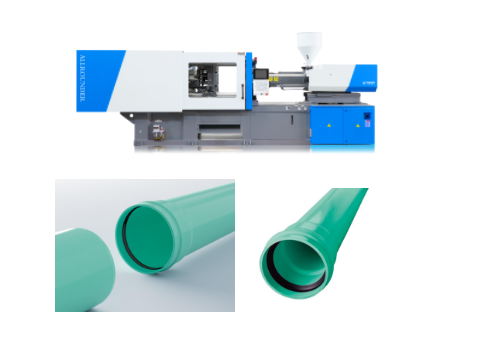

Within plastic injection molding, particularly for pipes and fittings, one often encounters the acronyms SDR 11 and SDR 17. These acronyms denote the Standard Dimension Ratio (SDR) of pipes, an important consideration for the strength, durability, and suitability for application of plastic pipes.
Making the difference between SDR 11 and SDR 17 is important for the proper understanding of the decision-making processes in the area of manufacturing and application. This article is aimed at exploring the characteristics, applications and the major differences between the two standards.
What is SDR?
The Standard Dimension Ratio is one of the methods of calculating the relationship between the outer diameter (OD) of a pipe and the wall thickness of a pipe. It is determined by the following formula:

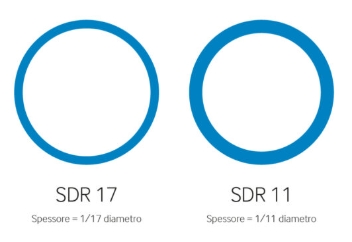

Having a lower SDR means that there is increased thickness of the wall in proportion to the outer diameter, implying better strength and resistance to pressure. On the other hand, a higher SDR means the wall and the outer diameter have a thinner proportion which makes the pipe less suitable for high pressure.
Characteristics of SDR 11 and SDR 17
SDR 11
- Wall Thickness: Thicker compared to SDR 17.
- Pressure Resistance: Higher pressure resistance, making it suitable for high-pressure applications.
- Weight: Heavier due to thicker walls.
- Applications: Commonly used in industrial and commercial applications where high pressure and durability are required, such as water supply systems, industrial pipelines, and certain types of irrigation systems.
SDR 17
- Wall Thickness: Thinner compared to SDR 11.
- Pressure Resistance: Lower pressure resistance compared to SDR 11.
- Weight: Lighter, making it easier to handle and install.
- Applications: Suitable for applications where weight is a concern such as certain types of irrigation, drainage, and other low-pressure systems.
Choosing the Right SDR
Choosing the appropriate SDR relies on specific demands of the application:
- High-Pressure Applications: If a system demands high pressure resistance, SDR 11 is the better choice.
- Weight Considerations: If the application aims for lightness in the pipes for ease in installation or transport, SDR 17 would be advantageous.
- Cost: May be a concern in large-scale projects as SDR 17 pipes tend to be cheaper because of reduced material usage.
Comparison of Injection Molding Processes and Application Scenarios
Key Points in Injection Molding Production
| Step | SDR 11 Challenges | SDR 17 Advantages |
| Mold Design | Requires higher clamping force, cooling channels need to be optimized to prevent shrinkage | Thin walls are easy to fill, and cooling efficiency is high. |
| Process Control | High injection pressure (to prevent short shots), long hold time | short cycle times, and low energy consumption. |
| Cost | High raw material consumption, resulting in high costs | Material savings, resulting in a 15-20% reduction in overall costs. |
Application Scenario Selection
| Scenario | Recommended | SDR Reason |
| High-Pressure Gas/Water Supply | 11 | Pressure resistance ≥ 16 atm, meeting safety regulations (e.g., PE100 SDR11: 11.6 MPa). |
| Agricultural Irrigation/Drainage | 17 | Lightweight for easy installation, resistant to chemicals (fertilizers/acids). |
| Industrial Fluid Transport | 11 | High impact resistance, suitable for media containing particles. |
| Underground Pipeline | 17 | Greater resistance to ring deformation, adaptable to foundation settlement. |

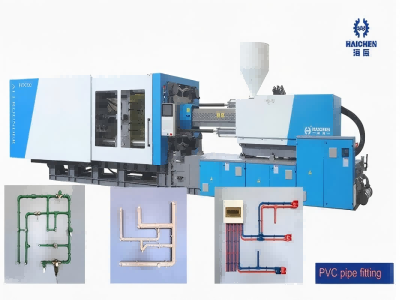

HAICHEN: Your Partner in Precision Injection Molding
The core of HAICHEN’s business lies in the fabrication of precision plastic components molding machines. These include pipes and fittings of different SDR standards. With precision engineering and advanced technology, our machines ensure reliability and stave off quality inconsistency for every production run. HAICHEN is fully equipped and skilled to cater to your exact needs, whether it’s SDR 11 or SDR 17 pipes.
Why Choose HAICHEN?
- Technological Advancements: The injected molding machines feature advanced control technologies and precision production.
- Tailored Solutions: Custom configurations to the machines are available to include production of pipes with different SDR values.
- Quality and Reliability: HAICHEN machines are built to the highest standards of quality and reliability.
- Comprehensive Support: Customer satisfaction committed to providing complete after-sales services, response and instructions of the technician, or maintenance work of the machines.
Understanding the differences between SDR 11 and SDR 17 is crucial for selecting the right type of plastic pipe for your application. SDR 11 pipes offer higher pressure resistance and durability. Making them suitable for high-pressure applications, while SDR 17 pipes are lighter and more cost-effective. Making them ideal for low-pressure applications.
