Switch socket manufacturing process involves several key stages, including design, materials selection, molding, assembly, testing, and packaging.
Here are the details of the manufacturing process.
Design and Tooling
Material Selection
Heating and Melting
Injection
Cooling
Ejection
Trimming and Finishing
Assembly

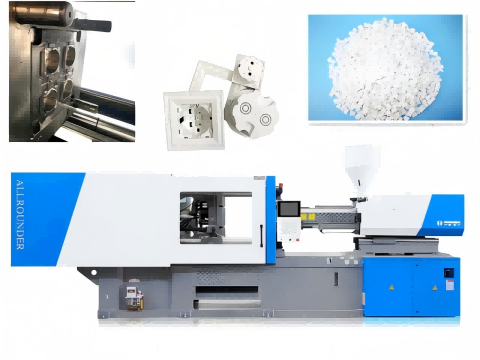

Switch socket manufacturing process
Design and Tooling:
Design:
- The first step is to design the switch socket, considering factors such as material properties, mechanical strength, electrical insulation, and compatibility with other components.
Tooling:
- Based on the design, a mold is created. The mold can create the exact shape and detail of the switch socket.
Material Selection:
- The choice of material is crucial. For switch sockets, common materials are polycarbonate (PC), polybutylene terephthalate (PBT), or other high-temperature resistant plastics due to their insulation and heat resistance.
Heating and Melting:
- The plastic pellets are heated in a barrel until they melt into a viscous liquid. The temperature is critical and must be high enough to melt the plastic but not so high as to degrade it.
Injection of switch socket manufacturing process:
- The molten plastic is then injected under high pressure into the mold cavity.
Cooling of switch socket manufacturing process:
- Once the plastic is in the mold, it needs to cool and solidify.
- The cooling time is crucial as it affects the overall cycle time and the quality of the part.
Ejection:
- After the plastic has solidified, the mold opens, and the now solid switch socket is ejected from the mold. This is often done using an ejector system.
Trimming and Finishing:
- We may need to trim the switch socket to remove any excess material from the edges.
- We can perform this task manually or using automated trimming equipment, and during this stage, we also remove any burrs or rough edges.
Assembly:
- Once the individual switch sockets are molded and inspected, they may be assembled with other components to form a complete switch assembly.

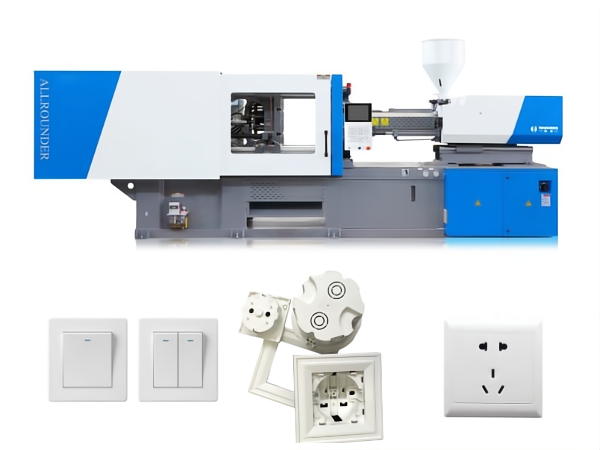

Haichen switch socket injection molding machine
We have rich experience of producing switch socket making machine. With our plastic injection molding machine, you can manufacture different kind of plastic light switch, wall switch, plug in wall lamp and home depot lamp socket.When you have any demand, feel free to contact us. We will supply most suitable plastic switch socket making machine solution according to your specific demand.
Machines can highly automate the switch socket manufacturing process, being capable of producing thousands of switch sockets per day. The use of robotics and automated quality control systems can further increase efficiency and reduce the potential for human error.
