An injection molding machine (also spelled injection moulding machine), also known as an injection press, is a machine for manufacturing plastic products by the injection molding process. It consists of two main parts, an injection unit and a clamping unit.
Injection molding machines typically consist of the following main parts. Structure and function of injection molding machine:
Injection unit: responsible for heating, plasticizing, and injecting plastic particles into the mold.
Mold clamping unit: used to fix the mold and ensure its stability during the injection process.
Control system: used to control the entire injection process, including the adjustment of parameters such as temperature, pressure, speed, etc
Cooling system: used to cool the mold during the injection molding process to ensure that the plastic material can quickly solidify and obtain the desired shape.
To produce toilet seat covers injection molding machine types mainly includes below 3types:
- Horizontal injection molding machine
- Vertical injection molding machine
- Angle injection molding machine
Horizontal injection molding machine
Definition
A horizontal injection molding machine is a common injection molding equipment, in which the injection unit and clamping unit are located on the same horizontal centerline, and the mold is opened in the horizontal direction.
Horizontal Injection Molding Machine is a mainstream equipment for plastic product production, with its mold clamping mechanism and injection device arranged along a horizontal axis, and the mold opening direction is horizontal motion. The core advantages include:
Advantages
- Stability: Low center of gravity design ensures equipment stability during high-speed injection.
- Production efficiency: The demolding linkage device shortens the production cycle and saves 30% energy compared to traditional variable displacement pumps.
- Convenient operation: Horizontal feeding and automatic ejection system simplify the operation process.
- Material adaptability: Can process thermoplastic materials such as PP (polypropylene, commonly used material for toilet seats), ABS, etc.
Disadvantages
It occupies a large area and is suitable for production of various sizes. And the machine cost is higher than vertical injection molding machine.

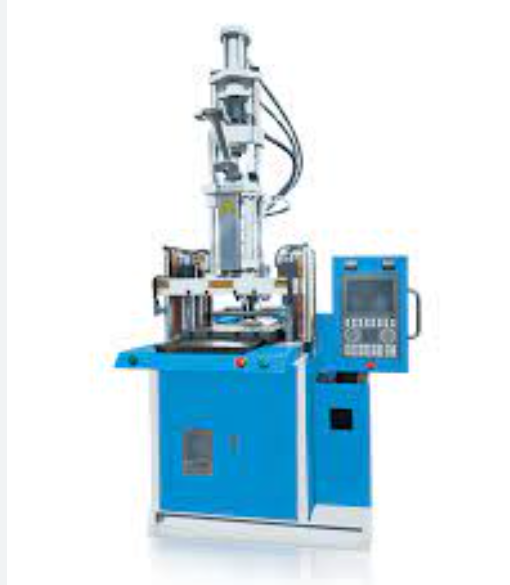

Vertical injection molding machine
Definition
It is an injection molding equipment that places the injection device and clamping device on the same vertical centerline, and its mold opens and closes in the vertical direction. This design allows the mold to close vertically, with the injection mechanism typically located at the top of the mold. Gravity plays an important role in filling the mold cavity and injection pressure, helping to shorten filling time and maintain consistency.
Working principle
The vertical injection molding machine heats plastic particles to melt and inject them into the mold, cools and solidifies to form the desired plastic product. And finally opens the mold to take out the finished product. The injection process usually includes the following stages:
- quantitative feeding
- melt plasticization
- pressure injection
- mold filling and cooling
- mold opening and removal of finished products
Due to the effect of gravity, the required pressure and clamping force are relatively small, so vertical injection molding machines are suitable for producing thinner or thicker parts, but may cause problems such as warping and cracking.
Advantages
Advantages of vertical injection molding machines include small footprint, easy installation and disassembly of molds, suitability for insert molding, high production efficiency, and suitability for small batch production.
Disadvantages
However, its disadvantage is that plastic products need to be manually removed or automated using robotic arms after demolding, which may result in inconsistent cycle times and the risk of component damage. In addition, the clamping force of vertical injection molding machines is usually low, with a maximum clamping force generally below 850 tons.

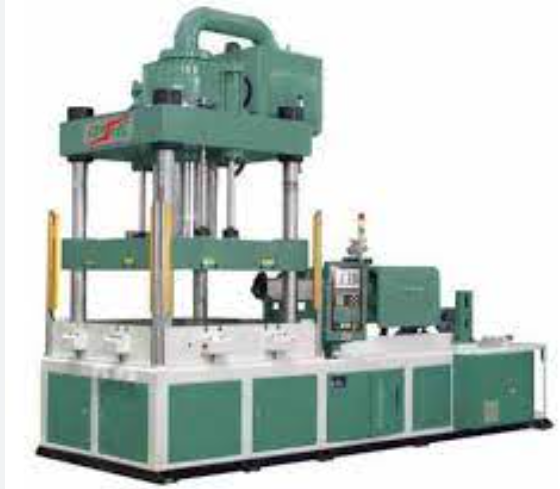

Angle injection molding machine
Definition
The angle injection molding machine for plastic toilet seat covers is a special type of injection molding machine, in which the axes of the injection device and the clamping device are arranged perpendicular to each other or at a certain angle.
Advantages
Angle injection molding machine is a special structure of injection machine, in which the axis of the injection device and the axis of the clamping device are arranged perpendicular to each other or at a certain angle (usually 90 °)This design combines the advantages of both vertical and horizontal injection machines, making it particularly suitable for producing products with the following characteristics:
- Asymmetric geometric shape: such as the irregular curved surface structure of a toilet seat cover.
- Side gate requirement: The injection direction should be parallel to the mold parting surface to avoid leaving traces of the main flow path on the appearance surface.
- Space limited scenario: The footprint is smaller than that of a horizontal machine, but larger than that of a vertical machine.
Disadvantages
Limitations and coping strategies:
- Insufficient locking accuracy: Traditional models are prone to vibration → Choose servo hydraulic or full motor models to improve stability.
- High mold cost: requires a dedicated right angle mold → uses a hot runner system to reduce runner waste.
- Size restriction: Suitable for small and medium-sized seat covers (single piece ≤ 500g) → Large seat covers require four cylinder direct lock models.
