Types of heaters in injection moulding machine:
- Heating ring
- Heating Belt
- Ceramic heater
- Coil heaters
In plastic injection molding, various types of heaters are used to heat the molds and other components of the molding machine.
These heaters play a critical role in maintaining the proper temperature of the mold and the plastic material.

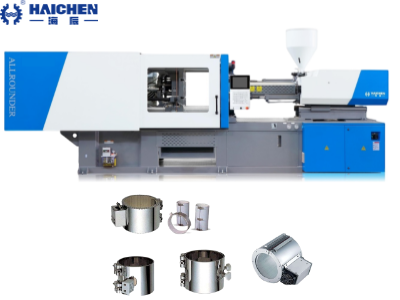

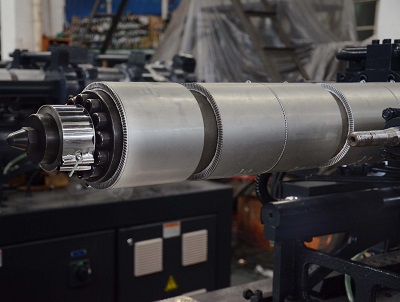

Injection Molding Machine Heater
The injection molding machine heater made of mica, stainless steel and heating wire is a hollow ring-shaped heating element.
Which can perfectly fit cylindrical applications, such as the pipe of an injection molding machine.
It is an indispensable heating element for the use of an injection molding machine.
The working temperature can be as high as 600 degrees, and it has the characteristics of high heat conversion rate and long serve life.
Types of heaters——Heating ring
Heating ring is a commonly used heating element in injection molding machines, usually consisting of resistance wires, ceramic insulation materials, and metal shells.
The heating coil generates heat through an electric current and enables efficient and precise temperature control.
This heating method is suitable for heating barrels and molds, with good temperature distribution and energy-saving effect.
Types of heaters——Heating Belt
As a critical component in industrial thermal management, heating belts serve as highly efficient elements for heating pipes or molds in injection molding machines.
Furthermore, to prevent local overheating or cold spots – common challenges in precision manufacturing.
These belts leverage excellent thermal conductivity, thus ensuring uniform heat distribution across surfaces.
The heating belt also has the characteristics of corrosion resistance, strong mechanical properties and long life.
Types of heaters——Mica Strip Heaters
Primarily, industry workers utilize mica band heaters on extrusion blow molding machines.
Furthermore, these heaters find extensive application for plastic injection molding machine barrels, blow-molding equipment, extruders, and tanks across diverse industrial sectors.
Consequently, engineers favor the barrel-shaped heater for its capacity to conduct uniform heat distribution across surfaces, thereby optimizing thermal transfer efficiency.
Mica band heaters can support up to 320°C(608°F).
Consisting of stainless steel housing surrounding mica sheet.
First, workers mount strip heaters, which are flat, rectangular-shaped heating elements, to the mold or other components of the injection molding machine.
Furthermore, manufacturers commonly use them for applications requiring uniform heating across larger surfaces, such as the platens.
Moreover, to insulate the internal windings, engineers utilize a specially selected grade and thickness of mica sheet, providing excellent thermal conductivity and dielectric strength.

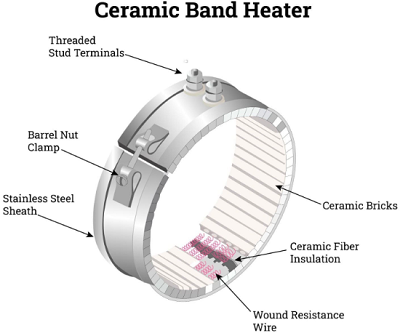

Types of heaters——Ceramic heater
Ceramic heaters are Mainly used for heating of injection molding machines, extruders and blow molding machines in the plastic industry.
The operating temperature can reach 600°C, and the maximum surface load is 8w/C.
This electric heater features fast heating speed and high heat utilization rate; additionally, it offers significant energy savings (30% lower consumption).
Moreover, with high-temperature creep resistance, long lifespan, excellent heat resistance, and superior insulation.
It currently serves as one of the most suitable solutions for machinery such as plastic extruders, film blowers, and chemical fiber equipment.
Ceramic heater has the characteristics of high temperature resistance and corrosion resistance, and is suitable for harsh working environments.
It is typically used where high temperature stability is required.
Types of heaters——Coil heaters
As compact and flexible heating elements, coil heaters are commonly used in hot runner systems.
Specifically, operators place them directly in runner channels or nozzle tips.
Moreover, these heaters can be shaped to match the mold’s contours, thereby delivering efficient and uniform heating to individual mold cavities.
Their role is to provide focused and efficient heating to maintain the desired temperature of the molten plastic.
Haichen Heater
The heater of injection molding machine is an indispensable part of the entire production process.
And its performance directly affects the quality and production efficiency of plastic products.
Therefore, the design, material and operating status of the heater are particularly important.
