Ejector pins are essential components in injection molding machines that push the finished plastic parts out of the mold cavity after the material has cooled and solidified. Their features include high precision to ensure consistent part ejection, durability to withstand repeated use, and versatility to accommodate various part sizes and shapes.
In injection molding machines, ejector pins are essential components for demoulding. They allow operators to apply force to the molded part after the plastic material cools and solidifies, pushing it out of the mold cavity.
Whether these ejector pins can work stably and reliably is directly related to the speed of the production line and the final plastic product qualification rate.
If the ejector pins operate smoothly and have a low failure rate, downtime can be reduced, production plans can be completed on time. And defective products caused by ejection problems can be reduced. Therefore, they are a key factor in ensuring the smooth progress of injection molding production.
What Are Ejector Pins?
Ejector pins are slender, rounded rods situated within injection molds. Their sole job being to nudge finished plastic components from the mold cavity once the material has cooled. Crafted from toughened steel alloys like SKD61 or SKH51, these pins are engineer to endure the extreme pressures. And elevated temperatures encountered throughout the molding cycle. When the molding machine separates the two halves of the tool, the pins are driven forward, exerting a calibrated push that separates the solidified part from the cavity without damaging either the part or the mold surface
The Critical Role of Ejector Pins in Injection Molding
Ejector pins play an indispensable role in the injection molding process. These slender parts made of hardened steel or alloy have the main task of smoothly ejecting the cooled and molded plastic parts from the mold at the end of the production cycle. Without them, the finished product is likely to be stuck in the mold cavity and cannot be removed, directly interrupting the production line.
Experienced engineers usually focus on several core features of ejector pins:
- Precision alignment ensures smooth ejection and avoids scratches or deformation of the finished product
- High temperature resistant materials can withstand molten plastic temperatures of more than 200°C during injection molding
- A variety of diameter specifications from 1mm to 10mm allow us to flexibly choose according to the thickness of the product

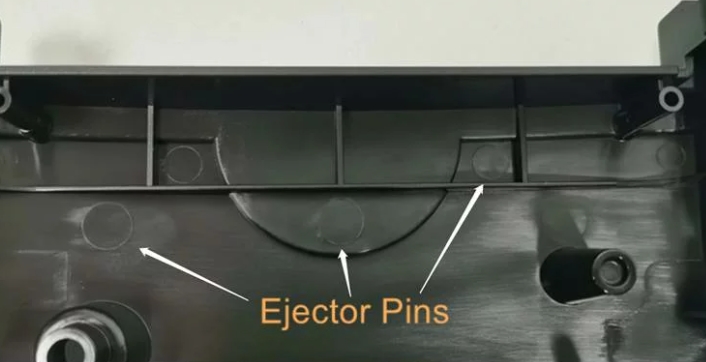

It is worth noting that the slight indentation left by the ejector pin on the surface of the finished product (commonly known as “ejector mark”) requires special treatment. We will minimize the impact of these marks on the appearance of the product by optimizing the ejector pin layout, adjusting the ejection force, and selecting larger diameter ejector pins.
Whether you are use to calling it ejector pin or ejectorpin, these inconspicuous small parts actually maintain the efficiency of the entire production line. A properly designed ejector system can not only protect the integrity of the finished product, but also reduce downtime for maintenance – after all, no one wants to see an ejector break and cause the entire batch of products to be scrapped.
Key Features of Ejector Pins
Precision machining
Ejectors are custom-made to exact mold dimensions to ensure a perfect fit. This precision reduces part defects and ensures reliable demolding every time.
Durable
Made of high-strength hardened steel, ejectors withstand the high pressure and wear of the injection molding process. Long-term use without frequent replacement saves costs and ensures production continuity.
Flexible adaptation
Length, diameter and surface treatment can be customize to meet your needs. And can be precisely matched to any mold structure or part shape.
Smooth demolding
The smooth surface of the ejector is not easy to stick or scratch the product when ejecting the part. Which directly guarantees the quality and appearance of the final product.
Importance of Ejector Pins
Ejector pins are essential for several reasons:
- Efficient Part Removal:They quickly and efficiently remove the molded part from the mold, reducing cycle times and boosting productivity.
- Quality Control: Properly functioning ejector pins help prevent defects such as flash, warping, or surface imperfections.
- Reliability: High – quality ejector pins contribute to the overall reliability of the injection molding process, reducing downtime and maintenance.
HAICHEN’s Ejector System Technologies
The ejection system of HAICHEN injection molding machines is carefully design to ensure stable and reliable demolding tasks.
- The system provides an ejection force of up to 90 kN. And the HCK310 model can easily cope with the production needs of thick-walled workpieces.
- The ejection stroke can be adjusted to a maximum of 170 mm, which is flexible for products of different heights.
- The servo hydraulic system achieves multi-level control, and the operator can accurately set the ejection speed and pressure. So that even delicate parts can be demolded smoothly.
- Whether you use cylindrical pins, sheet pins or sleeve pins. Or ejectors made of various materials such as SKH51 and nitrided steel, the system is fully compatible.
Understanding the role and characteristics of ejectors is critical to optimizing the injection molding process. By choosing the right ejector model and quality, manufacturers can remove parts more smoothly. Ensure the product appearance is intact, and keep the production line running stably.
