Plastic pallet injection molding machine need to use 2000T to 3000T machine.
Because of the large size of the plastic pallet product thickness is high, grams of weight is also large, will inevitably make the mold size, injection weight and pressure needs are far greater than the average product, so the conventional case we need to use 2000-3000t of large-scale machinery.

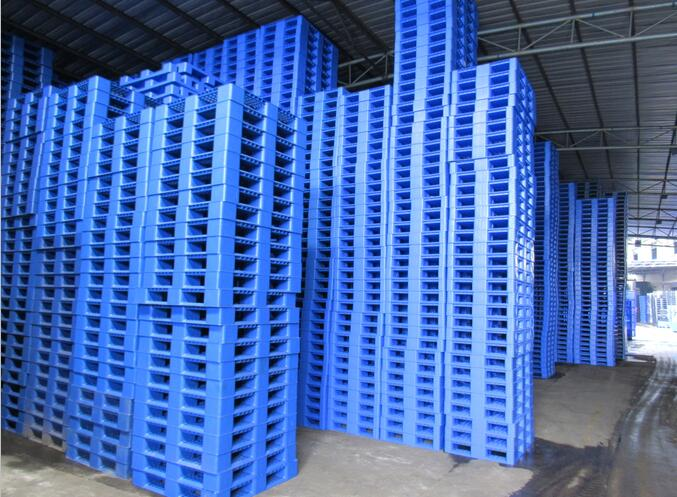

Plastic pallets can be used for storing, loading and handling goods, and are one of the essential logistic equipments in modern logistics and warehousing.

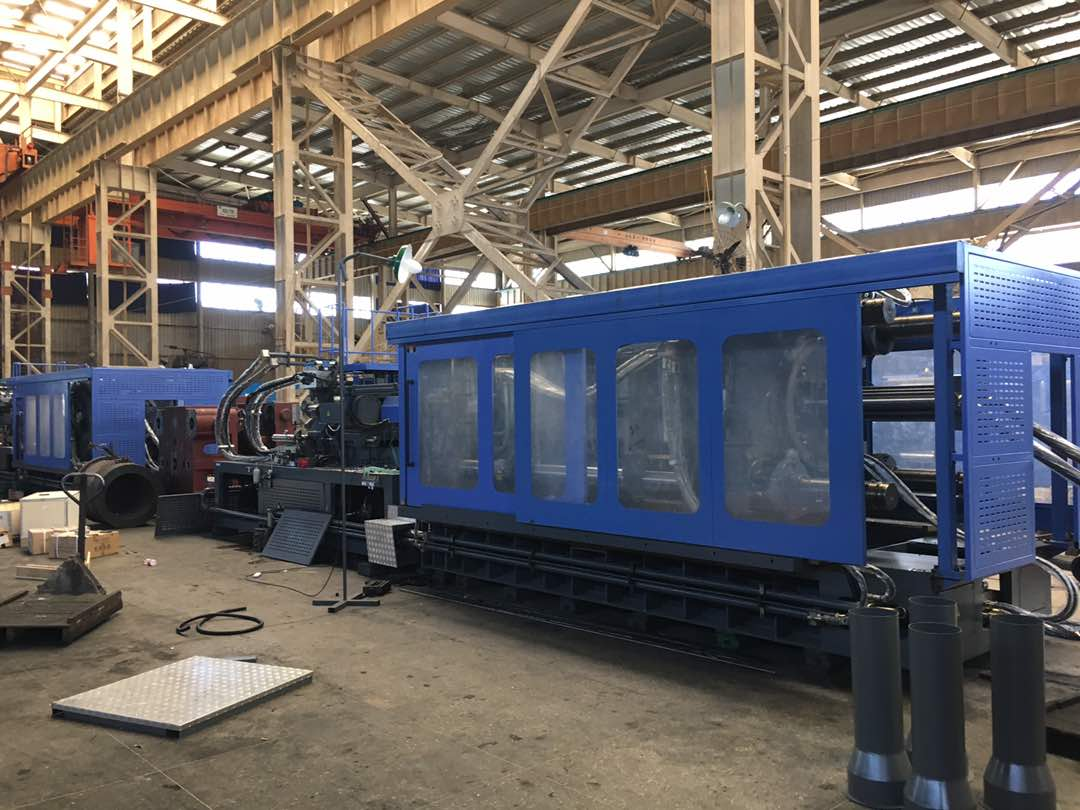

Plastic pallet injection molding machine:
Injection molding is one of the most common processes for shaping plastic into the desired tray shape and size. It is suitable for large-scale production, especially when plastic pallets of the same design need to be molded multiple times.
In general, the injection molding process consists of the following key processes:
The raw material enters the machine through a hopper (depending on the type of plastic pallet, PP or HDPE materials can be used). Heating bands and friction melt the plastic material. The thermoplastic (liquid) exits the heating chamber through a nozzle and enters the cavity, cools and hardens.
How to choose different size pallet injection molding machine:
At present, the market above the more conventional is 1.1 meters * 1.1 meters and 1.2 meters * 1 meter of these two. Nine-foot plane plastic pallet has 1m * 0.8m, 1m * 1m, 1.2m * 0.8m, 1.2m * 1m these sizes.
The element of choosing the injection molding machine used for plastic pallets is to look at the tie bar spacing. Tie bar spacing is an important factor in determining whether or not a pallet will fit in the machine. 2000t for products around 1m. 2500t for single layer products around 1.2m. 3,000t for 1.2m double-layer products.
Haichen have rich expensive in producing plastic pallet. And we can give you a professional and complete plastic pallet line, including machine options, custom moulds and auxiliary machine options. Welcome to consult us.
