The main technologies of high-speed injection molding machines include precise temperature control, precise pressure control, high-speed screw injection molding system and high-response hydraulic system. The application of these technologies enables high-speed injection molding machines to complete the injection molding cycle in a short time, improve production efficiency, and ensure the dimensional accuracy and surface quality of the product. This has a great advantage in the production of large quantities of high-precision plastic thin-wall packaging products and small parts.
A high-speed injection molding machine is a type of injection molding equipment specifically designed for the rapid production of plastic products. It utilizes advanced injection molding technology and efficient working methods, resulting in rapid injection speeds and short cycle times.A high-speed injection molding machine can complete the injection molding process in a shorter time, thereby improving production efficiency and reducing production costs.
High-speed injection molding machines are engineered for rapid production cycles, precision, and efficiency, particularly for industries requiring thin-walled or high-volume parts. Below are the defining characteristics and applications that make these machines unique:
- Ultra-Fast Injection Speed and Cycle Times
- Advanced Hydraulic and Drive Systems
- Precision Components for Enhanced Performance
- Specialized Applications
- Smart Control and Monitoring
- Energy Efficiency and Sustainabilit
Ultra-Fast Injection Speed and Cycle Times
- Injection Rate: These machines achieve injection speeds up to 1,000 mm/s 1, enabling rapid cavity filling for thin-walled products (e.g., disposable containers, mobile phone cases) 610.
- Cycle Times: Reduced to 10–30 seconds through advanced hydraulic systems, accumulators, and servo-driven components 13.
Advanced Hydraulic and Drive Systems
- Accumulator Technology: Stores hydraulic energy for instantaneous high-pressure injection, critical for multi-cavity molds and thin-wall applications .
- Servo-Hydraulic or Electric Drives: Energy-efficient systems like Baumüller’s servo-hydraulic drives reduce energy consumption by up to 60% while maintaining precision .
Precision Components for Enhanced Performance

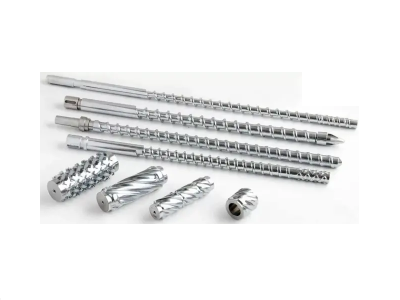

- High L/D Ratio Screws: Optimized for efficient plasticization at lower temperatures, improving material flow and reducing cycle times .
- Hot Runner Systems: Valve gate nozzles (e.g., MCN-P by Otto Männer) ensure uniform melt flow and eliminate cold slugs, critical for maintaining short cycle times .
Specialized Applications
- Thin-Wall Packaging: Machines like Haichen HCK-H series are tailored for producing items such as ice cream containers, cutlery, and mobile phone covers with wall thicknesses as low as 0.2 mm .
- High-Temperature Resins: Compatible with engineering plastics like SUMIKASUPER LCP, which require molding temperatures up to 420°C and rapid injection to prevent premature solidification .
Smart Control and Monitoring
- PLC Controllers: Enable real-time adjustments for injection pressure, speed, and temperature, ensuring consistent part quality .
- Sensor Feedback Systems: Automatically compensate for pressure loss and monitor resin temperature, crucial for high-speed processes .
Energy Efficiency and Sustainability
- Regrinding Systems: Recycle sprues and runners to minimize material waste .
- Regenerative Hydraulics: Recover energy during deceleration phases, reducing overall power consumption .
Comparison with Standard Machines
| Feature | High-Speed Machines | Standard Machines |
|---|---|---|
| Injection Speed | Up to 1,000 mm/s 1 | 100–300 mm/s |
| Cycle Time | 10–30 seconds 1 | 30–60 seconds |
| Energy Efficiency | 40–60% savings 15 | Higher energy consumption |
| Applications | Thin-wall, multi-cavity, high-temperature | General-purpose parts |
Leading Manufacturers and Models
- Ningbo Haichen: High-speed precision machines with nitrogen-assisted injection .
- HRQ Accumulator Series: Twin-injection structure for enhanced pressure and speed .
- Baumüller’s Electric Drives: Intelligent servo systems for hybrid and fully electric machines 1.
What is the difference between injection speed and injection pressure?
Injection speed and injection pressure are two key but different parameters in the injection molding process.
Their differences and interrelationships can be summarized as follows:
- Definition and physical meaning
- Mutual influence mechanism
- Differences in application scenarios
Definition and physical meaning
Injection speed:
Refers to the rate at which the molten material is injected into the mold per unit time, usually expressed as volume flow rate (such as cc/s) or screw movement speed (such as mm/s).
It directly affects the flow behavior and filling time of the melt.
Injection pressure:
Refers to the force required to push the melt into the mold, usually measured in pressure units (such as MPa, psi, bar).
Its function is to overcome the resistance to melt flow (such as viscosity, friction, mold structure resistance, etc.).
Mutual influence mechanism
The effect of injection speed on pressure
Low-speed injection:
The melt flows for a long time and loses more heat, resulting in increased melt viscosity, thickened solidified layer, and increased flow resistance, so a higher injection pressure is required.
For example, it is pointed out that when the speed is too low, the injection pressure will increase significantly due to the cooling effect.
High-speed injection:
The melt flow friction increases (especially the shear force between the solidified layer and the flow layer), and may cause jet flow or surface defects, which also requires higher pressure.
However, high-speed injection can reduce filling time and improve surface quality (such as reducing weld marks).
Optimum speed:
There is a “U-curve” relationship, that is, too high or too low injection speed will lead to pressure increase, and the injection pressure is the lowest at a certain speed in the middle.
For example, it is mentioned that the lowest pressure point is neither at the fastest nor the slowest speed.
Pressure constraint on speed
The injection pressure setting value limits the actual speed.
If the actual pressure exceeds the set value, the injection speed will automatically decrease to maintain the system power balance, resulting in longer filling time.
Insufficient pressure will cause the screw to fail to maintain the set speed.
Differences in application scenarios
Medical field (such as intervertebral disc angiography):
The injection speed directly affects the difference between dynamic pressure (PSP) and static pressure (IDP).
Low-speed injection (such as 0.005 cc/s) can significantly reduce the pressure difference, thereby more accurately measuring tissue resistance.
For example, when the speed drops from 0.1 cc/s to 0.005 cc/s, the average pressure difference drops from 38.1 psi to 0.7 psi.
Plastic molding field:
Thin-walled products: high-speed injection is required to reduce melt cooling, and high pressure is required to overcome flow resistance.
High-viscosity materials (such as PC, PMMA): sensitive to speed, speed needs to be adjusted to balance heat generation and dissipation.
Multi-stage injection: switching speed and pressure at different stages to optimize filling (such as high-speed filling at the beginning and low-speed pressure holding at the end).

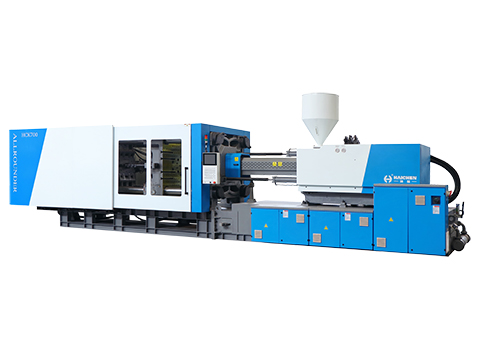

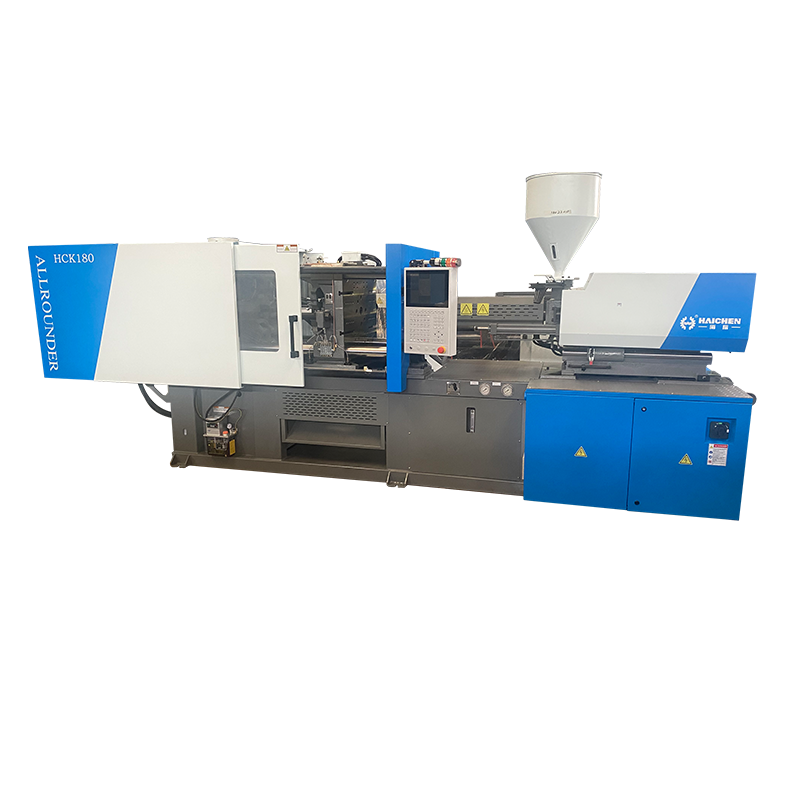

Haichen high speed injection molding machine
Ideal for Thin-Wall Product Manufacturing
Haichen offers a full range of high-speed injection molding machines specifically designed for the efficient production of thin-wall products. Known for their exceptional performance, high precision, and reliability, these machines are widely used in industries such as packaging, electronics, and medical devices. Below is a detailed overview of the key features, technological advantages, and application areas of Haichen’s high-speed injection molding machines.
- Core Features of High-Speed Injection Molding Machines
- Technological Advantages
- Application Areas and Products
- Haichen High-Speed Injection Molding Machine Series
- Customer Cases and Success Stories
Core Features of High-Speed Injection Molding Machines
- Ultra-High Injection Speed and Short Cycle Times
- Injection Speed: Haichen’s machines achieve injection speeds of up to 1,000 mm/s, ensuring rapid mold filling for thin-wall products such as food containers and mobile phone cases .
- Cycle Time: Optimized hydraulic systems and servo-driven technology reduce cycle times to 10–30 seconds, significantly improving production efficiency .
- High Precision and Stability
- Precision Control: Equipped with advanced KEBA controllers, the machines enable real-time adjustments of injection pressure, speed, and temperature, ensuring consistent product quality .
- Sensor Feedback Systems: Automatic pressure loss compensation and resin temperature monitoring prevent defects .
- Energy Efficiency and Environmental Friendliness
- Servo-Hydraulic Systems: Energy consumption is reduced by 40–60% compared to traditional machines while maintaining high performance .
- Regenerative Energy Recovery: Energy is recovered during deceleration phases, further lowering operational costs .
Technological Advantages
- Nitrogen-Assisted Injection
- Nitrogen-assisted technology enables higher injection pressure and speed, making it ideal for thin-wall product production .
- Hot Runner Systems
- Valve-gated hot runner nozzles (e.g., MCN-P) ensure uniform melt flow, eliminate cold slugs, and shorten cycle times .

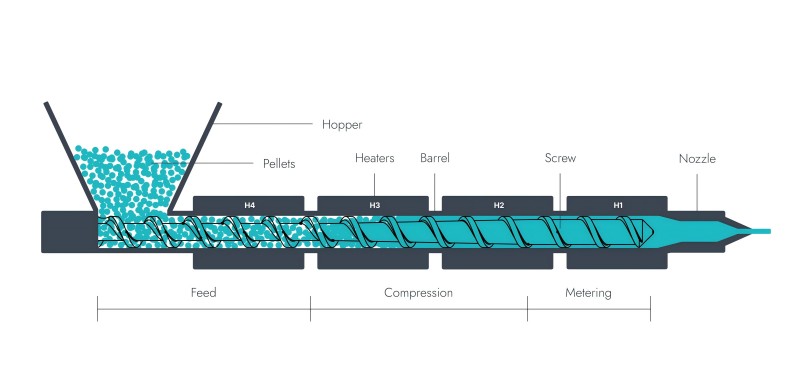

- High L/D Ratio Screws
- Optimized screw design improves plasticizing efficiency, reduces material temperature, and enhances flow performance .
Application Areas and Products
- Packaging Industry
- Thin-Wall Containers: Such as ice cream tubs and disposable cutlery, with wall thicknesses as low as 0.2 mm .
- Bottle Caps and Seals: High-precision production ensures sealing performance .
- Electronics Industry
- Mobile Phone Cases and Connectors: High-speed production meets mass production demands .
- Heat Sinks and Insulating Components: Suitable for high-temperature engineering plastics like LCP .
- Medical Industry
- Disposable Medical Devices: High-cleanliness production compliant with medical standards .
- Pharmaceutical Packaging: Precision molding ensures product consistency .
Haichen High-Speed Injection Molding Machine Series
| Model | Features | Application Areas |
|---|---|---|
| HC-T Series | Ultra-high-speed injection, nitrogen-assisted, energy-efficient design | Thin-wall packaging, electronic components |
| HC-E Series | Fully electric drive, high-precision control, low energy consumption | Medical devices, precision parts |
| HC-H Series | Hybrid drive, high-performance hydraulic system, versatile applications | Automotive parts, industrial components |
Customer Cases and Success Stories
- A Leading Food Packaging Company: Using Haichen’s HC-T series, production efficiency increased by 30%, and product yield reached 99.5% .
- An Electronics Manufacturer: Utilizing the HC-E series for mobile phone cases, cycle times were reduced to 15 seconds, and annual output increased by 20% .
Haichen’s high-speed injection molding machines, with their ultra-high injection speeds, precision control, and energy-efficient design, are the ideal choice for thin-wall product manufacturing. Whether in packaging, electronics, or medical industries, Haichen’s machines deliver high efficiency and quality. For more information or customized solutions, contact Haichen or visit their official website.
Leave a message to contact us, Haichen is ready to provide you with more technical details of thin-wall high-speed injection molding machine.
By the end
High-speed injection molding machines excel in industries demanding rapid production of complex, thin-walled parts. Their specialized components—such as accumulators, high L/D screws, and smart control systems—enable unmatched speed, precision, and energy efficiency. For projects requiring ultra-thin walls or high-temperature resins, these machines are indispensable.
