4 Types of heating bands for injection molding machine are Ceramic Band Heaters, Mica Band Heaters, Cast aluminum heating bands, and Nano infrared heating bands.
The heating band plays a crucial role in injection moulding machines. It is an electric heating device, and its stability and safety make it an indispensable component of injection moulding machines. It is mainly used to heat the barrel and mould of injection moulding machines and transfer heat to steel through resistance heating to meet the needs of industrial production.
Injection molding machine heating bands utilize resistance heating, using either an electric heating alloy wire or a fuse as the heating element. This design makes the heating belt safer and more stable, avoiding the potential heat loss and safety hazards that can arise from direct contact with the material. When current passes through these elements, heat is generated to achieve the desired heating effect.

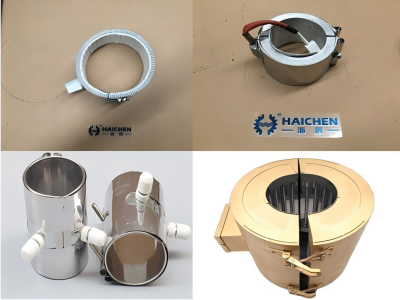

Comparison table of four types of heating bands
The main types of heating tapes for injection molding machines include the following:
- Ceramic Band Heaters
- Mica Band Heaters
- Cast aluminum heating band
- Nano infrared heating band
| Type | Photo | Advantage | Application |
| Ceramic Band Heaters |  | the characteristics of high-temperature resistance and corrosion resistance, and are suitable for harsh working environments. | Mainly used for heating the barrel to ensure that the plastic raw materials can be evenly melted and smoothly injected into the mold |

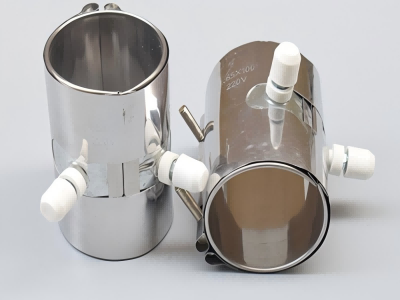

| Mica Band Heaters |  | advantages of low price and easy installation. | Widely used in barrel heating of injection molding machines |
| Cast aluminum heating band |  | the advantages of uniform heating and fast heat dissipation, and is suitable for use in some medium and large injection molding machines. | Mainly used for heating parts of plastic machinery, such as heating of barrel and screw |
| Nano infrared heating band |  | The heat conduction method adopts infrared radiation conduction, which reduces heat loss and has a significant energy-saving effect. | Mainly reflected in its high efficiency, energy saving, and rapid heating characteristics |
Ceramic band heater of 4 Types of heating bands for machine
Ceramic band heaters are widely used in industrial equipment such as plastics processing machinery.
Injection molding machines, blow molding machines, extrusion lines, etc., especially where precise temperature control and fast response are required.
They are also commonly used in automotive manufacturing and the chemical industry.
A ceramic band heater is one of 4 types of electric heating bonds used to heat cylindrical surfaces with a variety of advantages and applications.
- Features and advantages
- High thermal efficiency
- Energy saving
- Flexibility
- High-temperature resistance
- No physical contact required
High thermal efficiency of type heating bond
The ceramic band heater can heat up quickly and has a high thermal efficiency, which makes it suitable for application scenarios that require fast heating.
Energy saving
Thanks to its low thermal conductivity ceramic fiber insulation, the ceramic band heater can achieve efficient internal heating at lower external temperatures, thus saving energy.
Flexibility
Ceramic band heaters are designed to be flexible and can be adapted to different installation needs, and the installation process is easy.
High-temperature resistance of 4 types heating bonds
Ceramic band heaters are capable of operating at temperatures up to 1200°F (approximately 648.9°C), making them suitable for high-temperature applications.
No Physical Contact Required
Since transferring through infrared radiation, no direct contact with the object being heated is required, which allows them to work effectively even when surfaces are uneven or have gaps.
A ceramic band heater usually consists of a helically wound-resistant coil and a ceramic insulating brick.
The nickel-chromium alloy used for the resistance coil is a material with a high electrical resistivity that effectively converts electrical energy into heat.
Ceramic band heaters work using resistance heating, i.e., an electric current is passing through a resistance coil to generate heat,.
Which is then transferred to the surroundings through the ceramic insulating bricks.
Compared to mica band heaters, ceramic band heaters offer higher operating temperatures and better thermal stability but are also relatively costly.
However, ceramic band heaters are still the preferred choice for many high-temperature applications due to their excellent high-temperature resistance and energy-saving properties.
Characteristics of Cast aluminum heating band for Haichen injection molding machines
- Structure and materials of 4 types of heating bonds
- Working temperature and power density
- Thermal conductivity of 4 types of heating bonds
- Insulation and safety performance
- Energy saving and environmental protection
Structure and materials of 4 types of heating bonds
Cast aluminum heating coils are usually made of tubular electric heating elements as heating elements, and are made of high-quality metal alloy materials such as aluminum alloy or copper alloy. This structure ensures heating uniformity and long life.
Working temperature and power density
The working temperature of the cast aluminum heating band is generally between 150℃ and 450℃, and some models can reach 600℃.
The power density is relatively high, usually around 3.5W/cm² or even higher.
Thermal conductivity of 4 types of heating bonds
The cast aluminum heating coil has good thermal conductivity and can quickly transfer heat to the heated object, thereby improving heating efficiency.
Insulation and safety performance
The cast aluminum heating coil has good insulation performance and magnetic field resistance, is suitable for high-voltage environments.
And takes into account the need for explosion-proof and corrosion-proof in the design.
Energy saving and environmental protection
The cast aluminum heating coil saves electricity by adding insulation devices and sintering infrared rays on the internal heat dissipation surface and has high thermal efficiency and low energy consumption.
Advantages of Nano infrared heating bands of 4 types of heating bonds
- Energy saving and high efficiency
- Rapid heating
- Low surface temperature
- High thermal conductivity efficiency
- Easy installation
- Long service life
- Environmental protection and safety
The nano infrared electric heating ring in injection molding machines not only improves heating efficiency and energy saving effect but also improves the working environment.
It is an advanced electric heating energy-saving equipment for injection molding machines.
Energy saving and high efficiency
The nano-infrared electric heating coil has an electric-thermal conversion efficiency of up to 99.8%, can usually save 30%-80% of electricity consumption.
Rapid heating
The nano-infrared electric heating coil can raise the temperature to 750℃ or higher in a short time and can work stably within 550℃ for a long time.
Low surface temperature
Due to the use of efficient thermal insulation materials and reflective coatings.
The surface temperature of the nano-infrared electric heating coil improves the workshop environment temperature and reduces air conditioning energy consumption.
High thermal conductivity efficiency of 4 types of heating bonds
The nano-infrared electric heating coil directly heats the barrel through far-infrared radiation, reducing heat energy loss and improving heat energy utilization.
Easy installation
The nano-infrared electric heating coil can directly replace the traditional electric heating coil.
The installation process is simple, and it has good compatibility with the original equipment.
Long service life
The high-quality materials made for the nano-infrared electric heating coil ensure its long-term and stable operation and its service life is usually more than 5 years.
Environmental protection and safety
Nano infrared electric heater is a safe and environmentally friendly heating device.
4 Types of heating bands for Haichen injection molding machine
Haichen machinery widely used 4 Types of heating bands according to the client’s request. Different types of heating bonds have different advantages, and all of them will be suitable.
Haichen injection moulding machine has a wide range of application prospects, and can effectively improve production efficiency and product quality.
4 Types of heating bands for injection molding machine have their own characteristics and applicable scope. Choosing the right type of heating coil can improve the production efficiency and energy-saving effect of the injection molding machine.
