There are several main types of aluminium pot manufacturing machines, including die casting machines, cold chamber die casting machines, hot rolling mills and cold rolling mills. These machines are capable of producing aluminium pots of different shapes and uses, depending on the process. For example, cold chamber die casting machines (such as those supplied by Haichen) are capable of injecting liquid aluminium into a mould at high pressure to form complex aluminium pot structures, which are suitable for products requiring high strength and durability.
The manufacturing of aluminium pots usually involves several steps, including raw material preparation, melting and die casting, mould customisation, trimming and forming, heat treatment and surface treatment. For example, in Haichen’s aluminium pot manufacturing process, it is necessary to first select the right aluminium alloy material, then melt the ingot through a smelting furnace, and then inject liquid aluminium into the mould through a high-pressure die-casting machine to form the desired aluminium pot structure.
The aluminum pot and pan making machine is a die casting machine used for producing aluminum pots and pans.

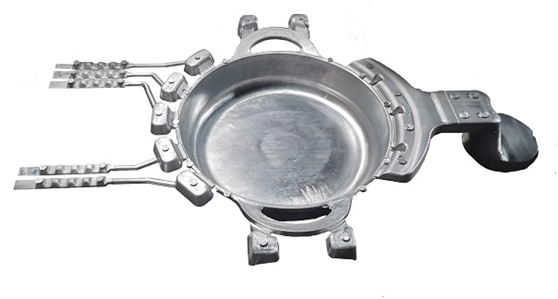

Aluminum pot and pan die-casting
Aluminum pot and pan die-casting parts are castings that inject liquid metal into the mold under pressure and form a more compact physical structure through cooling and hardening.
Kitchenware and cooker die-casting parts can be divided into various forms, such as fly pans, handles, soup pots, spare parts for electrical devices used in the kitchen, and other cookware.
Different parts require different materials and processes, and commonly used die-casting materials include aluminum alloy, zinc alloy, copper alloy, etc. Each material has advantages and disadvantages and needs to be selected based on the usage environment and requirements.
Die casting process creates cookware that is stronger and denser than other ones.
Because it will need higher pressure to cast those parts. And the life of kitchen parts die-casting will be longer than regular ones. An aluminum pot and pan making machine can be used for it.
How exactly does the complete Aluminum Cooking Pot Casting production process work?
The following 10 steps are required.
- Raw Material Preparation:
- Melting and Die Casting with Aluminum pot and pan die casting machine
- Customized Aluminum Casting Pot Mold:
- Trimming and shaping:
- Heat treatment and annealing:
- Surface treatment and Teflon coating
- Installation of accessories
- Quality control and inspection:
- Packaging and distribution:
- Compliance and certification:
The die cast aluminum cookware production involves multiple steps and processes, from melting and die-casting to surface treatment and assembly.
It requires not only strict process control but also attention to environmental protection and product quality improvement.
Through these steps, high-quality, durable, and beautiful aluminum die-cast cookware can be produced.
Also the thick walls and heavy base make it resistant to warping, denting, and scratching. Unlike some other types of cookware, die-cast pans are less prone to damage from accidental drops or impacts.
Haichen is an aluminum cold chamber die-casting machine manufacturer with rich experience in producing cast aluminum cookware machines.

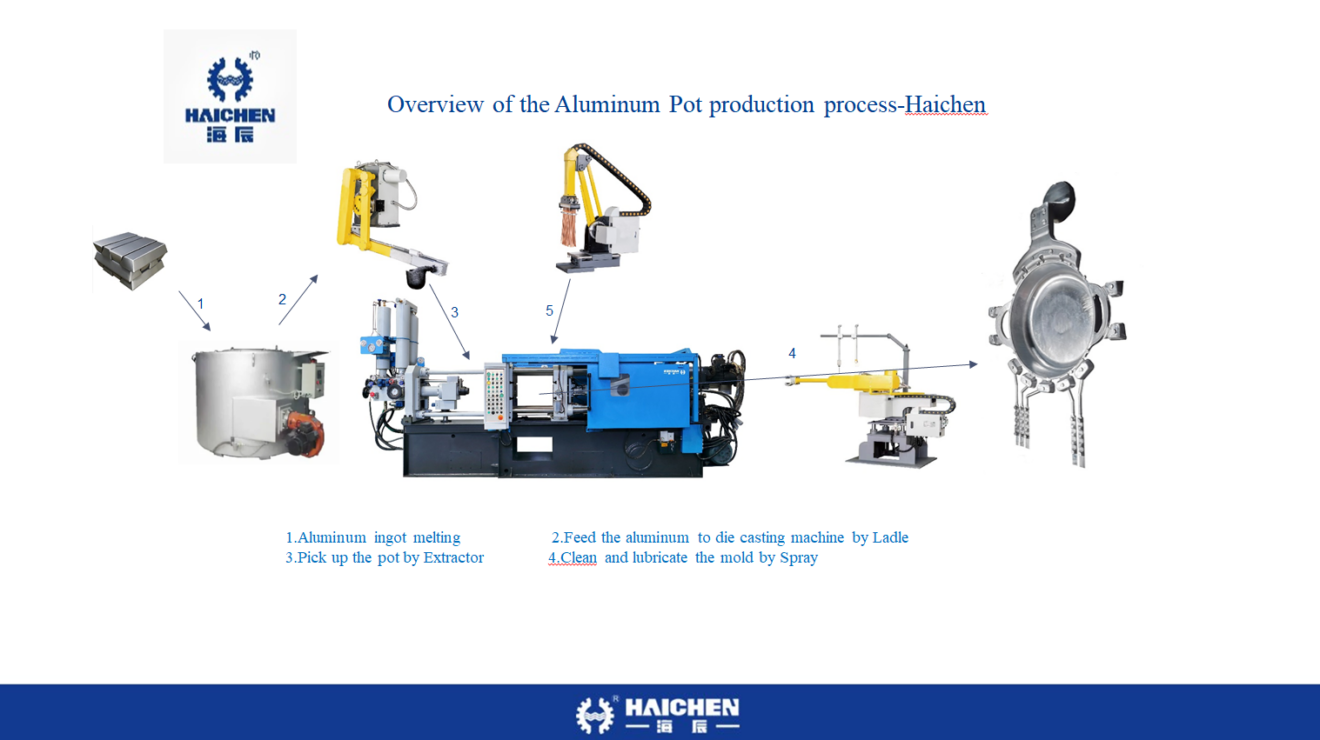

A complete Aluminum pot production line usually includes key steps such as drawing design, determining raw materials, custom molds, die-casting machine ejection, molding, and packaging. Ensure efficient and high-quality production of various aluminum pots for cooking.
The manufacturing process of an aluminum cooking pot involves several steps to transform raw aluminum into high-quality cookware.
The following is a comprehensive overview of the key stages involved:
Raw Material Preparation:
Choose a type of aluminum alloy block with uniform density, good thermal conductivity, good cold-setting properties, and strong hardness at room temperature to produce aluminum pots for cooking.
Alumina is further refined through electrolysis, which separates aluminum from oxygen atoms.
It is dissolved in a molten salt bath and an electric current is passed through the solution, causing the aluminum ions to migrate to the cathode, where they collect and form pure aluminum casting ingots.
Melting and Die Casting with Aluminum pot diecasting machine
Aluminum cooking pots can be designed using CAD software or by hand. The most important thing is to determine the size, weight, and output of the aluminum pot.
Customized Aluminum Casting Pot Mold:
The mold is made according to the design drawing of the aluminum casting pot.
The mold consists of two parts called the cavity and the core, which fit together to form the desired shape.
Aluminum alloy cookware is die-casted by a cold chamber die casting machine.
The aluminum ingot is melted into liquid by a melting furnace and filled with die casting machine pressure chamber.
It is pressed into the aluminum casting mold under high speed and high pressure. After cooling, it is formed into cast aluminum pot products.
Trimming and shaping:
Use a hydraulic trimming machine to cut the external flow channel and packing of cast aluminum cookware products, and use a polishing machine to polish to prevent the periphery of aluminum alloy pot metal.
Heat treatment and annealing:
To improve mechanical properties and reduce the internal stress of the aluminum cooking pot, the pot is heat treated.
This involves heating the pot to a specific temperature range and then slowly cooling it to achieve the required hardness, ductility, and strength.
Surface treatment and Teflon coating
The pot must go through a series of polishing and finishing steps to remove any surface defects and obtain a smooth, non-stick surface.
That usually involves grinding, polishing, and anodizing to form a thin oxide layer, and then adding a special Teflon coating to make it durable and non-stick.
Installation of accessories
According to the purpose of different aluminum cast pot products, different handles, lids, and corresponding connectors are configured and connected before leaving the factory.
Quality control and inspection:
Carefully check that each piece of aluminum cast pot undergoes strict quality control to ensure that it meets the specified standards for size, surface finish, and overall quality.
Inspectors check for any defects, flaws, or irregularities, and any unqualified items will be reworked or scrapped.
Packaging and distribution:
Finished cast aluminum cookware is carefully packaged to prevent damage during transportation and storage.
Packaging usually includes protective foam padding, cardboard boxes, and labels that identify the product and its specifications.
It is then placed on large pallets and shipped to the warehouses or markets of sellers and distributors.
Compliance and certification:
Cast aluminum cookware manufacturers comply with strict safety standards and regulations to ensure that their products are safe for consumers.
This includes testing for lead and other hazardous substances, the stability of Teflon coatings, marking the correct use and cleaning instructions, and obtaining certification from relevant safety agencies.
Aluminum pots use a cold chamber die casting machine for die casting production, using melting furnaces to melt the aluminum ingot into liquid, cooled down after the cast aluminum pots and pans products.
The cookware production machine line uses high technology to produce a set of all the machines needed for the production and coating of cookware. One of the most important parts is our production line can be customized according to the customer’s needs.
Our metal die casting molds can be changed to produce different cookware. We develop machines that can be applied to different cookware designs.
Advantages of Haichen Aluminum pot and pan making machine
Haichen has all kinds of cold chamber die casting machines of various tonnages, and we have carried out fine research and development in each core component.
The following is a detailed description of each component of the cold chamber die casting machine.
- Full computer control system
- Siemens PLC
- Language: Chinese, English, Russian, Spanish, Arabic, etc.
- Ultra quiet hydraulic circuit
- Stable high-speed, high-pressure compression injection for high-precision and high-density forming of aluminum alloy products.
- Real-time injection process curve display
- Enlarged mould clamping stroke to meet the requirement of a larger stroke.
- 3 levels of injection speed, 3 levels of holding pressure, and 4 levels of metering stages can be set according to product requirements.
- Optimized platen design with cast elbow joints together with the platen improves the rigidity of the mechanical system and hence the dimensional accuracy of the product.
All hydraulic components and seals are from internationally renowned manufacturers.
A machine for producing aluminum pots is a kind of equipment and tool used to shape the liquid aluminum metal into the shape of aluminum pots under high pressure.
This cookware production machine is suitable for the mass production of aluminum pots and can make the surface of aluminum pots smoother.
Successful cases of Aluminum pot and pan die casting machine
Aluminum pans, because the surface has to be coated with a layer of heat-resistant Teflon, therefore, the surface requirements are strict.
The surface texture has to be very tight.
Therefore, the pressure requirement of pressure injection will be increased accordingly.
A normal flat bottom Aluminum frying pan with a diameter of 20-28cm requires a 580-ton machine.
For 30-35cm size Aluminum pots, a 680-ton machine is required.
General saucepan: Because the bottom is deeper than the frying pan, the process of aluminum liquid is longer. The machine has to be bigger.
Diameter 26cmx14, need 680 tonnesmachine.280*70 also use 680-ton cold chamber die casting machine.
Pot baking temperature 380℃. If you need a higher baking temperature, the mould price is not the same. It will be more expensive.
Die casting mould is designed according to the best scheme: mould passes mould temperature oil. Dividing cone using cooling water cooling.
You can also not use the mould temperature machine, only cooling water.
The bottom of the stainless steel sheet: aluminum pot bottom molding is with a pre-drilled hole, molding, and then go to the hydraulic press on the bottom of the stainless steel sheet pressed into.
The stainless steel bottom piece has special requirements: thermal conductivity + magnetic conductivity; the hydraulic press has a special, 1300 ton or so.
Haichen Pan Making Machine Main Features Suitable for Aluminum Products.
Adopting imported famous and excellent products, equipped with hydraulic components, electrical components, and sealing components.

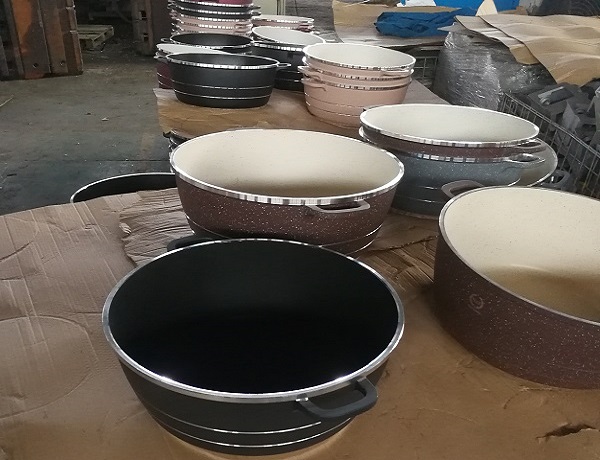

Haichen Aluminum pot machine cases
Haichen is an Aluminum pot die-casting machine manufacturer, supplying production lines to many international Aluminum pots and pans manufacturers of aluminum alloy products.
We have very rich experience in the field of metal die-casting molding. Our Aluminum pot cold chamber die casting machine has a wide range of applications, Stable operation, and environmental protection, and high production efficiency.
With more than 20 years of Aluminum pot die-casting machine experience in this field, we have well-trained workers, experienced engineers, and a service team for manufacturing molding machines. We are committed to providing quality service to every customer around the world.
