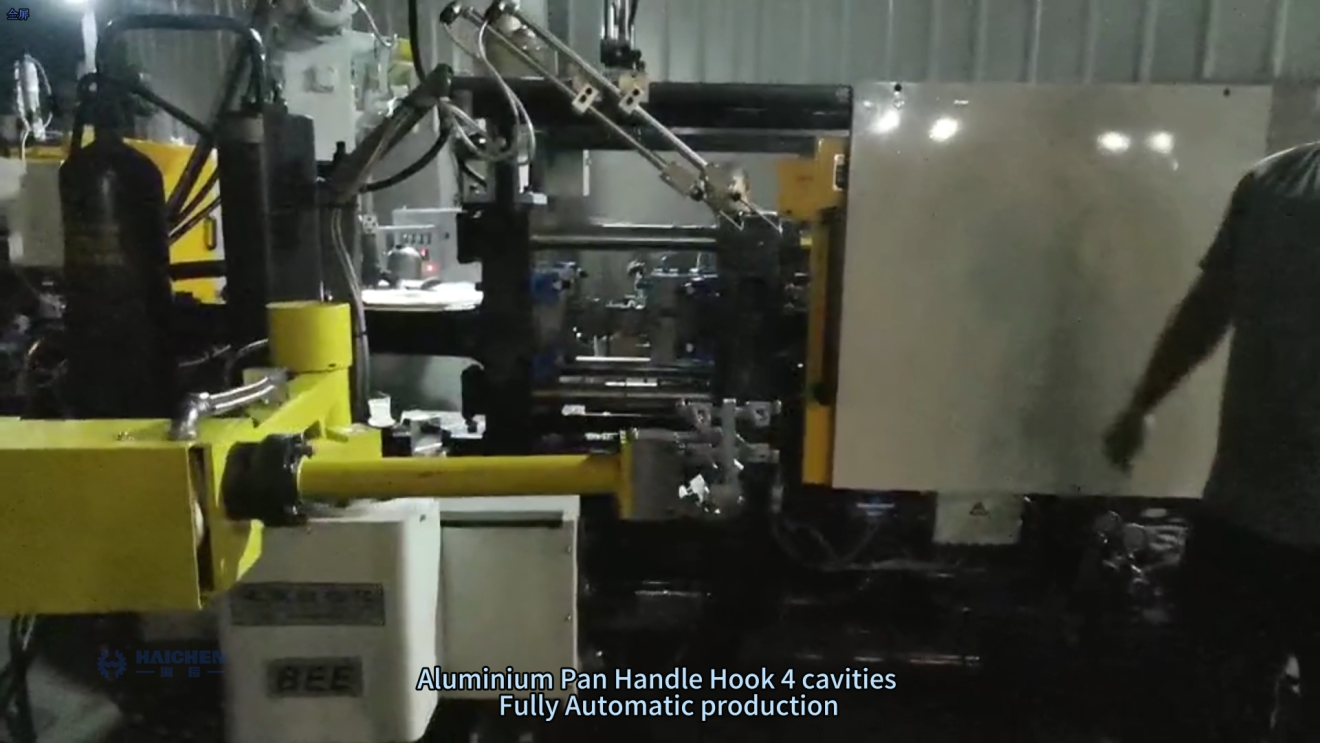

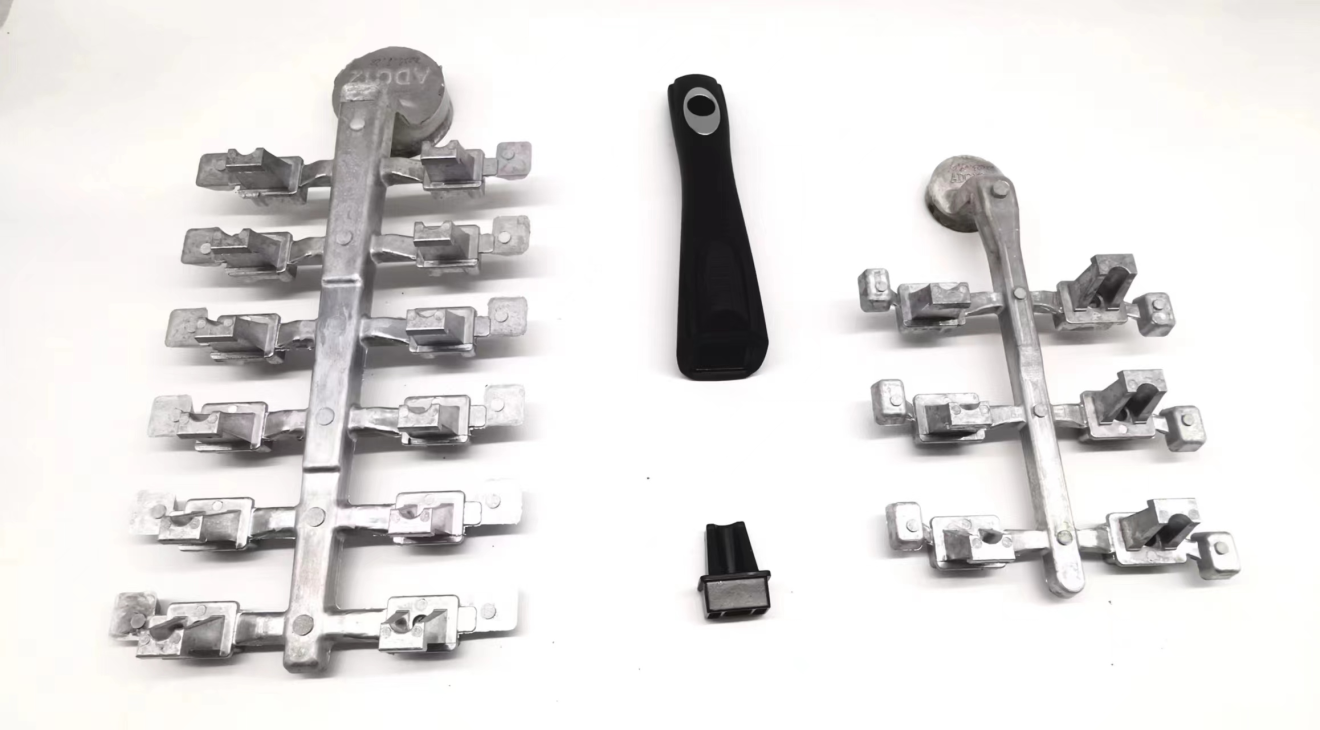

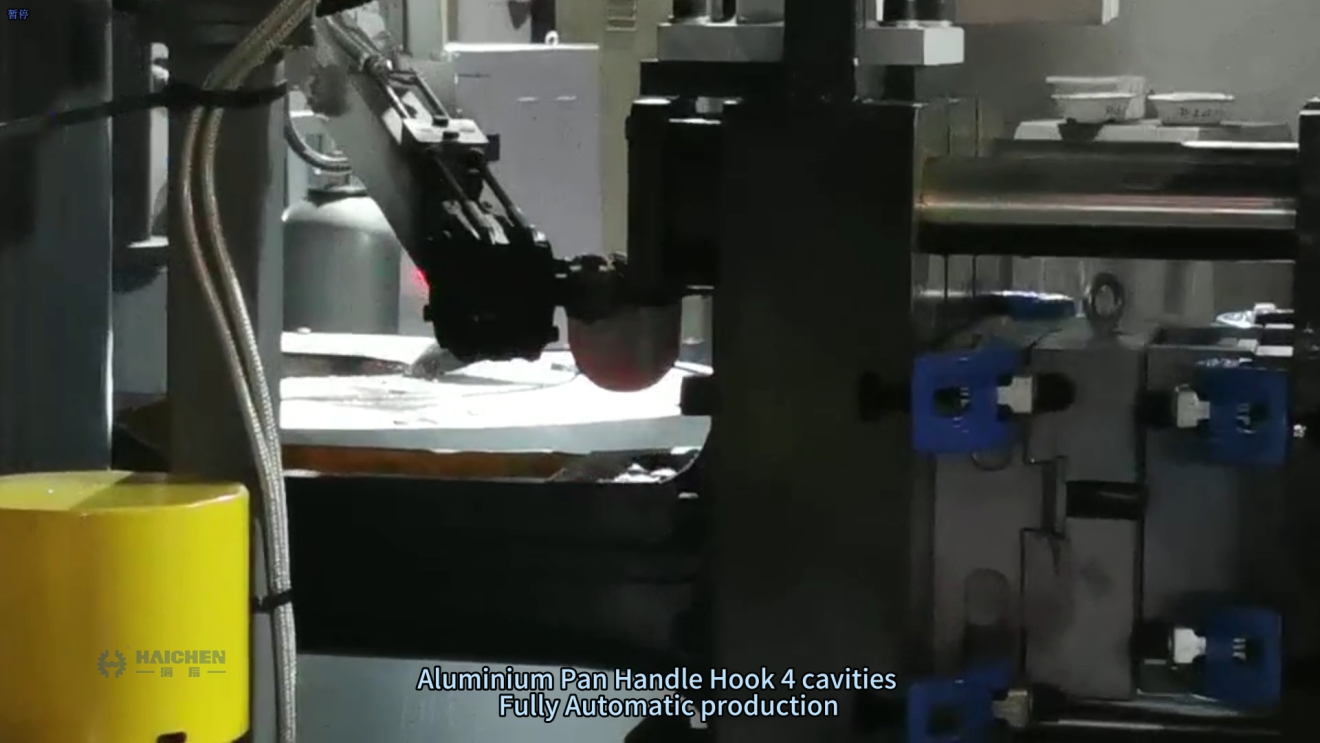

Aluminium fixing part for removal bakelite handle of cookware Frying Pan produced by cold chamber die casting machines.
During production, the appropriate amount of melted aluminium alloy solution is poured into the chamber of the cold chamber die casting machine and pressed into the mould at high pressure to form the shape.
Mould design and selection.
According to the different sizes&shapes and output requirements of the aluminium fixing part for removal bakelite handle of cookware Frying Pan, as well as the symmetrical arrangement of the die-casting product mould, it is usually set into 4-cavity, 6-cavity, 8-cavity and 12-cavity design, which ultimately needs to be determined according to the three-dimensional design of the product and the output requirements.

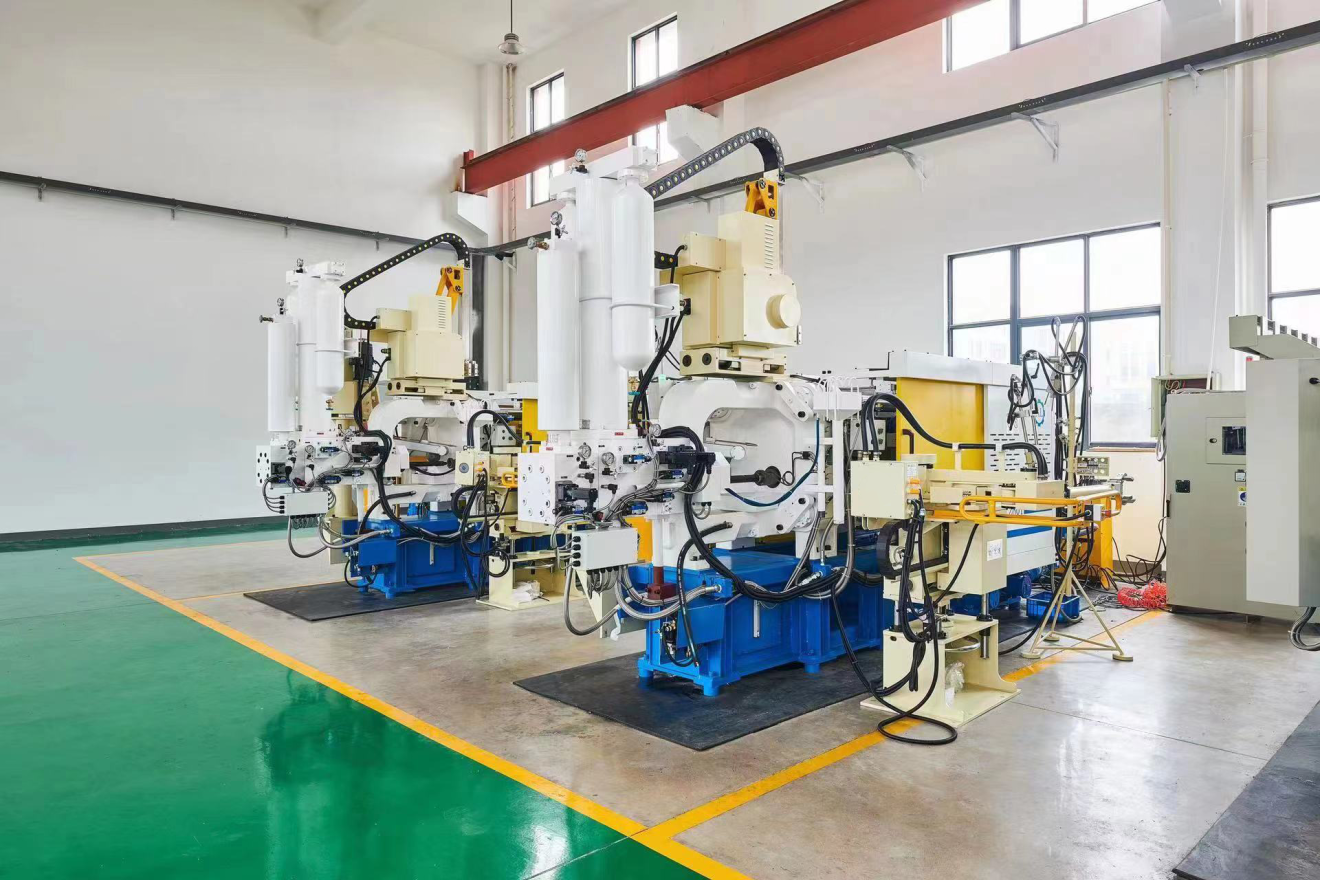

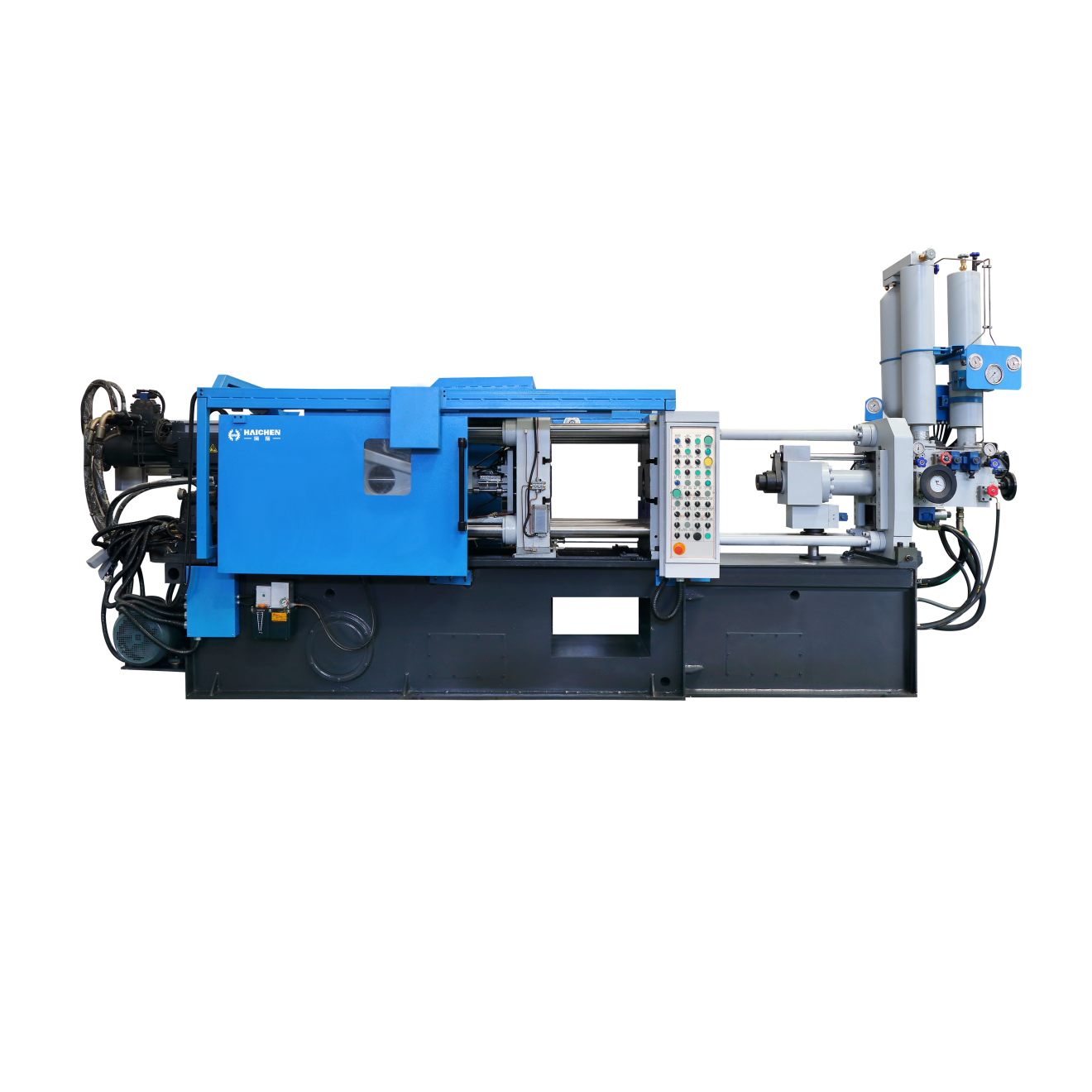

Die casting machine options
Since the tonnage of a cold chamber die casting machine dictates that there is a limit to the total weight of product it can produce at any one time, after you have decided on the target output and completed the mould design, we have the dimensions of the mould. The size of the mould determines the minimum required machine tie bar spacing (mould space).
The total weight of the product in different cavities determines the weight of the melted aluminium alloy material that needs to be pressed into the machine at a time, which can be used as a basis for inverting the corresponding press-shooting capacity of the machine that we need.
The combination of the above two items allows us to choose from our regular Haichen models, as well as customised machines for special shapes and sizes aluminium fixing part for removal bakelite handle of cookware Frying Pan.

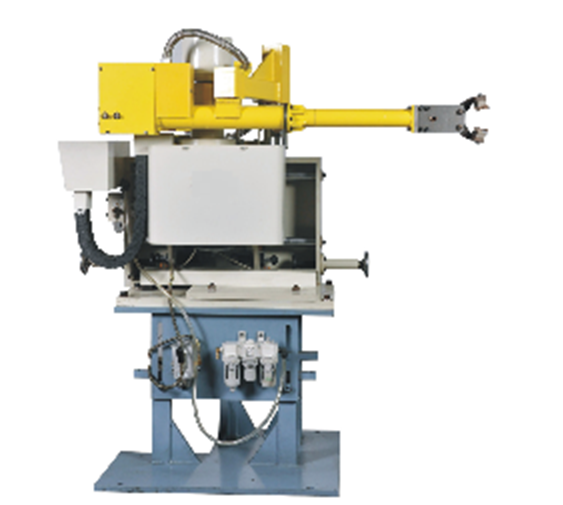

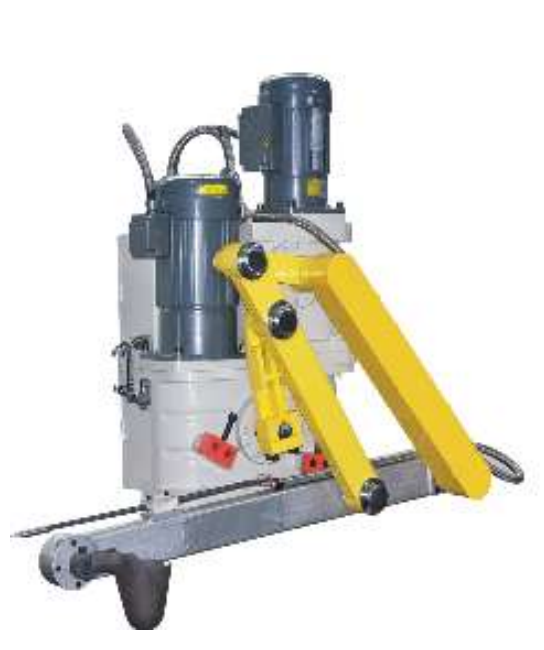

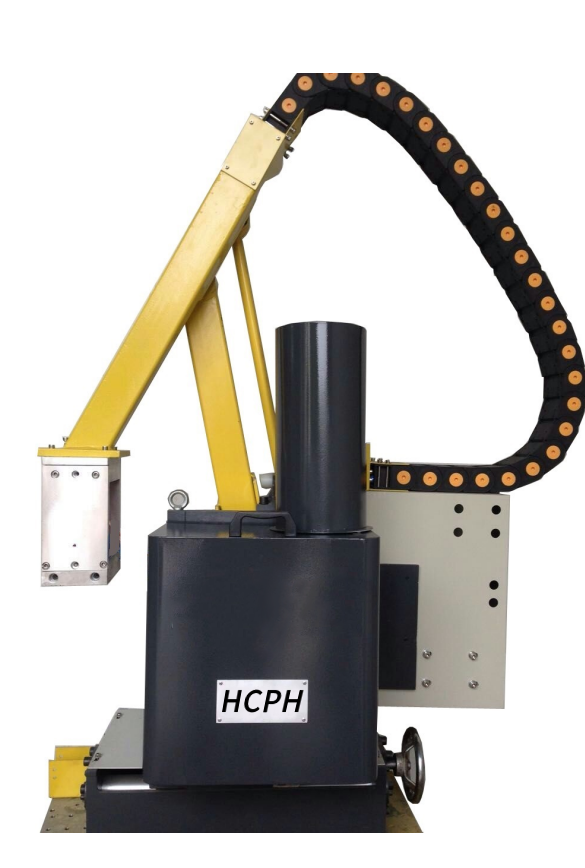

Auxiliary machinery and automated production.
As in the production of many aluminium alloy die casting products, furnaces, ladles, sprayers and extractors are regular auxiliary machines for cold chamber die casting machines. You can decide which step of the auxiliary machine to include to increase the automation of your production line based on your capacity needs.
Haichen’s die casting machines are designed to help you streamline your production process and achieve your goals. With fast delivery times, comprehensive equipment solutions, and reliable customer support, we’re confident that we can help take your business to the next level. Contact us today to learn more about our products and services, and see how we can help transform your manufacturing process.
