Selecting the right injection molding manufacturer for plastic kettles requires:
- Material selection and process control
- Mold design and technology
- Production process parameters
- Integrated “One-Stop” Services
Injection Molding Manufacturer for plastic kettle, it is necessary to comprehensively consider multiple dimensions.
Prioritize manufacturers with proven kettle experience, integrated mold/production services, and robust material testing protocols.
Material selection and process control
Commonly used materials
Plastic kettles mainly use PP (polypropylene), ABS (acrylonitrile-butadiene-styrene copolymer), PETG (modified polyester), Tritan (BPA-free copolyester), etc.
PP has high temperature resistance (decomposition temperature 350°C), suitable for microwave oven and dishwasher use.
ABS needs to pay attention to the injection temperature (200-260°C) to avoid the release of harmful gases such as styrene.
Additive application
If thick-walled design or moving parts are required, fillers or additives that reduce the coefficient of friction should be added.
Environmental friendliness
Tritan is the preferred material for baby products in Europe and America, meeting FDA/LFGB standards.
PETG and SK materials strike a good balance between cost and performance.

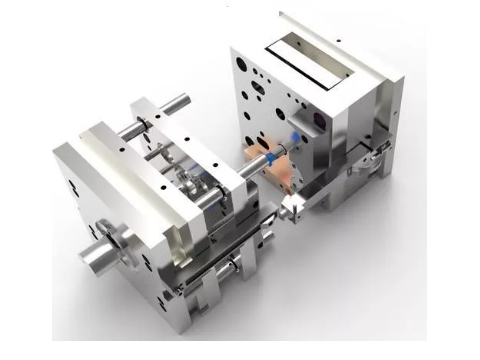

Mold design and technology
Conformal waterways and 3D printing
Advanced molds adopt 3D printing technology to optimize the cooling system, reducing the temperature difference by 50%, shortening the production cycle by 18%, and reducing deformation by 75%.
Structural complexity
It is necessary to support complex structures such as lateral core-pulling and delayed demolding to ensure the curling edge and sealing of the teapot body.
Mold life and precision
Some manufacturers have a mold life of up to 1 million times, with a cavity precision of 0.02mm and a surface roughness of 0.2μm, which is suitable for high-precision requirements.
Production process parameters
Temperature control
The melt temperature and mold temperature directly affect the crystallinity and shrinkage rate.
And need to be matched with the material properties (for example, the injection molding temperature of PP is 200℃).
Injection speed and pressure
High-speed injection can optimize the uniformity of filling, but the risk of flash needs to be balanced.
High pressure improves flow but increases energy consumption.
Cooling time
For every 1mm increase in wall thickness, the cooling time is extended by approximately 20%.
The cycle efficiency needs to be optimized through mold design.
Integrated “One-Stop” Services
Mold-to-Production Integration: Choose manufacturers offering end-to-end services, avoiding communication gaps between mold design and mass production.
Post-Molding Operations: Confirm capabilities for secondary processes like silk printing, soft-touch coating, or assembly of metal components.

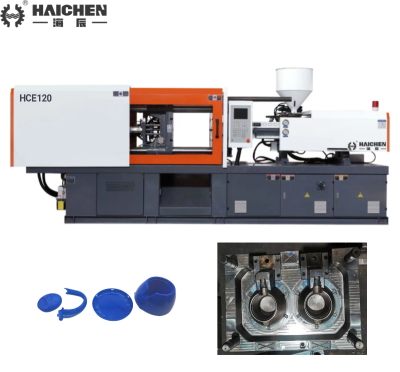

Haichen offers a one-stop service ranging from product drawing design to 3D mold design and injection molding machine selection.
If you need any assistance, please feel free to contact us.
Injection Molding Manufacturer for plastic kettle
- Technical strength and experience
- Equipment advancement
- Quality Management system
- Delivery capacity and supply chain management
- Cost and Cost Performance
- After-sales service and technical support
Technical strength and experience
Manufacturers need to have the ability to design precision molds.
Especially innovative high-speed injection molding systems for thin-walled containers such as plastic water bottles.
Team experience is of crucial importance,Husky’s design team can provide lightweight solutions for preforms and digital operation support.
While Star Rapid realizes the design of complex cooling channels through metal 3D printing technology.
Equipment advancement
For instance, KraussMaffei’s all-electric PX series injection molding machines feature high-precision drive and intelligent energy management.
Quality Management system
Certifications such as ISO 9001, ISO 13485 (for the medical industry), and RoHS are required.
The quality control process should include hardness inspection of mold steel, testing of trial production samples and final packaging inspection.
For example, JTP Mould ensures mold life of 500,000 to 1,000,000 cycles through phased inspection.
Delivery capacity and supply chain management
The stability of the supply chain directly affects the delivery cycle.
Chinese manufacturers such as Haichen ensure rapid response through a global service network covering over 100 countries.
Compress the delivery time of ordinary molds to 35-50 days.
Cost and Cost Performance
Avoid the low-price trap,Low prices may reflect material or process defects.
For example, AL BARSHAA (BPPCO) is renowned for its economy.
But it is necessary to verify whether its quality meets food-grade standards.
Multi-chamber molds can reduce the cost per piece,Howe Company achieves an average daily production capacity of 10,000 pieces through multi-chamber design.
After-sales service and technical support
Star Rapid provides the “one person, one mold” full-process service, with dedicated personnel responsible from design to delivery.
Husky’s value-added services include customer training, system integration and asset management.
