Plastic kettles injection mold design requires comprehensive consideration of a number of aspects, including the structural design of the mold, material selection, molding process parameters, cooling system design, release mechanism and mold optimization, etc.
Injection mold design for Plastic Kettles
Below is a structured guide to help you design an effective injection mold for plastic kettles:
Mold Type Selection
- Single-Cavity Mold: It produces one part per cycle, suitable for prototyping or low-volume production. It has a low cost but is inefficient for mass production.
- Multi-Cavity Mold: It produces multiple identical parts per cycle, ideal for mass production to increase speed and efficiency.
- Hot Runner Mold: It maintains the plastic in a molten state within the mold through a heating system, reducing waste and shortening cycle time. However, it has a higher cost.
Material Selection
- Mold Material: P20 steel is suitable for medium production volumes, while H13 steel is heat-resistant and durable for long production runs. Removed passive voice, shortened the sentence, and made it more direct while keeping the original meaning
- Plastic Material: Choose appropriate thermoplastics based on the requirements of the plastic kettle, such as polypropylene (PP) or ABS. These materials can be repeatedly molded after melting.
Mold Structure Design
- Cavity and Core Design: The cavity forms the outer surface of the plastic kettle, while the core forms the inner surface. They must fit precisely to ensure consistent part dimensions. For plastic kettles, the shape and size can ensure uniform filling of the cavity with plastic.
- Mold Layout: Multi-cavity molds can improve production efficiency, but it is necessary to ensure uniform plastic flow to avoid bubbles or voids.
- Parting Line Design: The parting line is the joint between the two halves of the mold.
Gate and Runner System Design
- Gate Position and Type: The gate is the entry point for plastic into the cavity. Its position and size must ensure uniform plastic flow and avoid weld lines or air pockets. The gate design for the plastic kettle should be optimized based on its shape and size.
- Runner Design: The runner guides the plastic from the injection unit to the cavity. The length and diameter of the runner need to be balanced to ensure uniform plastic flow.
Cooling System Design
- Cooling Channel Layout:Evenly distribute cooling channels in the mold’s high-temperature areas to ensure consistent cooling. In thick-walled sections of the plastic kettle, increase cooling channel density to shorten cooling time.
- Cooling Channel Size and Flow Rate: The channel diameter is usually 6-12 mm. And the flow rate is 1-2 m/s to maximize heat transfer.

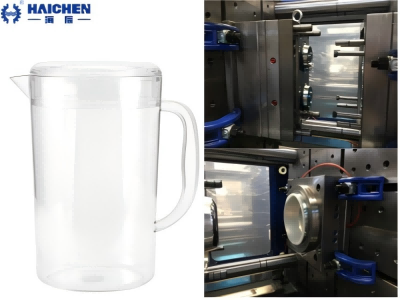

Plastic kettle mold supplier: Haichen Machinery
Haichen has rich experience in producing plastic kettle. Haichen Machinery‘s molds are designed to enable the manufacture of high precision and complex geometries. By precisely controlling mold temperature, injection pressure and cooling time, products with high dimensional accuracy and good surface quality can be produced.
And the molds are designed with a high degree of flexibility to meet diverse design needs. Designers can innovate extensively during the design phase to produce products with complex details and structures.
The injection mold design for plastic kettle requires comprehensive consideration of multiple aspects such as mold structure, material selection, cooling system design, molding process parameters, mold release mechanism and simulation optimization. Through reasonable design and optimization, manufacturers can effectively improve production efficiency and product quality while reducing production costs and mold complexity. During the design process, we recommend combining actual demand and simulation results to continuously optimize the mold structure and meet production requirements.
If there is any demand, welcoem to consult us. We can give you professional advice and solution.
