There are steps for lifting and installation of the cold chamber die casting machine.
- Cold chamber die casting machine conveying
- Prepare the foundation.
- Prepare the leveling feet.
- Unfastening the machine.
- Pull out the half machine from the container.
- Cold chamber die casting machine installation
Cold chamber die casting machines are used in the metal casting process where molten metal is injected into the mold cavity. Once the metal has cooled and solidified, it forms a die casting. This manufacturing method is used to produce metal castings, such as zinc or aluminum die castings.
This article will introduce some precautions for the conveying and installation of cold chamber die casting machines.
Cold chamber die casting machine Conveying
- The cold chamber die asting machine and the electrical case are packed individually, please convey according to the indication on boxes.
- Please choose proper way to hoist the old chamber die asting machine in term of lifting drawing or put rollers under the machine seat after opening box.
- Please check appearance of the machine and attachments according to the packing list.
- Impacting, shaking and over inclining are forbidden in course conveying.
- Stack soft cushion between steel rope and the machine, assure the intensity of the steel rope is enough.
Prepare the foundation.

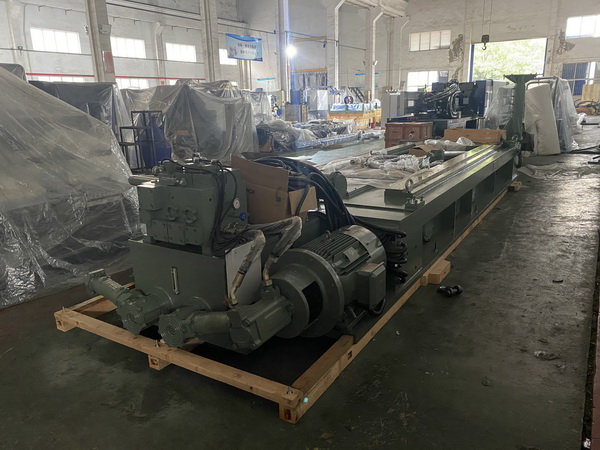

Prepare the foundation according to the model of cold chamber die casting machine. followed photo is for model-HCD1080-C.

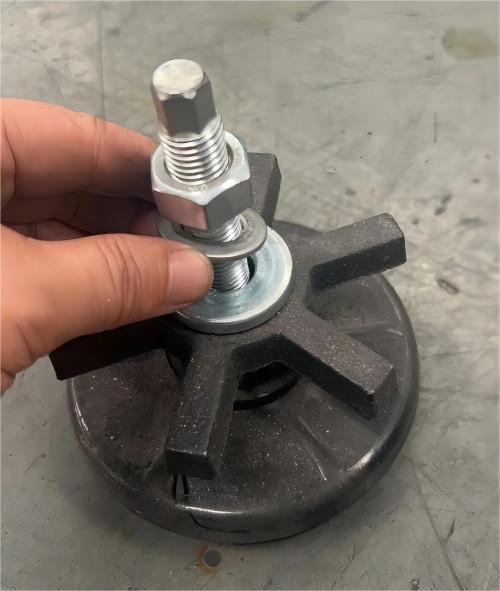

Prepare the leveling feet.
Bdfore put on the foundation, we will prepare level feet for cold chamber die casting machine.

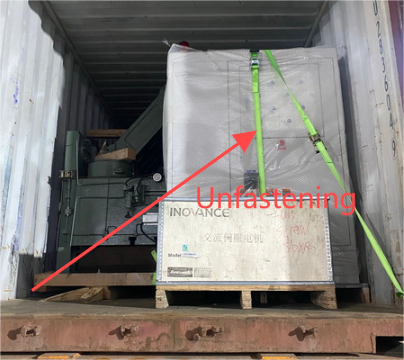

Unfastening the machine.
Unfasten rope, then we can unload the cold chamber die casting machine.

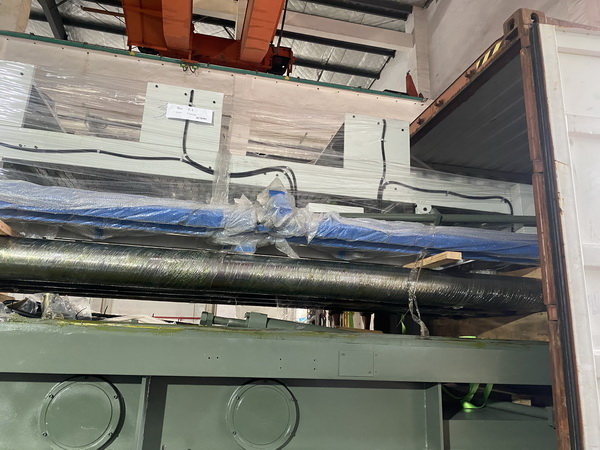

Pull out the half machine from the container.
Pull out the half machine is for satefy of the machine.
Cold chamber die casting machine Installation
When installation machine, should consider to arrange channel of cooling water and electricity. There is enough space around machine. Generally, it keeps empty space 1.5-2.m. the distance is over 2m between cable and oven.
Ensuring the optimal performance and longevity of any machine is critical to its overall success and longevity. By following a few basic guidelines, it’s easy to create an environment that promotes efficiency, safety, and productivity. Important considerations when installing a machine, with a focus on providing a clean, well-ventilated, well-lit space key factors will help make informed decisions that will maximize its potential.
It should comply national and local safety, sanitation, environmental protection codes when installing.
Sufficient space for machines, materials and products
Ensuring that there is enough space for all the parts involved is key to an efficient workflow.
There must be enough space around the machine, and leave at lest 2m in front the machine, and other three sides should leave at lest 1m in order to convenient overhauling, illuming and ventilation.
Ensure floor stability
Base of machine seat should tally with the drawing. The concrete should be high quality. The surface should be smooth. Please check with gradienter.
Attention: Screw down bolts after the concrete is hard.
Arrange well the cooling and power pipe work. The cable should leave away fused metal.
The cable should leave away melting furnace. The best way is put the cable into trench.
The power supply total capacity should more than 21kVA.
Measure installation level on guide rail: Longitudinal: 0.2/1000 Transverse: 0.2/1000
Earth the machine by electricians before power on in order to secure safety.
There are no uncovered and insulation failed electrification parts, wire and elements.
The pipe work should neither be used as ladder and footplate, nor underprop, there should no pull on pipe and connections.
Self-contained melting furnace by the client should apart from accumulator to prevent from heat radiation.
Prioritize electrical safety
In order to prevent electrical hazards and protect people and machines from potential electrical accidents, the grounding of machines should be a top priority. Effective grounding reduces the risk of electrical failure while preventing damage to both machines and potential injury to the operator.
Conclusion
Haichen can provide cold chamber die casting machine to produce various shapes of moulds. Haichen not only provides cold chamber die casting machines, but also supports the custom configuration of various auxiliary machines to increase the automation capacity of the production line.
These are some of the issues that should be noted when convey and install die casting machine. If there is more you want to know, please feel free to consult us.
