Plastic stools are made by plastic injection molding machine.The process of manufacturing plastic stools usually involves the injection molding method.
This process involves heating plastic pellets to a molten state and then injecting them through a mold.
Where they are cooled to form the desired shape.
For example, plastic stools are a typical example of early industrial manufacturing using Polypropylene (PP).
These stools have an improved seating feel and a variety of base options for different usage scenarios.
In addition, plastic stools can also be manufactured through other plastic molding techniques such as blow molding or extrusion. These methods also rely on molds to form the final product. In some cases, plastic stools may also incorporate fiberglass or other additives to enhance their strength and durability.
The manufacturing process for plastic stools relies heavily on injection molding techniques.
Where steps such as heating, injection, and cooling are used to form the final product.
Components of plastic stool injection molding line
The components of the plastic stool injection molding production line mainly include the following key parts:
- Injection machine
- Mold system
- Control systems
- Auxiliary equipment
- Raw material handling equipment
Injection machine
This is the core equipment of the whole production line, which is responsible for injecting the plastic in a molten state into the mould.

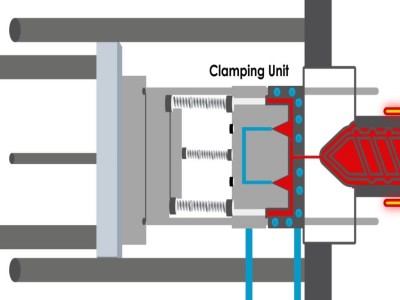

The injection machine usually consists of an injection unit and a mould closing unit.
The injection unit includes a barrel, screw, nozzle, etc.,
Which is fot the heat and melt the plastic and inject it into the mould; the mould closing unit is used to close the mold and ensure that the plastic is formed inside the mold.

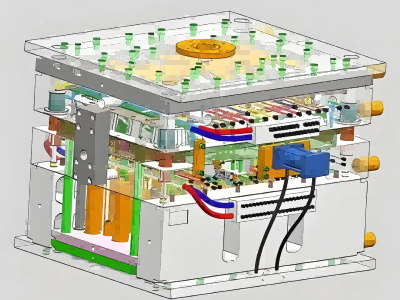

Mold system
Mold is the key component of injection molding, which usually consists of two halves of high-strength metal parts, including the cavity side and core side.
The design and manufacturing accuracy of the mould directly affects the quality and appearance of the final product.
Heating and cooling system:
The injection molding process requires heating the plastic to make it melt and cooling it in the mould to solidify it.
The heating system usually includes heating coils and electric heaters.
While the cooling system is realized by water cooling or other means.
Control systems
Control systems are used to regulate and monitor parameters such as temperature, pressure, and speed during the injection molding process to ensure consistent product quality.
This includes speed and pressure control systems as well as temperature control systems.
Auxiliary equipment
Such as manipulators and conveying systems are used to automate operations, increase productivity, and reduce manual intervention.
This equipment can automatically feed raw materials into the injection molding machine, take out the molded product, and carry out subsequent processing.
Raw material handling equipment
Including mixers, dryers, etc.,
Which are used to mix and pre-treat plastic raw materials to ensure that they can be melted and molded properly during the injection molding process.
Through the concerted work of these components, the plastic stool injection molding line can produce high-quality plastic stool products efficiently and stably.
How to choose the right plastic stool injection molding machine
Choosing the right injection moulding machine for plastic stools requires comprehensive consideration of several factors.
Including mould size, plastic properties, product size, and other information, and based on this information, choosing the right injection molding machine
- Collect relevant information
- Technical parameters for reference
- Equipment Configuration
- Other considerations
Collect relevant information
Mould size
Know the specific dimensions of the stool mould, including length, width, and height.
Plastic properties
Determine the type of plastic used and its properties, such as fluidity, thermal sensitivity, etc.
Product size
The specific size of the stool, such as diameter, thickness, etc..
Selection steps
Choose the right type: Select the right type of injection moulding machine to ensure that it can accommodate the mould and meet production requirements.
Put down
The clamping force of the injection moulding machine must be greater than the maximum opening force of the mould to ensure that the mould will not crack during the injection process.
Take it out
The opening stroke of the machine must be large enough to allow the mould to open and remove the finished product.
Locking
The clamping force of the injection moulding machine should be large enough to ensure that the mould will not loosen during the injection process.
Shoot well
The maximum injection volume of the injection moulding machine should be greater than the actual injection volume of the product to ensure that the mould can be completely filled.
Shoot well
The injection pressure and speed of the injection moulding machine should be able to ensure product quality and consistency.
Fast injection
The injection speed of the injection moulding machine should be able to shorten the moulding cycle and improve production efficiency.
Technical parameters for reference
Injection capacity
Choose the appropriate injection capacity according to the volume of the stool.
If the stool has a larger volume, you need to choose an injection moulding machine with larger injection capacity.
Screw diameter and speed
Screw diameter and speed will affect the plasticising capacity and moulding time.
For example, larger screw diameters and higher speeds can improve plasticising efficiency.
Clamping force
The clamping force should be greater than the maximum opening force of the mould to ensure that the mould will not crack during the injection process.
Equipment Configuration
Servo motor drive
Servo motor drive can improve the precision and response speed of the injection moulding machine, which is suitable for products requiring high precision moulding.
Mould thermostat and lubrication system: The built-in mould thermostat can keep the temperature of the mould constant, and the lubrication system can ensure that the mold is well-lubricated and reduce wear and tear.
Hot runner system
If you need to make color changes or handle complex moulds, you can choose an injection moulding machine with a hot runner system, which can improve moulding efficiency and quality.
Other considerations
Relationship between injection rate and plasticising capacity
The injection rate should be matched with the plasticising capacity to avoid product defects caused by insufficient plasticising.
Relationship between injection pressure and clamping force
The injection pressure should be greater than the clamping force to ensure that the mould will not be deformed during the injection process.
Ratio of actual injection volume to maximum injection volume
The actual injection volume should be close to the maximum injection volume to improve the moulding efficiency.
With the above steps and considerations, you can effectively choose the right plastic stool injection moulding machine to ensure the production process goes smoothly and get high-quality products.

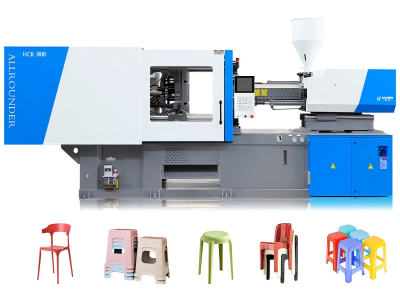

Choose Haichen plastic stool injection molding machine to solve all your plastic stool production problems
Haichen injection molding machines can provide effective solutions for the production of plastic stools. Firstly, Haichen injection molding machines feature a high degree of automation, which can significantly increase productivity and reduce labor costs.
This automation allows the injection molding machine to run continuously with minimal human intervention, ensuring consistent part quality and high productivity.
Haichen injection molding machines are able to accommodate products of different shapes and sizes, providing production versatility.
This is important for diverse products such as plastic stools.
In addition, injection molded parts have good dimensional tolerances and can be easily shaped and removed from the mold without damage.
Haichen injection molding machines also have the advantage of energy saving, as the servo motors directly drive the actuators.
Resulting in high energy conversion efficiency and significant energy savings.
This can effectively reduce the production cost for enterprises that produce plastic stools on a large scale.
In addition, Haichen injection molding machines are designed with flexibility and adaptability in mind.
HCK series of injection molding machines are designed for the production of deep-cavity products such as square plastic stools.
With larger opening strokes and optimized clamping units.
This provides manufacturers with unparalleled flexibility to accommodate larger molds.
Haichen injection molding machines not only solve the efficiency and quality problems of plastic stool production but also further optimize the production process through their energy-efficient and flexible design.
Therefore, it can be said with certainty that Haichen injection molding machines can provide comprehensive support and solutions for the production of plastic stools.
You are welcome to call or email us for more details and we will be happy to support you accordingly.
