Clothes peg mold design is a comprehensive project that involves material selection, process flow, mold structure, and production efficiency.
Plastic clothes peg mold design
Designing a plastic clothes peg mold involves several key steps, from conceptualization to final production. Below is a structured approach to designing an efficient and functional mold for plastic clothes pegs.
Material Selection and Modification
Polypropylene (PP) is the primary material for plastic clothespins due to its excellent flexibility and cost-effectiveness. To enhance the durability of the clothespins, the plastic properties can be optimized through compounding and modification. Additionally, UV stabilizers can be added to prolong the lifespan of the clothespins.
Mold Design
- Parting Line Design: The parting line is a crucial aspect of mold design, directly affecting the quality of the plastic part and the lifespan of the mold. Common parting line designs include horizontal and inclined parting lines.
- Gate System Design: The gate is the channel through which plastic flows into the mold cavity. Its design should consider the plastic’s flowability, cooling rate, and molding accuracy. A well-designed gate can reduce molding defects and improve production efficiency.
- Cooling System Design: The cooling system is vital for mold temperature control, which can shorten the molding cycle and extend mold life.

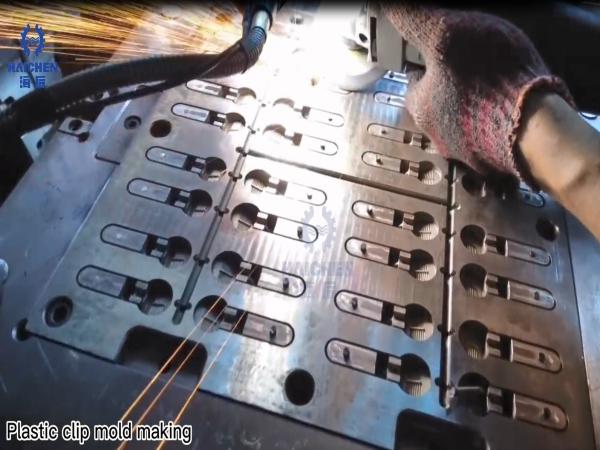

- Multi-Cavity Mold Design: To increase production efficiency, multi-cavity mold designs can adopt, such as a 12-cavity mold, which helps reduce the cost per unit.
Mold Structure Features
- All-Plastic Structure: Modern plastic clothespin molds often feature an all-plastic structure, eliminating the need for metal springs. This reduces production costs and enhances mold life.
- Insert Molding Design: This design simplifies the mold structure while ensuring the precision and surface quality of the plastic part.
- Ejection System Design: The ejection system must ensure smooth demolding of the plastic part without damaging its surface.
Technical Tools and Software Support
Process Flow and Equipment
- Raw Material Preprocessing: Mixing PP and PS plastic granules with color masterbatches and calcium carbonate.
- Injection Molding: Heating the mixed plastic granules to around 210°C and injecting them into the mold using an injection molding machine.
- Secondary Injection Molding: Some clothespins require secondary injection molding to connect ropes or other components.
- Assembly and Inspection: Assembling the injection-molded semi-finished products with metal accessories and conducting quality inspections.
Plastic clothes peg mold supplier：Haichen Machinery

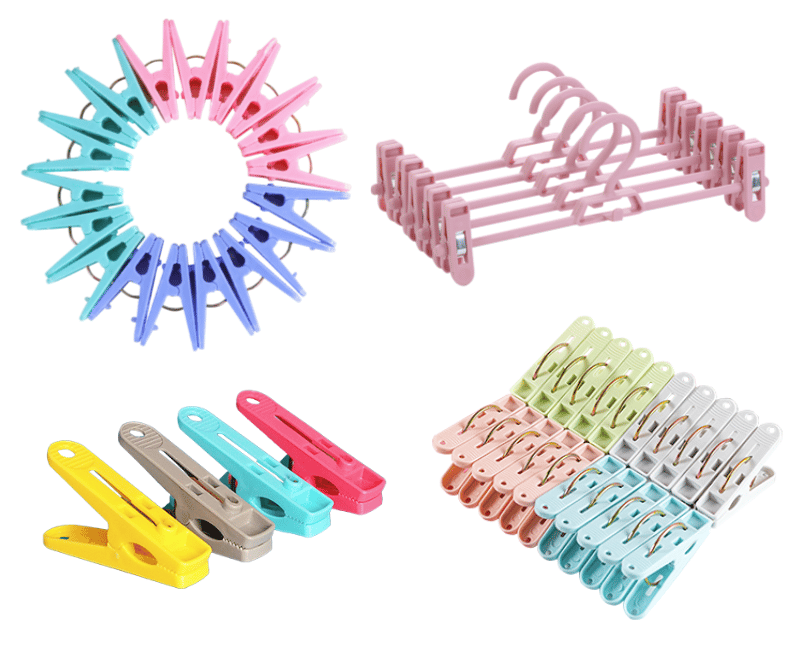

Haichen is a plastic clothespin making machine manufacturer, serving international plastic clothespin manufacturers. Our plastic clothespin making machine can produce various types and models of plastic clothespins. For example: plastic clothes hangers with clips, large plastic clothespins, cloth plastic clips, plastic colored clothespins, etc.
We have rich experience in designing and manufacturing durable plastic clothes peg molds. We offer custom mold designs for different types of clothes pegs (spring-loaded, hinged, or one-piece designs). If there is any demand for clothes peg mold, welcome to consult us.
Plastic clothespin mold design requires a comprehensive consideration of material properties, process flow, mold structure, and market demand. By optimizing design and adopting advanced manufacturing technologies, it is possible to achieve efficient, low-cost, and environmentally friendly production goals.
